Exploded View

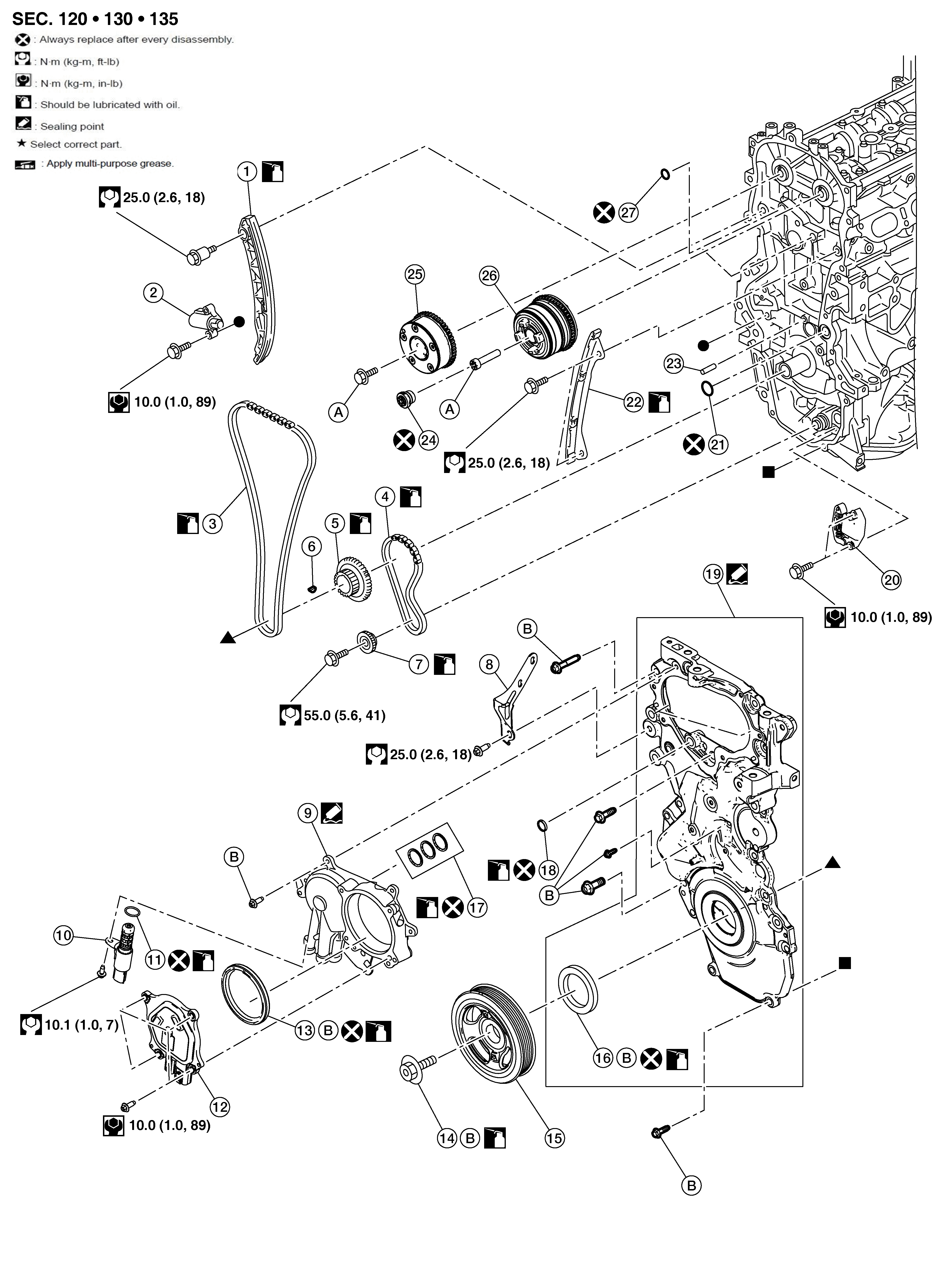

Fig 1: Timing Chain Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Slack guide	2.	Timing chain tensioner	3.	Timing chain
4.	Balancer unit timing chain	5.	Crankshaft sprocket	6.	Crankshaft key
7.	Balancer unit sprocket	8.	Air fuel ratio (A/F) sensor	9.	Housing
10.	Exhaust valve timing control solenoid valve	11.	O-ring	12.	Electric intake valve timing control actuator
13.	Camshaft sprocket (INT) oil seal	14.	Crankshaft pulley bolt	15.	Crankshaft pulley
16.	Front oil seal	17.	O-ring	18.	Filter
19.	Front cover	20.	Balancer unit timing chain tensioner	21.	O-ring
22.	Timing chain tension guide	23.	Timing chain oil jet	24.	Electric intake valve timing control actuator target
25.	Camshaft sprocket (EXH)	26.	Camshaft sprocket (INT)	27.	O-ring
A.	Refer to Removal and Installation .	B.	Refer to Removal and Installation .
