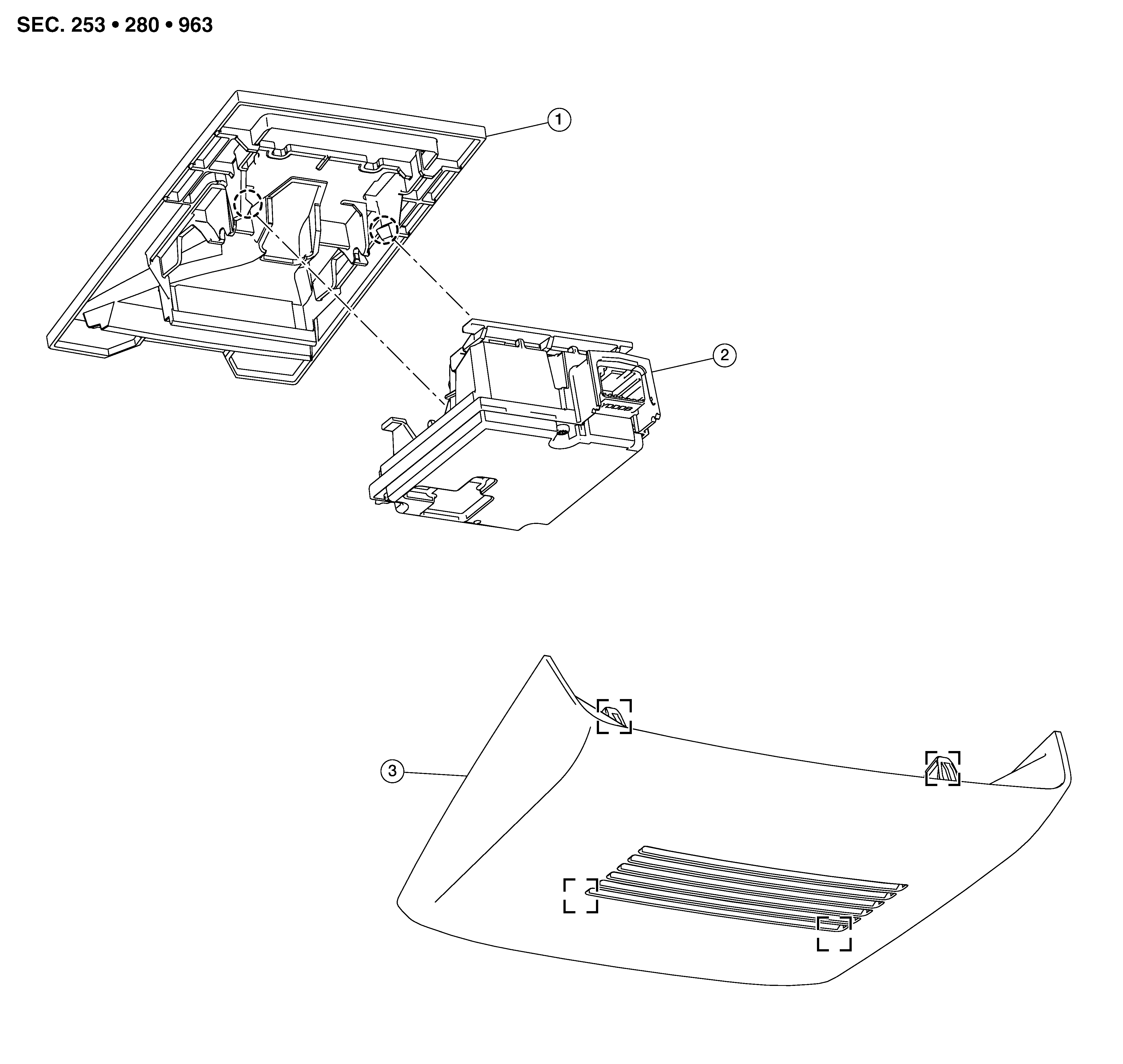

Exploded View

GNSDB115193Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front camera unit bracket

2.

Front camera unit

3.

Front camera cover

SYMBOL

Metal clip

SYMBOL

Pawl
