Exploded View

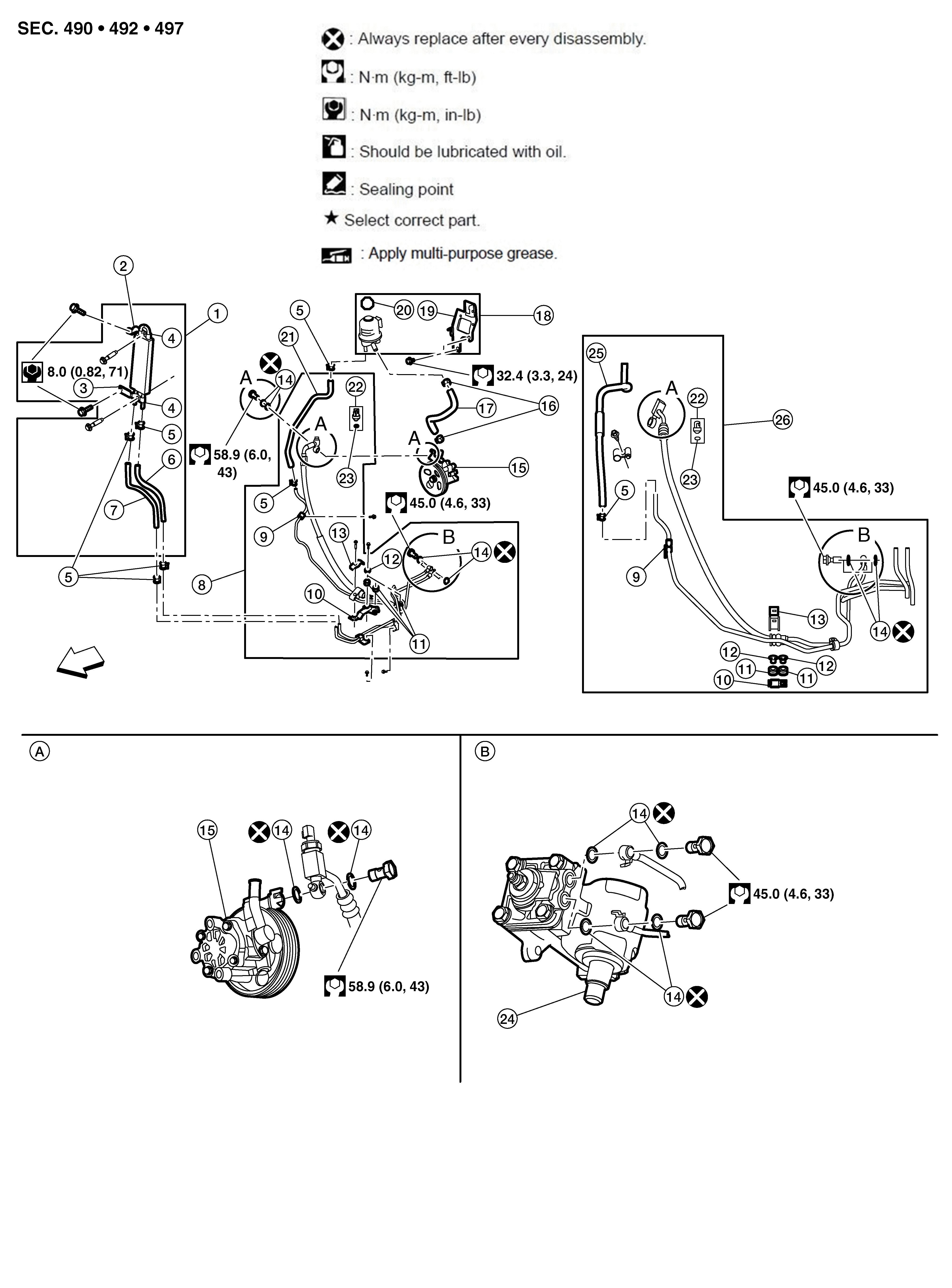

Fig 1: Hydraulic Line Replacement Components With Torque Specifications - XD Models

GNSAWGIA0509Z-509

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Power steering oil cooler	2.	Bracket, upper (rear)	3.	Bracket, lower (rear)
4.	Bracket, front	5.	Return hose clamp	6.	Power steering oil cooler inlet hose
7.	Power steering oil cooler outlet hose	8.	Power steering hose assembly (early production)	9.	Power steering pipe clamp
10.	Power steering hose assembly clamp (lower)	11.	Clamp insulator bushing	12.	Insulator bushing insert
13.	Power steering hose clamp (upper)	14.	Copper sealing washer	15.	Power steering oil pump
16.	Power steering suction hose clamp	17.	Power steering suction hose	18.	Power steering oil reservoir
19.	Power steering oil reservoir bracket	20.	Power steering oil reservoir cap	21.	Power steering oil return hose (early production)
22.	Power steering pressure switch	23.	O-ring	24.	Power steering box
25.	Power steering oil return hose (late production)	26.	Power steering hose assembly (late production)		Front

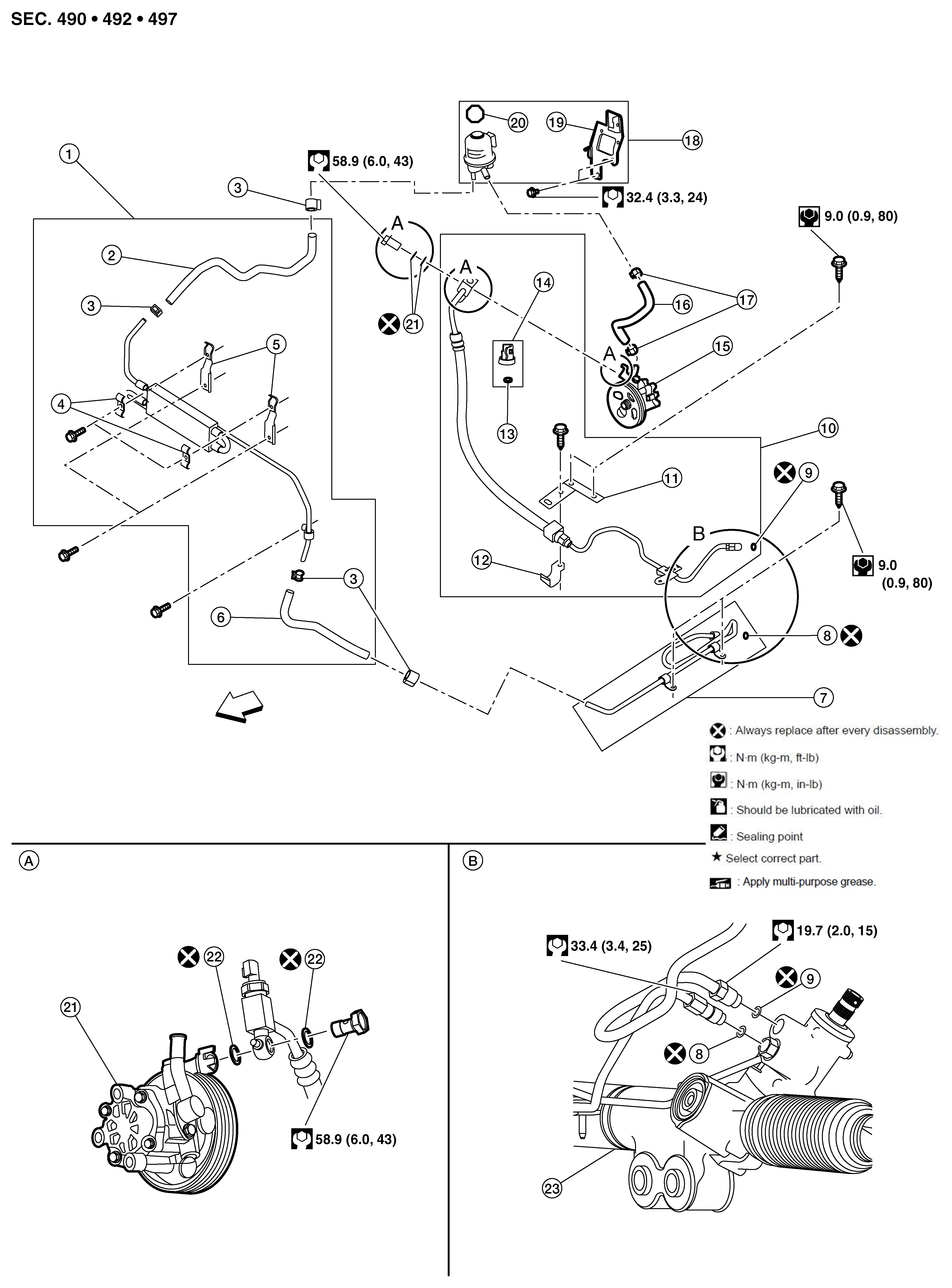

Fig 2: Hydraulic Line Replacement Components With Torque Specifications - Non-XD Models

GNSAWGIA0473Z-473

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Power steering oil cooler assembly	2.	Power steering oil cooler outlet hose	3.	Clamp
4.	Power steering oil cooler bracket (front)	5.	Power steering oil cooler bracket (rear)	6.	Power steering oil cooler inlet hose
7.	Power steering oil return pipe assembly	8.	O-ring	9.	O-ring
10.	Power steering oil pressure hose assembly	11.	Power steering pressure hose bracket (upper)	12.	Power steering pressure hose bracket (lower)
13.	O-ring	14.	Power steering pressure switch	15.	Power steering oil pump
16.	Power steering suction hose	17.	Clamp	18.	Power steering oil reservoir assembly
19.	Power steering oil reservoir bracket	20.	Power steering oil reservoir cap	21.	Power steering oil pump
22.	Copper sealing washer	23.	Power steering gear		Front
