Exploded View

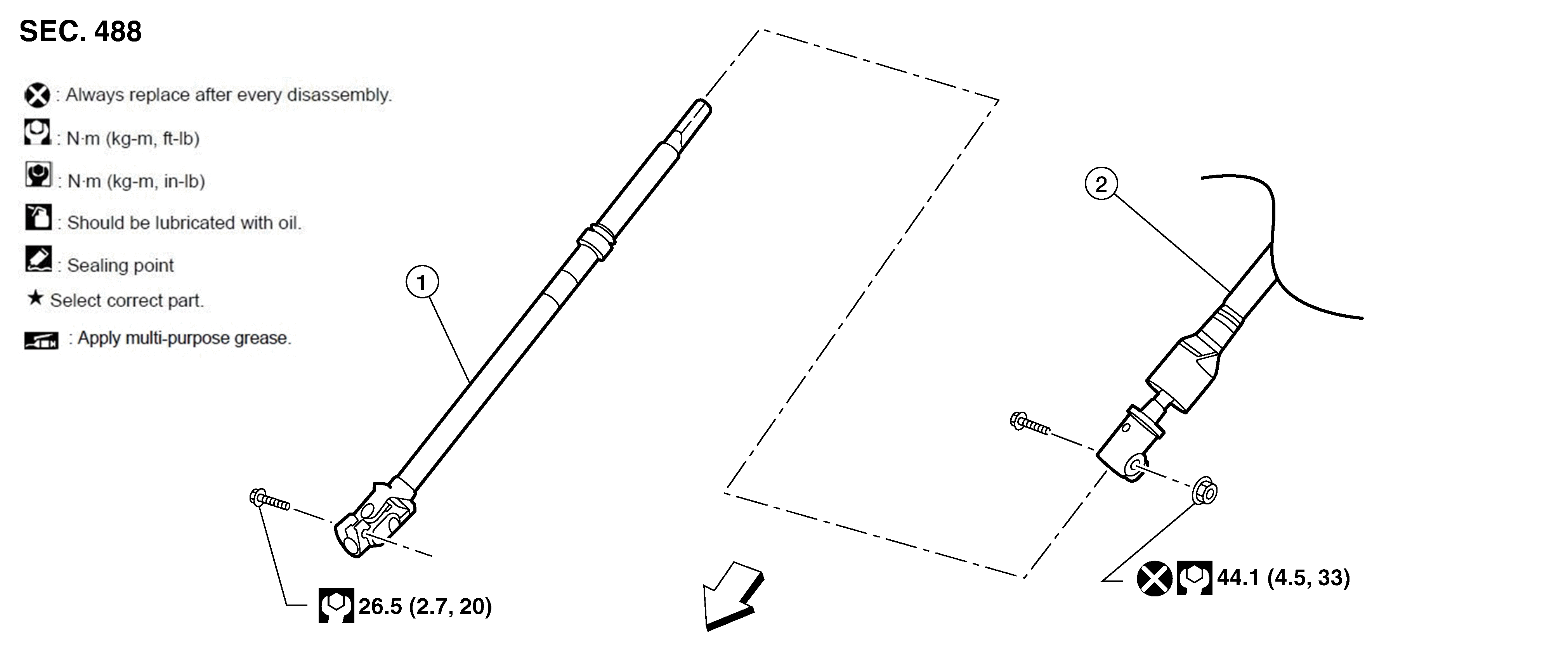

Fig 1: Lower Joint Components With Torque Specifications - XD Models
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Lower joint
2.
Intermediate shaft
Front

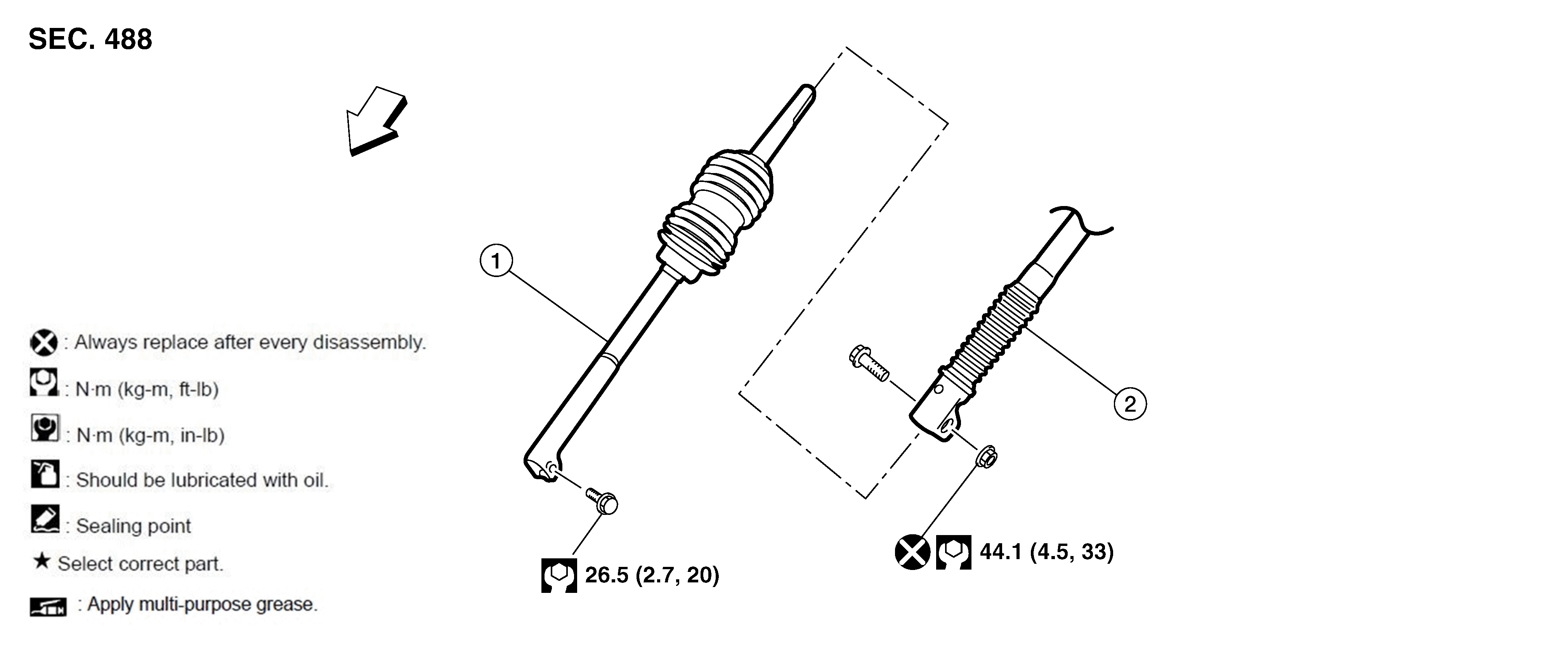

Fig 2: Lower Joint Components With Torque Specifications - Non-XD Models
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Lower joint
2.
Intermediate shaft
Front
