Exploded View

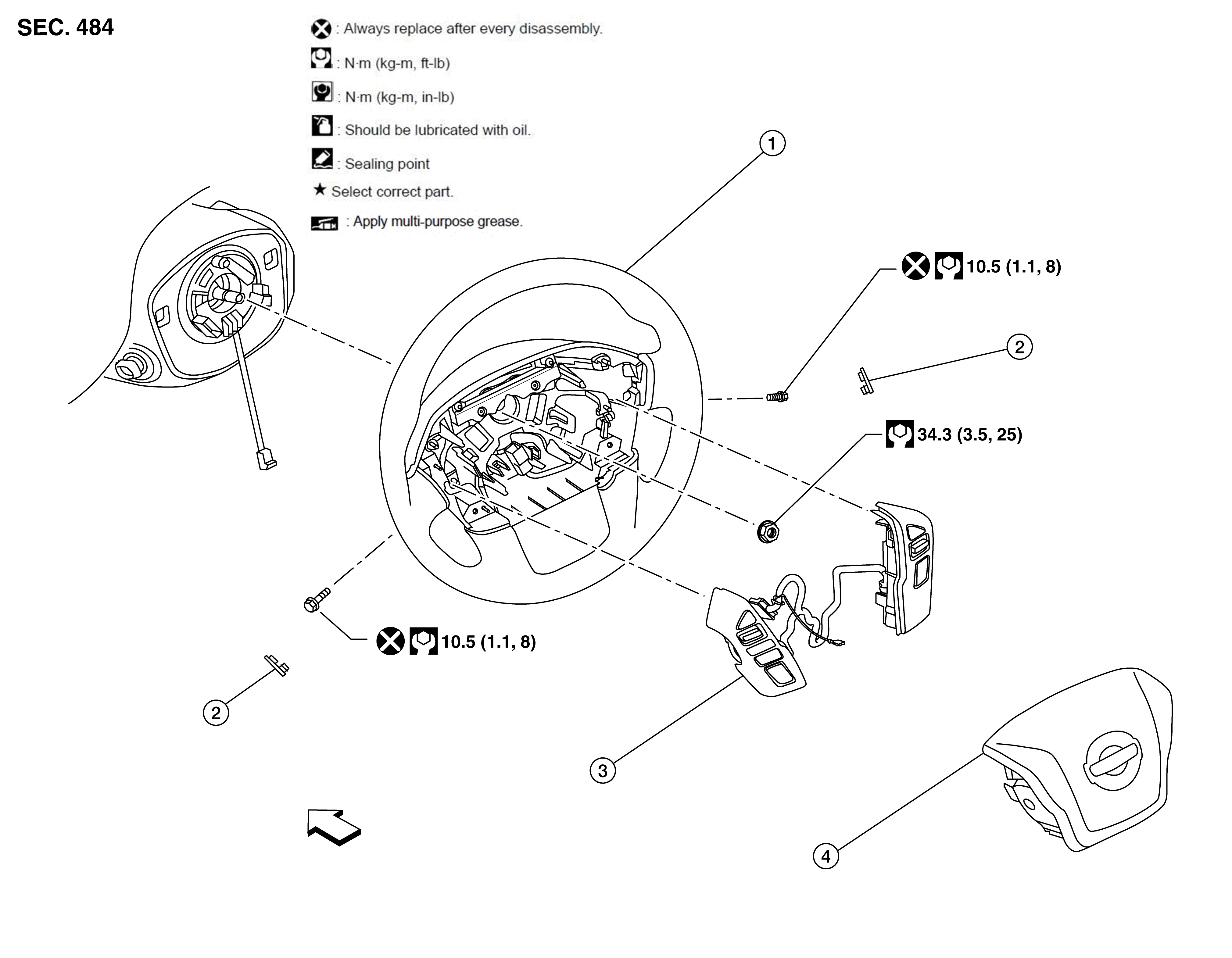

Fig 1: Steering Wheel Components With Torque Specifications
GNSAWGIA0416Z-416Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering wheel

2.

Cover

3.

Steering switches

4.

Driver air bag module

SYMBOL

Front
