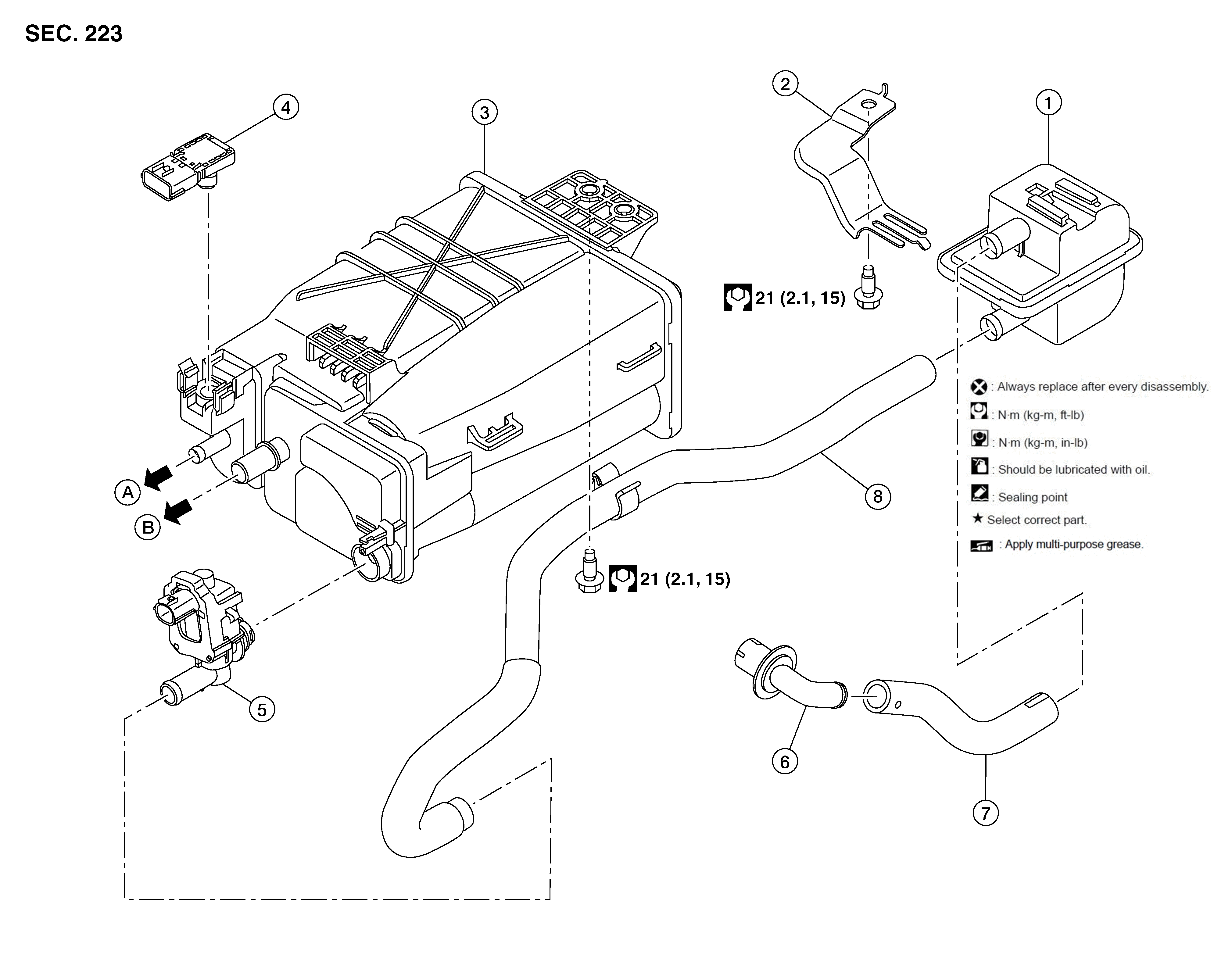

Exploded View
|
1. |
EVAP canister filter |
2. |
EVAP canister filter bracket |
3. |
EVAP canister |
|
4. |
EVAP control system pressure sensor |
5. |
EVAP canister vent control valve |
6. |
EVAP canister filter hose frame connector |
|
7. |
EVAP canister filter hose |
8. |
EVAP canister vent control valve hose |
A. |
To centralized under-floor piping |
|
B. |
To fuel tank. Refer to Exploded View . |
