Hood Switch

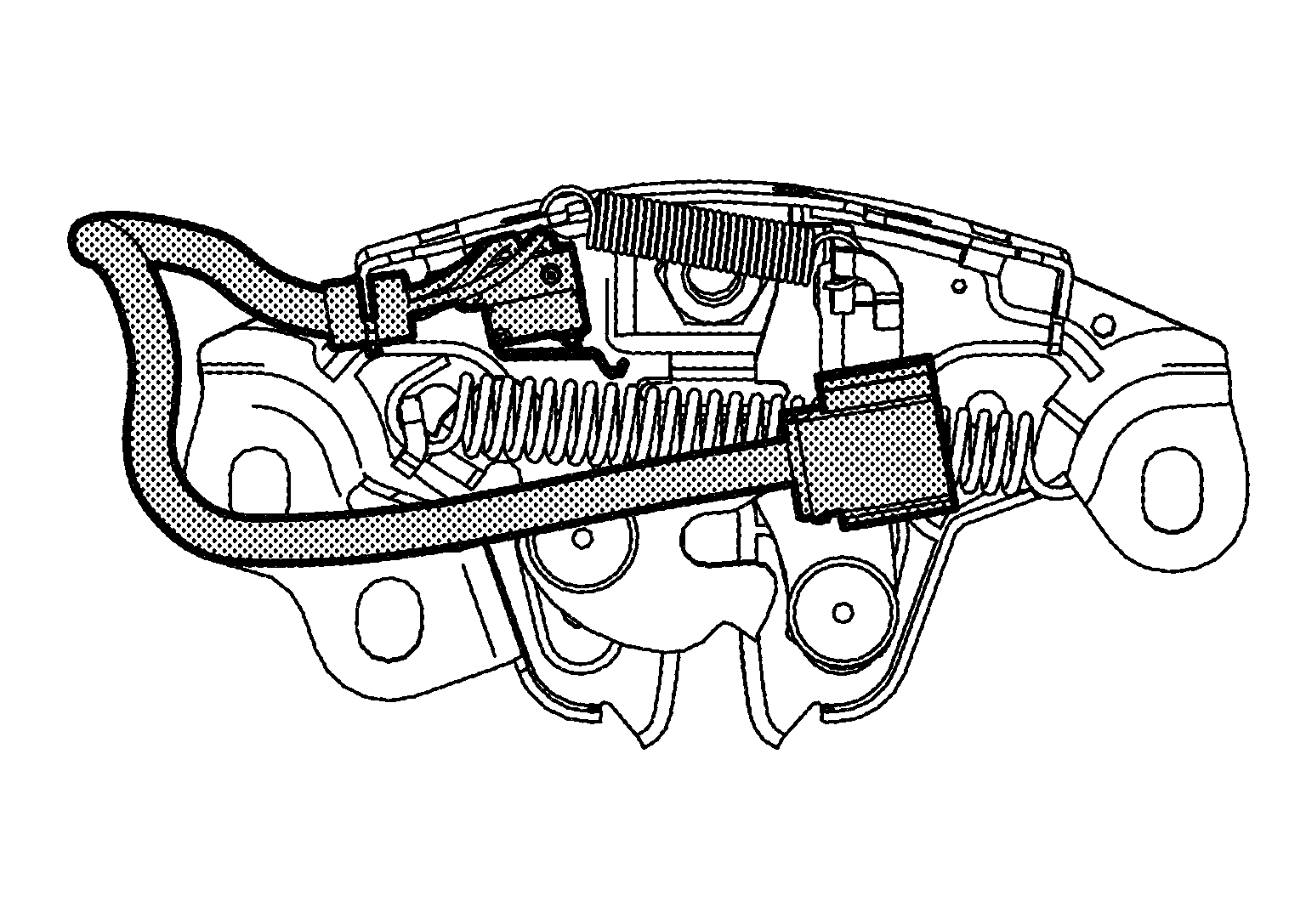

Hood switch is integrated into hood lock assembly LH. It is located under the front of hood.
Hood switch detects that hood is open/closed, and then transmits the signal to IPDM E/R. IPDM E/R transmits hood switch signal to BCM via CAN communication.

Courtesy of NISSAN NORTH AMERICA, INC.
