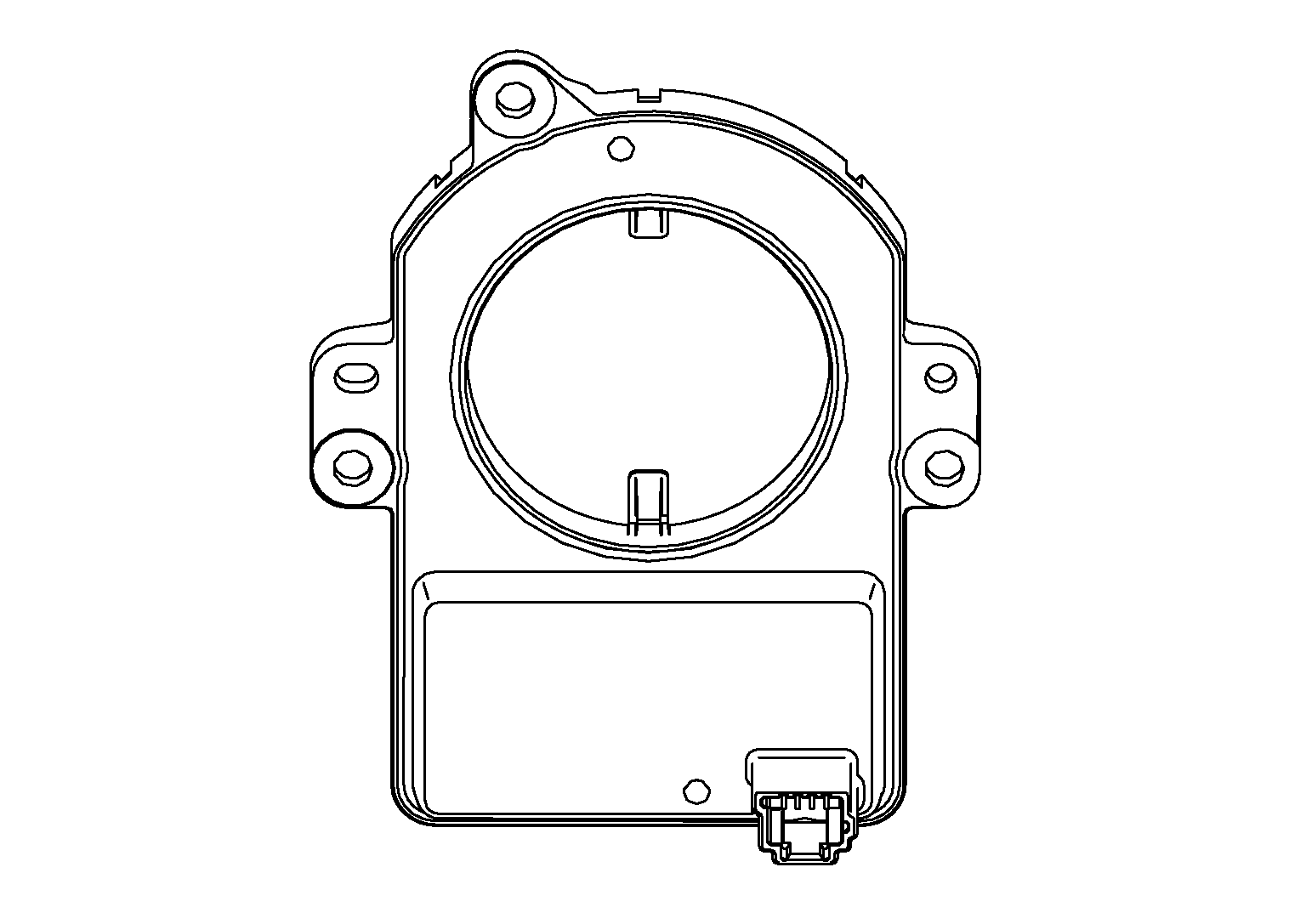

Chassis Control Module (with built in Steering Angle Sensor)
- The chassis control module (with built in steering angle sensor) is located behind the steering wheel.
- Detects the following information and transmits steering angle signal to ABS actuator and electric unit (control unit) via CAN communication:
- Steering angle sensor malfunction signal
- Steering wheel rotation amount
- Steering wheel rotation angular velocity
- Steering wheel rotation direction
- Intelligent trace control signal
