Exploded View

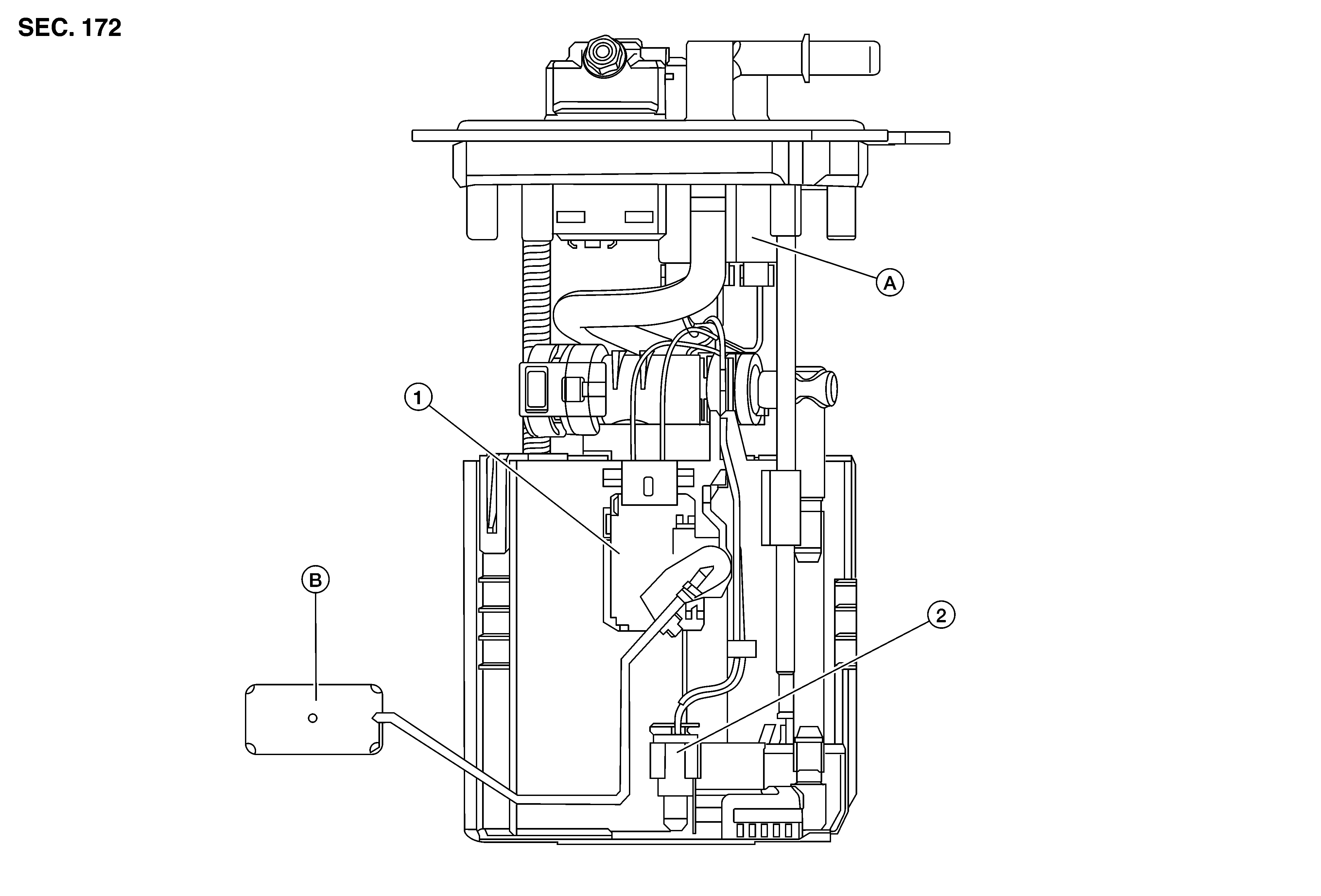

Fig 1: Fuel Level Sensor Unit
GNSDB118705Courtesy of NISSAN NORTH AMERICA, INC.

1.

Level sensor unit module

2.

Fuel temperature sensor

A.

Harness connector

B.

Float arm assembly
