Nissan-Datsun
>>
2022
>>
Pathfinder SL, FWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Ignition Switch/Steering Lock
>>
Security Control System
>>
Removal And Installation
>>
Push-Button Ignition Switch
>>
Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

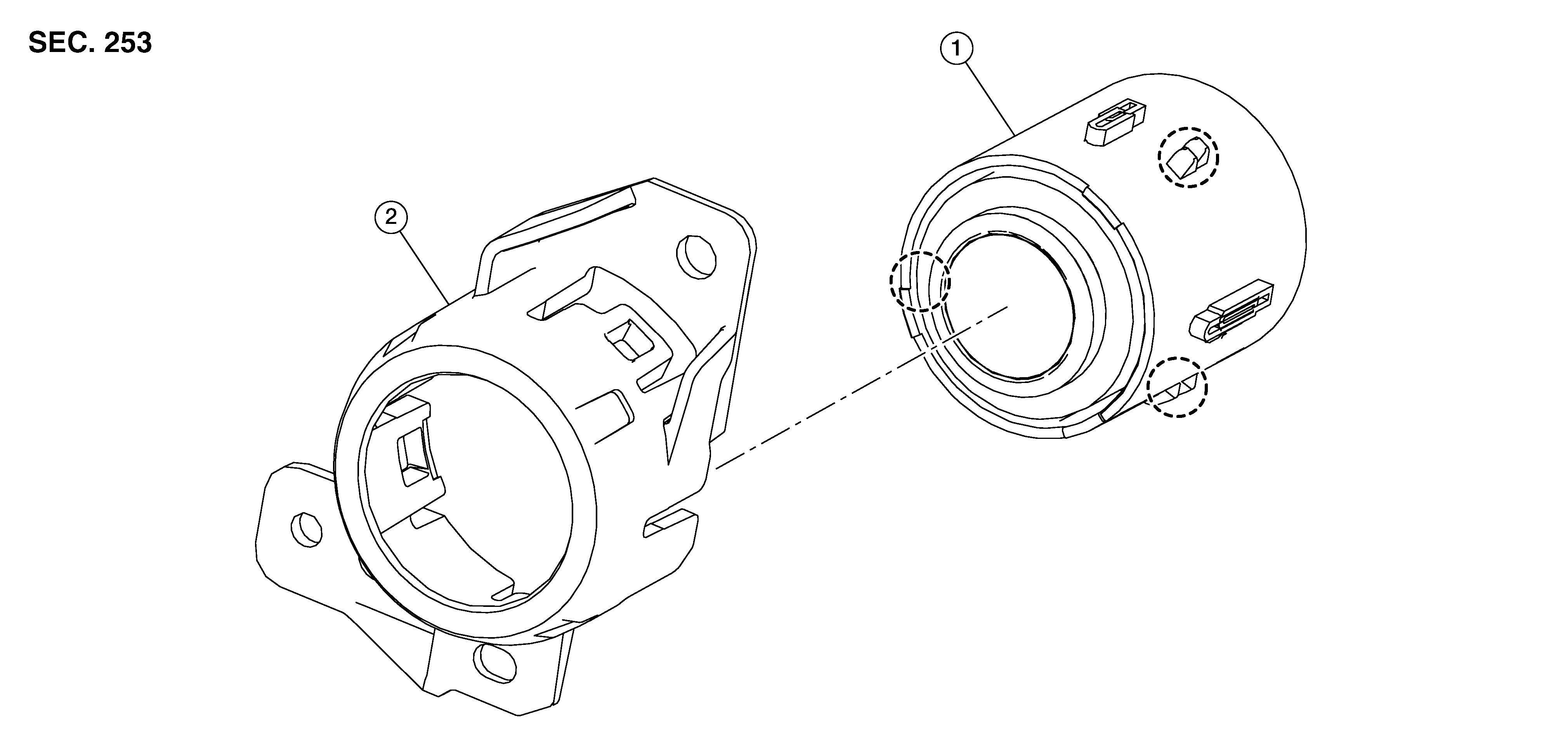

Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Push-button ignition switch
2.
Push-button ignition switch bracket
: Pawl
