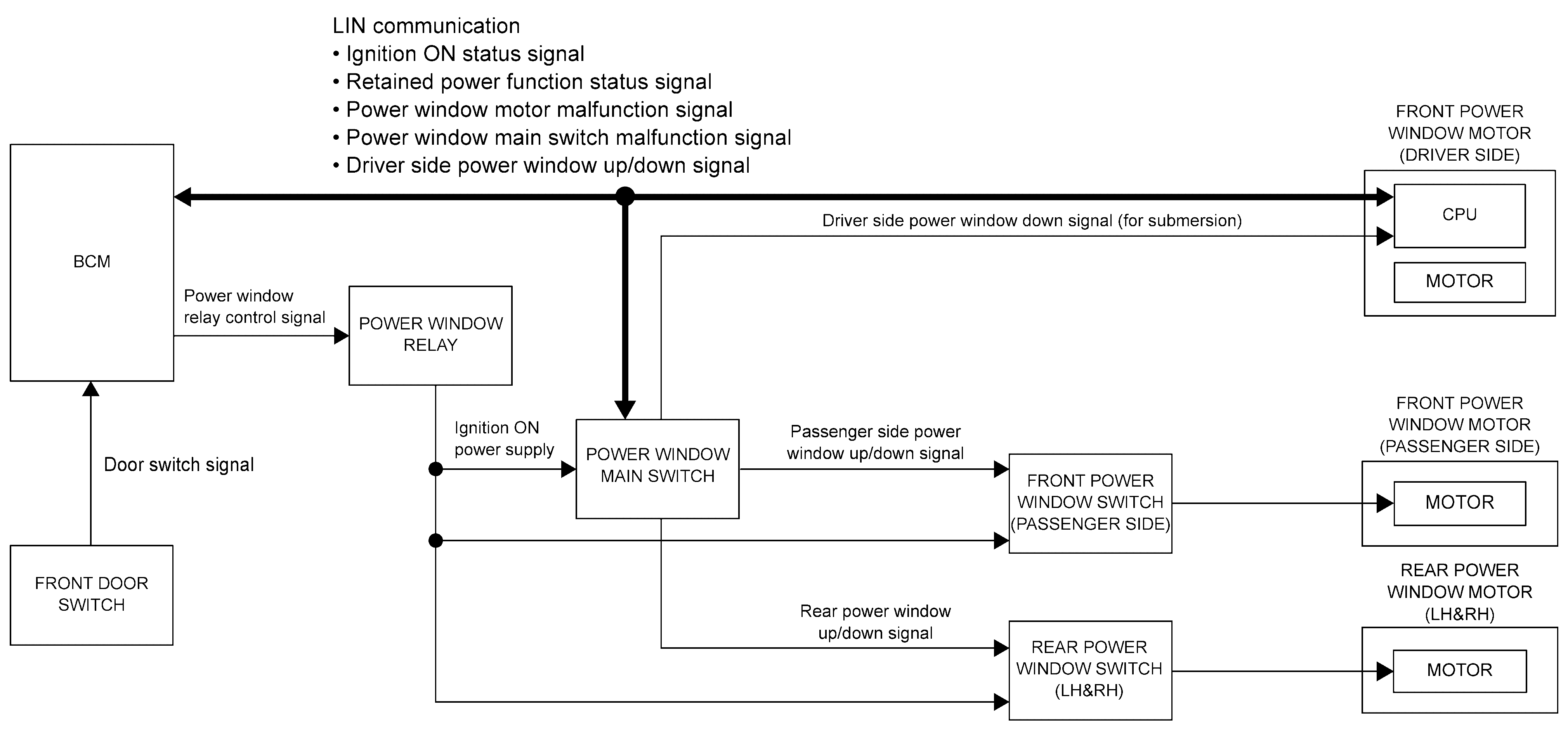

System Diagram

WARNING: This page is about a different car, the 2021 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

Component parts	Function
Front door switch	Detects front door open/close condition and transmits door switch signal to BCM.
BCM	Controls power window relay. Controls retained power function.
Power window main switch	Refer to Power Window Main Switch .
Front power window switch (passenger side)	Refer to Front Power Window Switch (Passenger side) .
Rear power window switch	Refer to Rear Power Window Switch .
Front power window motor (driver side)	Refer to Front Power Window Motor (Driver Side) .
Front power window motor (passenger side)	Refer to Front Power Window Motor (Passenger Side) .
Rear power window motor (LH & RH)	Refer to Rear Power Window Motor .
Power window relay	Refer to Power Window Relay .
