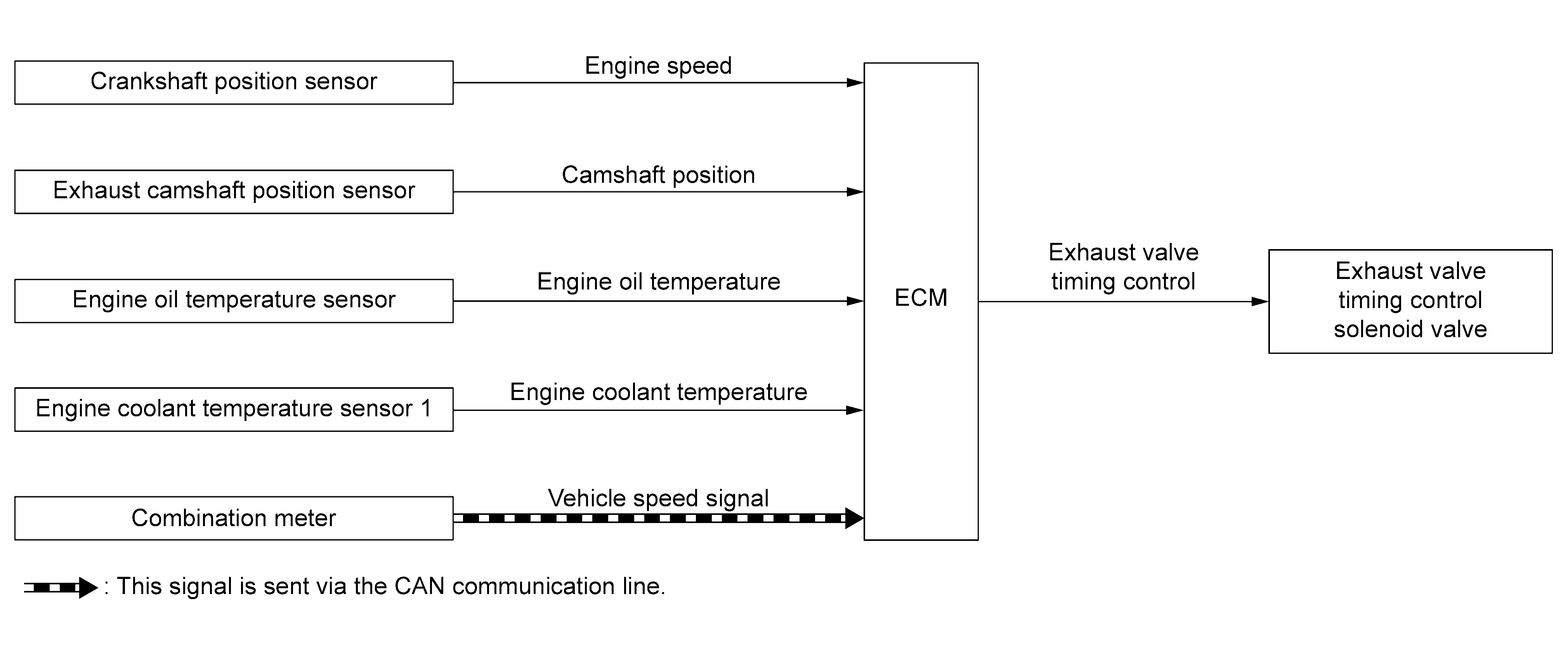

System Diagram
|
Component parts |
Function |
|
Crankshaft position sensor |
|
|
Exhaust camshaft position sensor |
|
|
Engine oil temperature sensor |
|
|
Engine coolant temperature sensor 1 |
|
|
Combination meter |
ECM receives vehicle speed signal via CAN communication. |
|
ECM |
ECM . |
|
Exhaust valve timing control solenoid valve |
