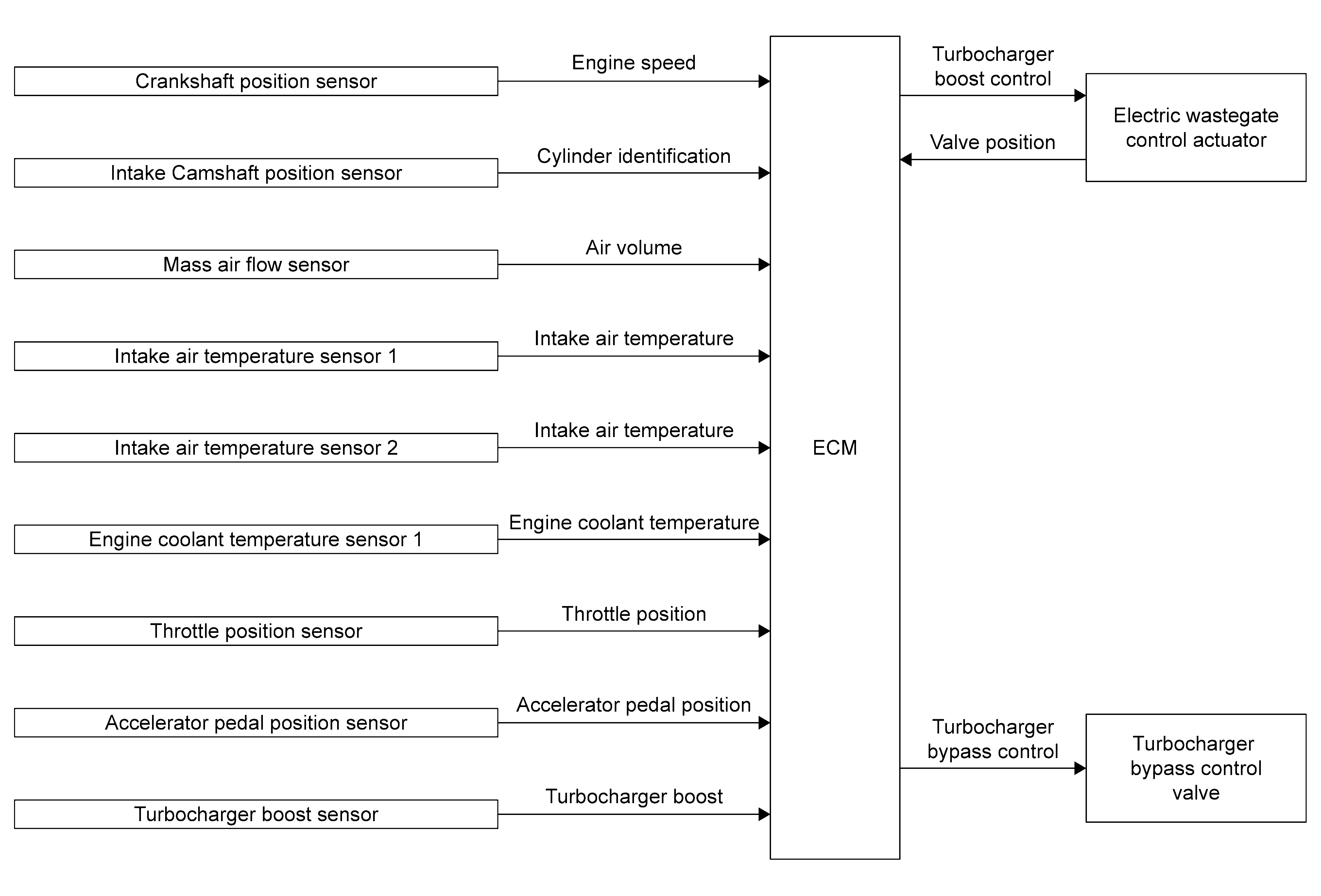

System Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

Component parts	Function
Crankshaft position sensor	Crankshaft Position Sensor .
Intake camshaft position sensor	Intake Camshaft Position Sensor .
Mass air flow sensor	Mass Air Flow Sensor .
Intake air temperature sensor 1	Mass Air Flow Sensor .
Intake air temperature sensor 2	Turbocharger Boost Sensor (With Intake Air Temperature Sensor 2) .
Engine coolant temperature sensor 1	Engine Coolant Temperature Sensor .
Throttle position sensor	Electric Throttle Control Actuator .
Accelerator pedal position sensor	Accelerator Pedal Position Sensor .
Turbocharger Boost Sensor	Turbocharger Boost Sensor (With Intake Air Temperature Sensor 2) .
ECM	ECM .
Electric wastegate control actuator	Turbocharger .
Turbocharger bypass control valve	Turbocharger .
