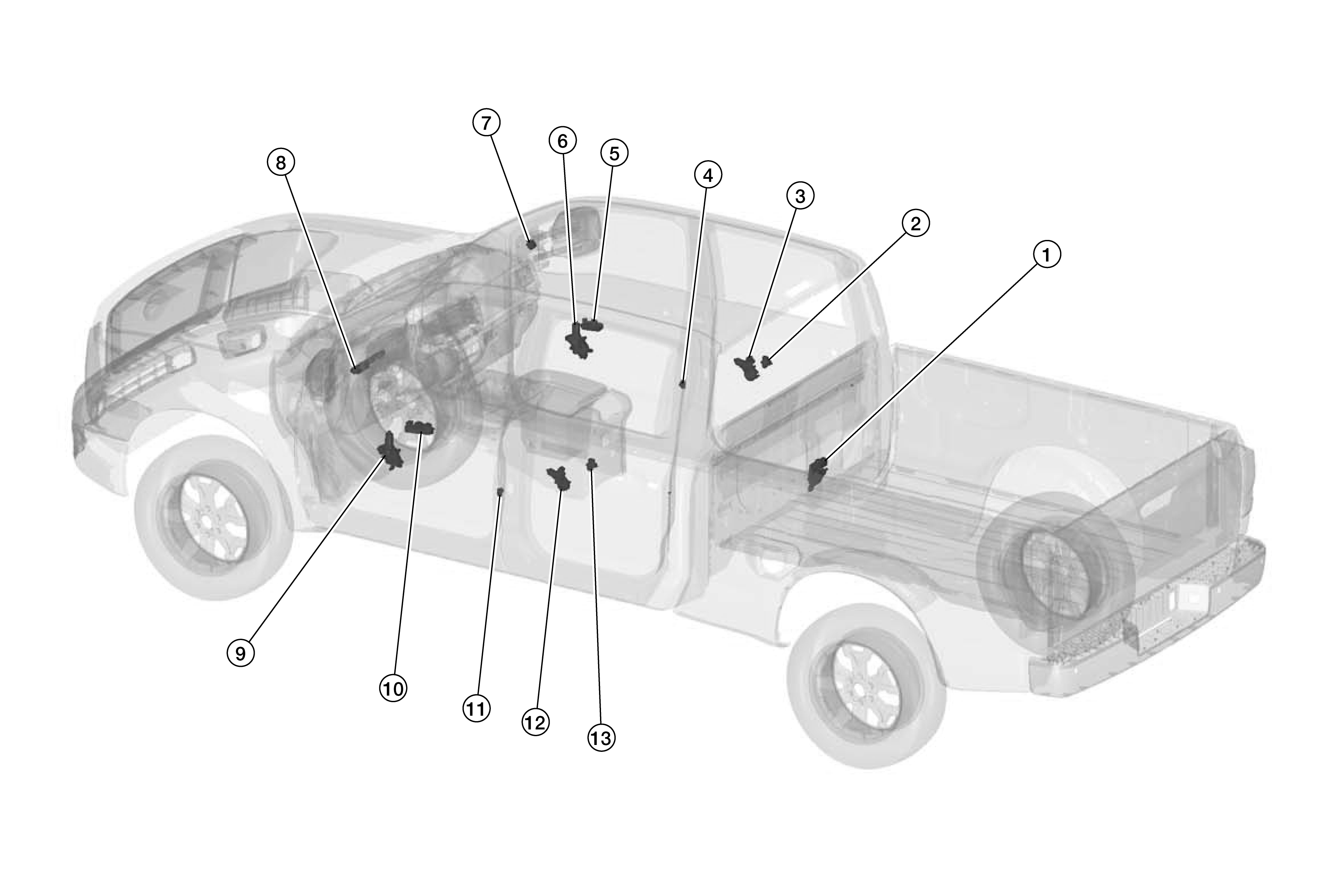

Component Location

No.

Component

Function

1.

Rear power slide glass motor (if equipped)

Refer to Rear Power Slide Glass Motor .

2.

Rear power window switch RH (if equipped)

Refer to Rear Power Window Switch .

3.

Rear power window motor RH (if equipped)

Refer to Power Window Motor .

4.

Front door switch RH

Detects door open/close condition and transmits to BCM.

Refer to Front Door Switch .

5.

Power window and door lock/unlock switch RH

Refer to Power Window and Door Lock/Unlock Switch RH .

6.

Front power window motor RH

Refer to Power Window Motor .

7.

Rear power slide glass switch (if equipped)

Refer to Rear Power Slide Glass Switch .

8.

BCM (Body Control Module)

• Supplies power to the window switches.
• Controls retained power.

Refer to Component Location for detailed component location.

9.

Front power window motor LH

Refer to Power Window Motor .

10.

Main power window and door lock/unlock switch

Refer to Main Power Window and Door Lock/Unlock Switch- With Crew Cab  or Main Power Window and Door Lock/Unlock Switch- Except Crew Cab .

11.

Front door switch LH

Detects door open/close condition and transmits to BCM.

Refer to Front Door Switch .

12.

Rear power window motor LH (if equipped)

Refer to Power Window Motor .

13.

Rear power window switch LH (if equipped)

Refer to Rear Power Window Switch .
