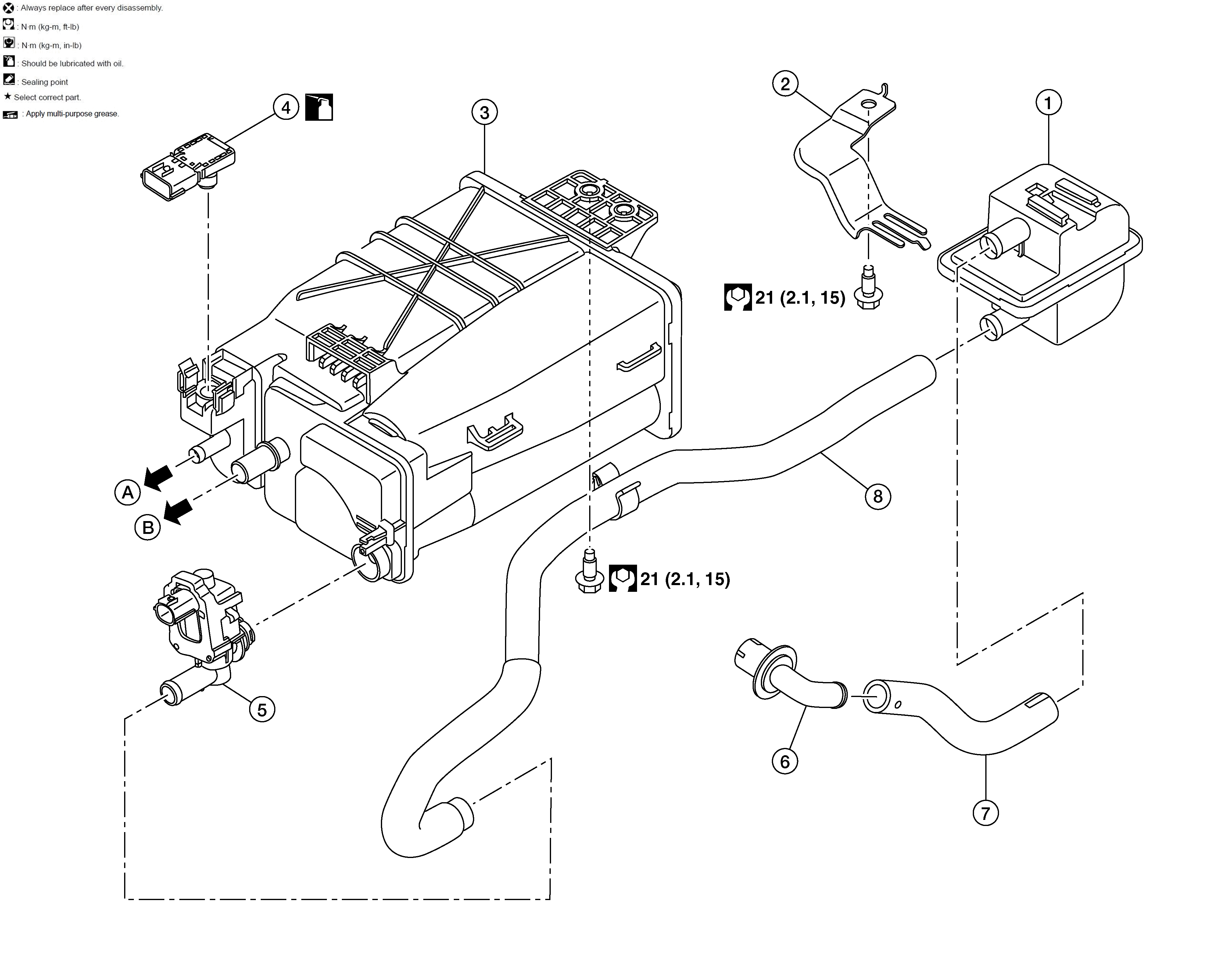

Exploded View
| 1. | EVAP canister filter | 2. | EVAP canister filter bracket | 3. | EVAP canister |
| 4. | EVAP control system pressure sensor | 5. | EVAP canister vent control valve | 6. | EVAP canister filter hose frame connector |
| 7. | EVAP canister filter hose | 8. | EVAP canister vent control valve hose | A. | To centralized under-floor piping |
| B. | To fuel tank. Refer to Exploded View . | ||||
