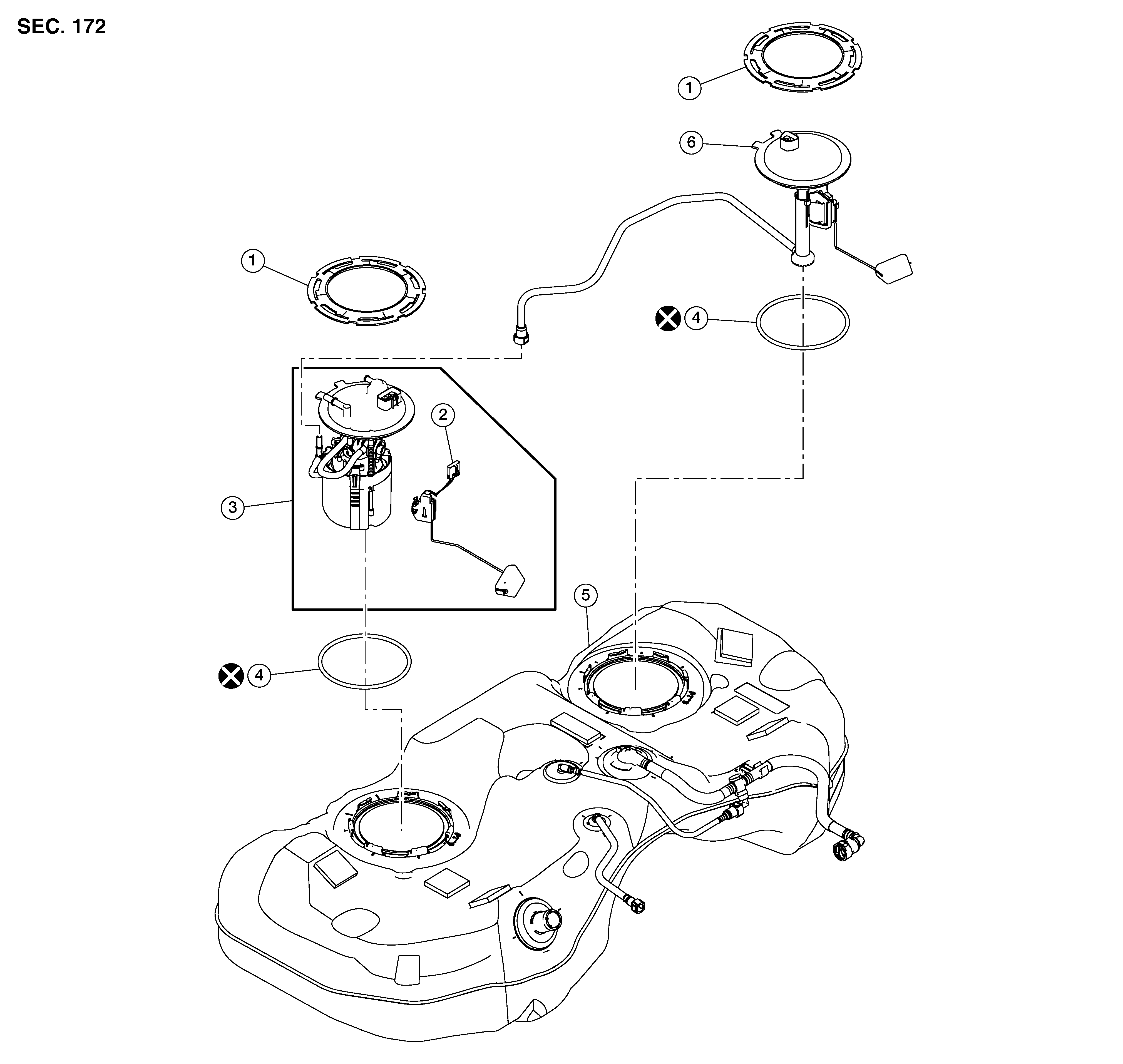

Exploded View

GNSDB49690Courtesy of NISSAN
1. Lock ring 2. Fuel level sensor 3. Fuel level sensor unit and fuel pump
4. O-ring 5. Fuel tank 6. Fuel level sensor (sub)
