System Description

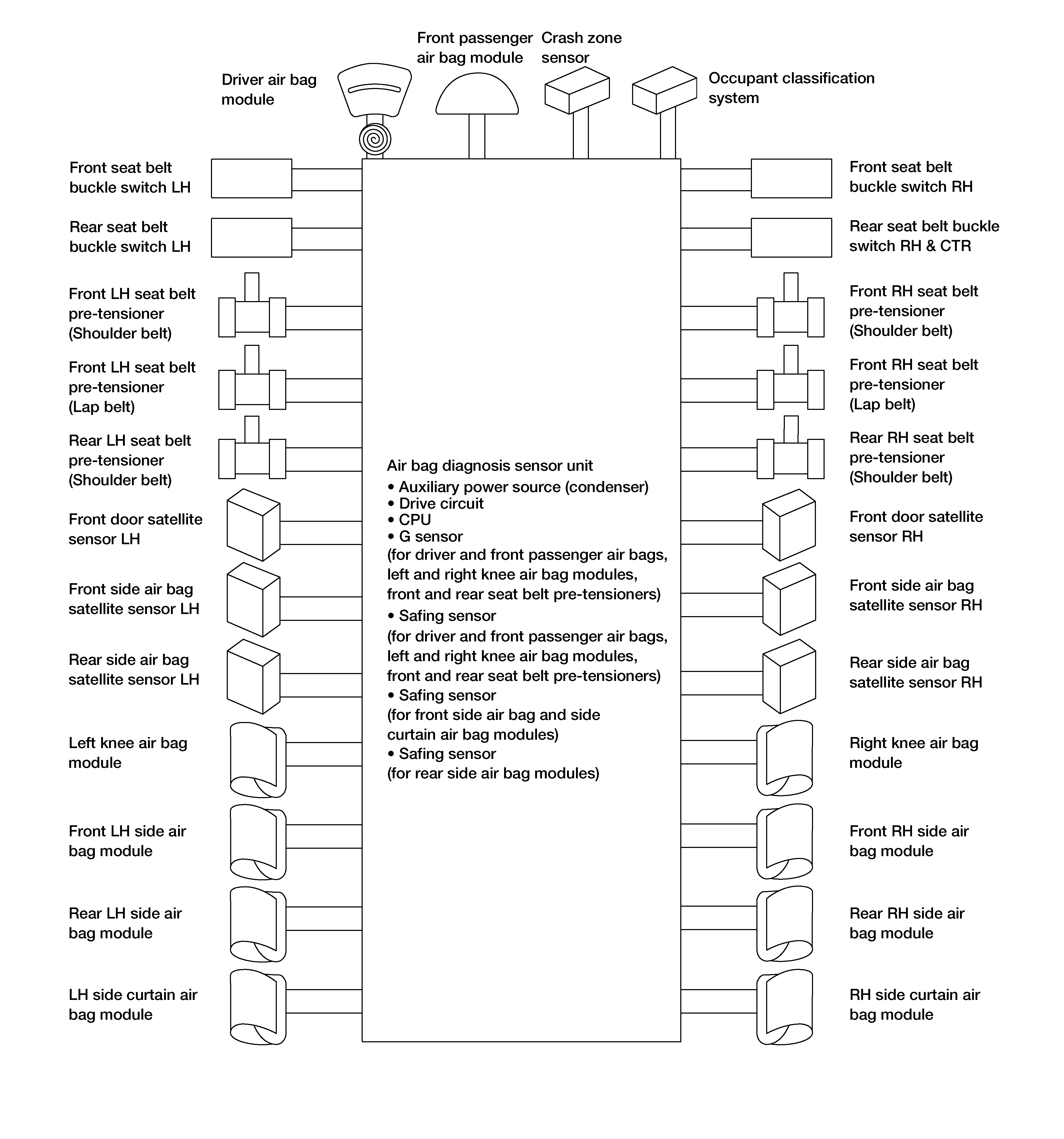

SYSTEM DIAGRAM
DESCRIPTION
- The air bag deploys if the air bag diagnosis sensor unit is activated while the ignition switch is in the ON or START position.
- The collision modes for which supplemental restraint systems are activated are different among the SRS systems. For example, the driver air bag module, front passenger air bag module and front seat belt pre-tensioners are activated in a frontal collision but not in a side collision.
SRS Collision Modes
| SRS configuration | Frontal collision | Left side collision | Right side collision | Rollover detection |
|---|---|---|---|---|
| Driver air bag module | x | - | - | x |
| Front passenger air bag module | x | - | - | x |
| Left knee air bag module | x | - | - | x |
| Right knee air bag module | x | - | - | x |
| Front LH seat belt pre-tensioner | x | x | - | x |
| Front RH seat belt pre-tensioner | x | - | x | x |
| Rear LH seat belt pre-tensioner | x | x | - | x |
| Rear RH seat belt pre-tensioner | x | - | x | x |
| Front LH side air bag module | - | x | - | x |
| Front RH side air bag module | - | - | x | x |
| LH side curtain air bag module | - | x | - | x |
| RH side curtain air bag module | - | - | x | x |
| Rear LH side air bag module | - | x | - | x |
| Rear RH side air bag module | - | - | x | x |
