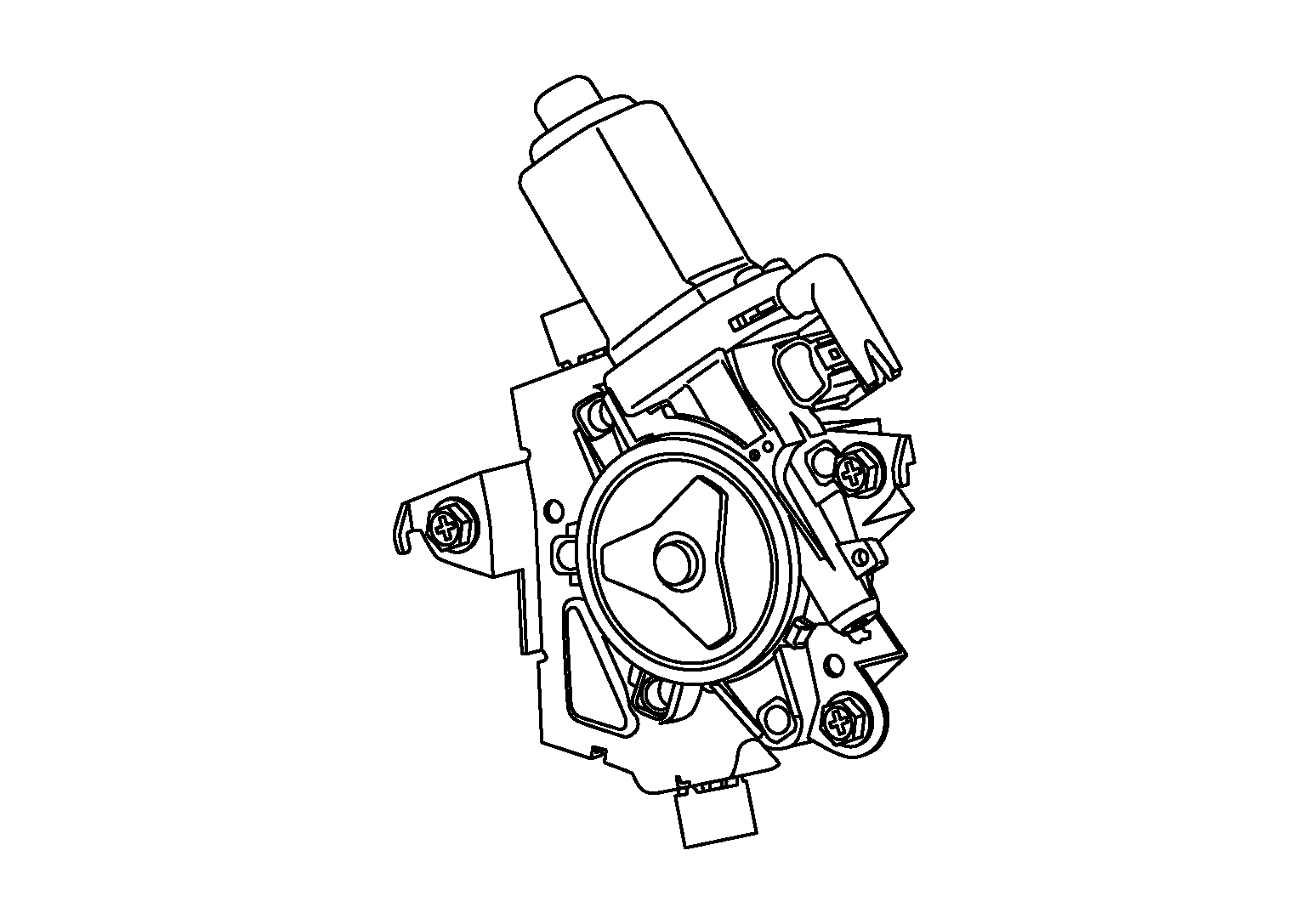

Front Power Window Motor
Front power window motors are installed behind the front door finishers.
Courtesy of NISSAN
Integrates the encoder for front power window LH.
Starts operation according to signals from each power window switch.
Transmits each power window motor rotation as a pulse signal to each power window switch.
