System Description

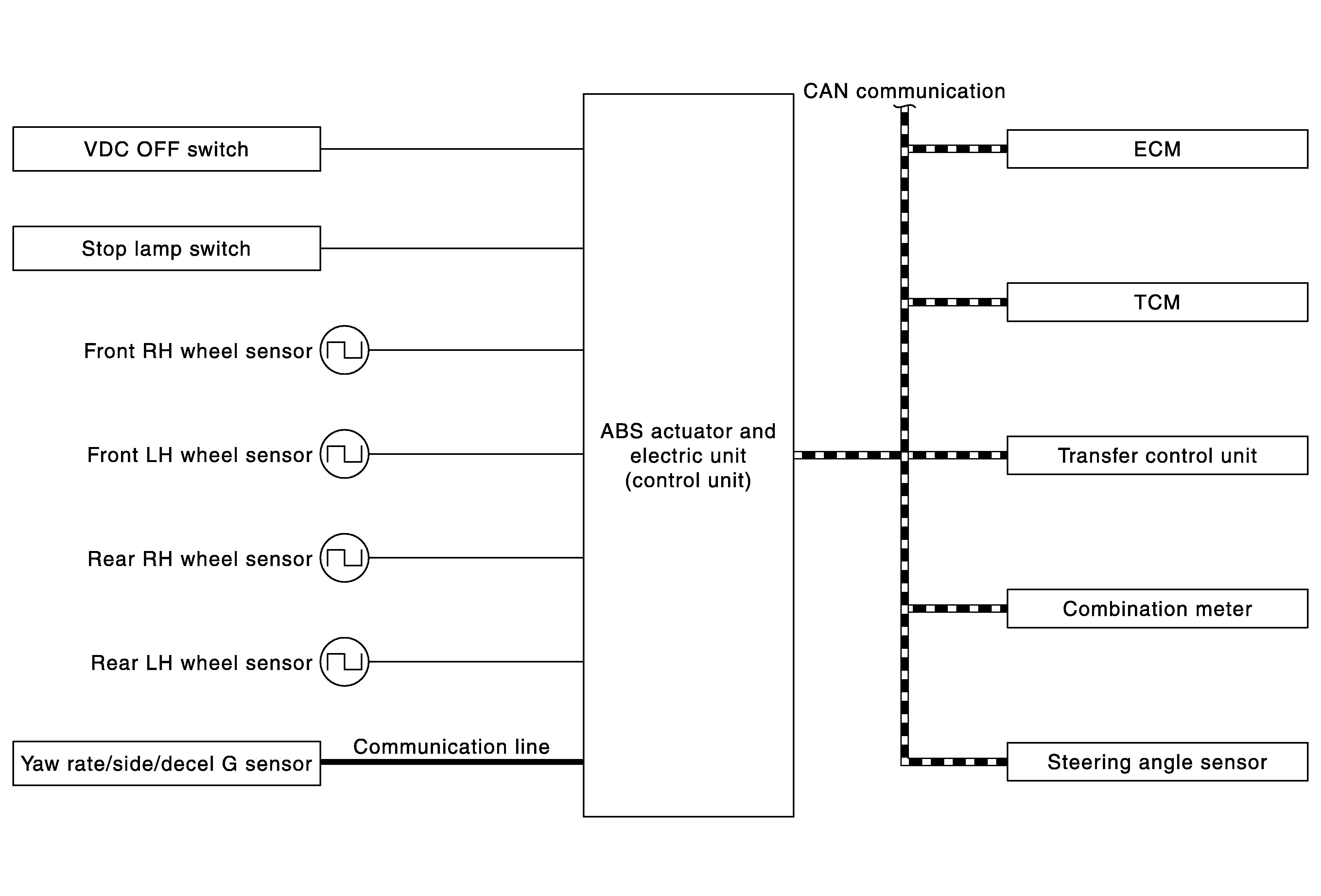

SYSTEM DIAGRAM

GNSDB43110Courtesy of NISSAN

INPUT SIGNAL AND OUTPUT SIGNAL

Major signal transmission between each unit via communication lines is shown in the following table:

Component Signal description
Yaw rate/side/decel G sensor Mainly transmits the following signals to ABS actuator and electric unit (control unit) via communication line*1:
  • Yaw rate signal
  • Side G sensor signal
  • Decel G sensor signal
ECM Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication:
  • Accelerator pedal position signal
  • Engine speed signal

Mainly receives the target throttle position signal from ABS actuator and electric unit (control unit) via CAN communication.
TCM Mainly transmits the shift position signal to ABS actuator and electric unit (control unit) via CAN communication.
Transfer control unit *2 Mainly transmits the current 4WD mode signal to ABS actuator and electric unit (control unit) via CAN communication.
Steering angle sensor Mainly transmits the steering angle sensor signal to ABS actuator and electric unit (control unit) via CAN communication.
Combination meter Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN communication:
  • SLIP indicator lamp signal
  • VDC OFF indicator lamp

*1: Communication line between yaw rate/side/decel G sensor and ABS actuator and electric unit (control unit)

*2: Models with 4WD

OPERATION CHARACTERISTICS

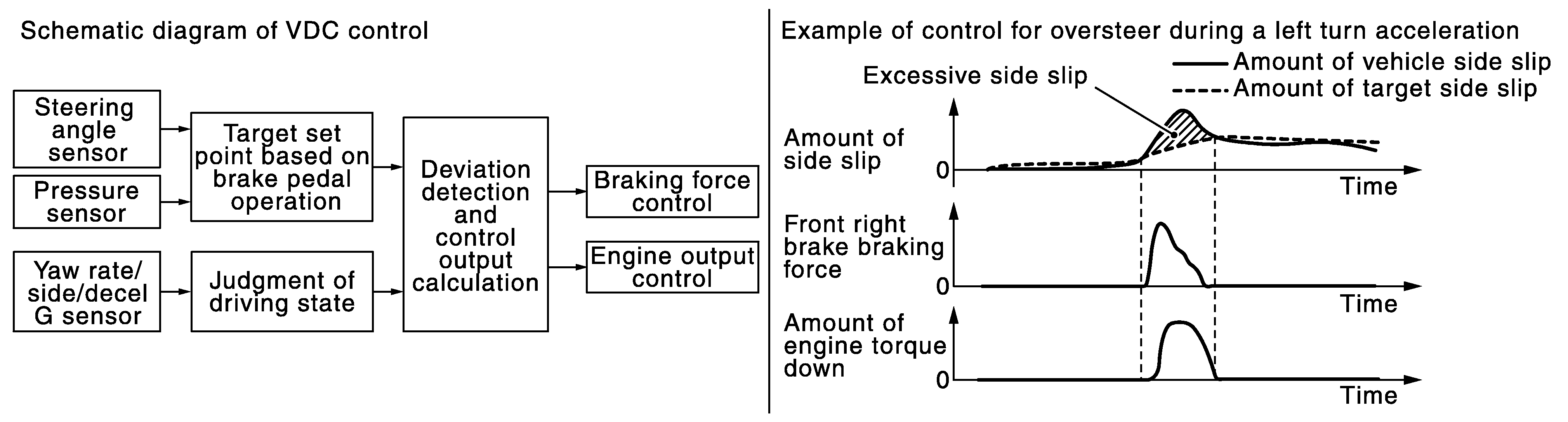

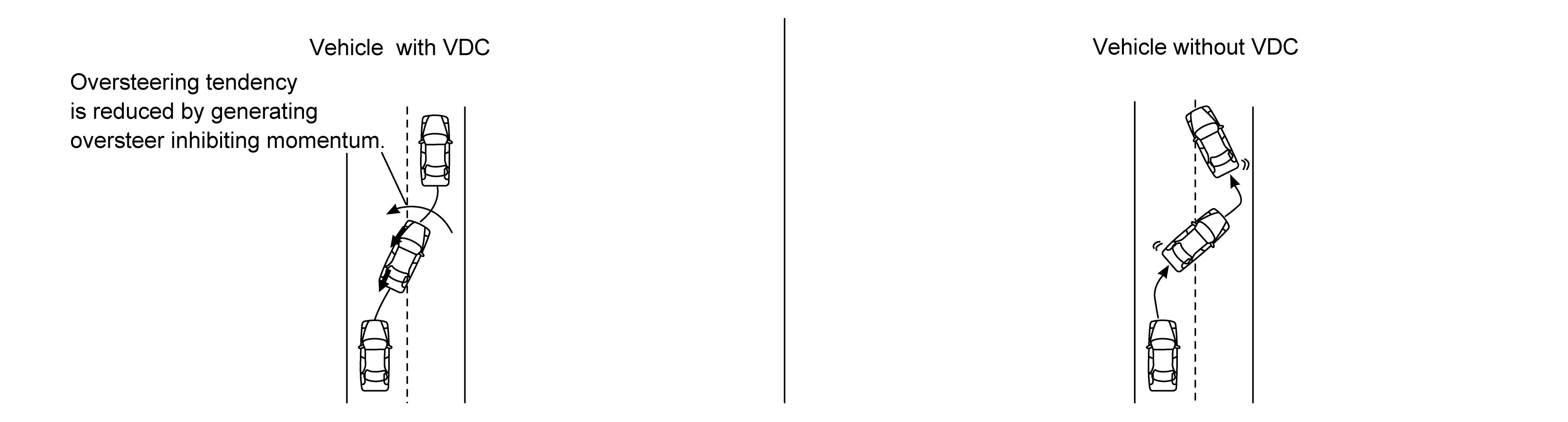

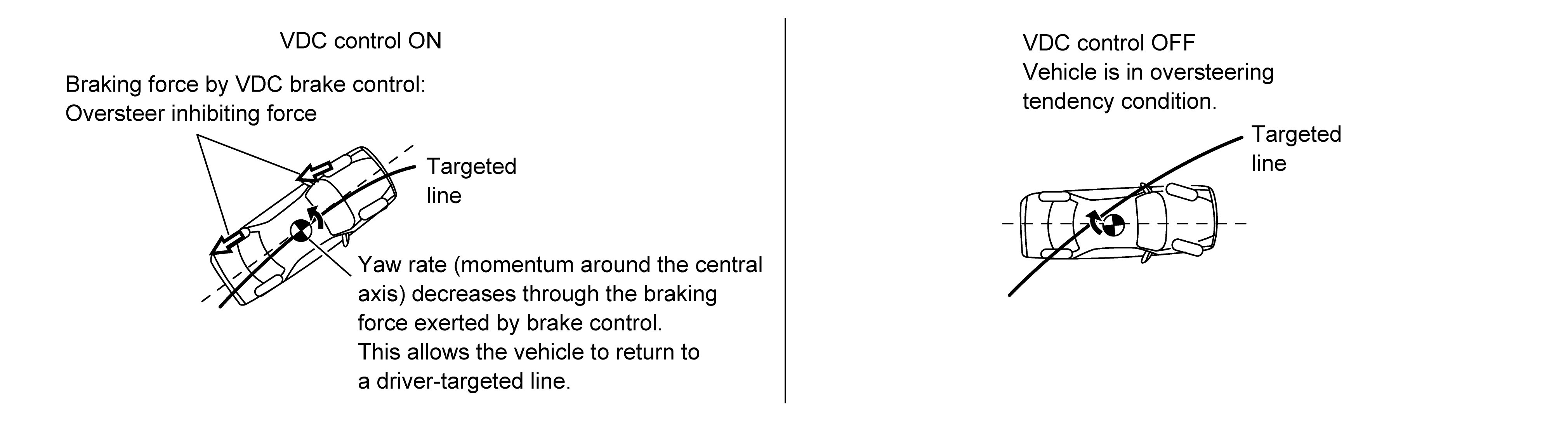

VDC Function That Prevents Oversteer Tendency

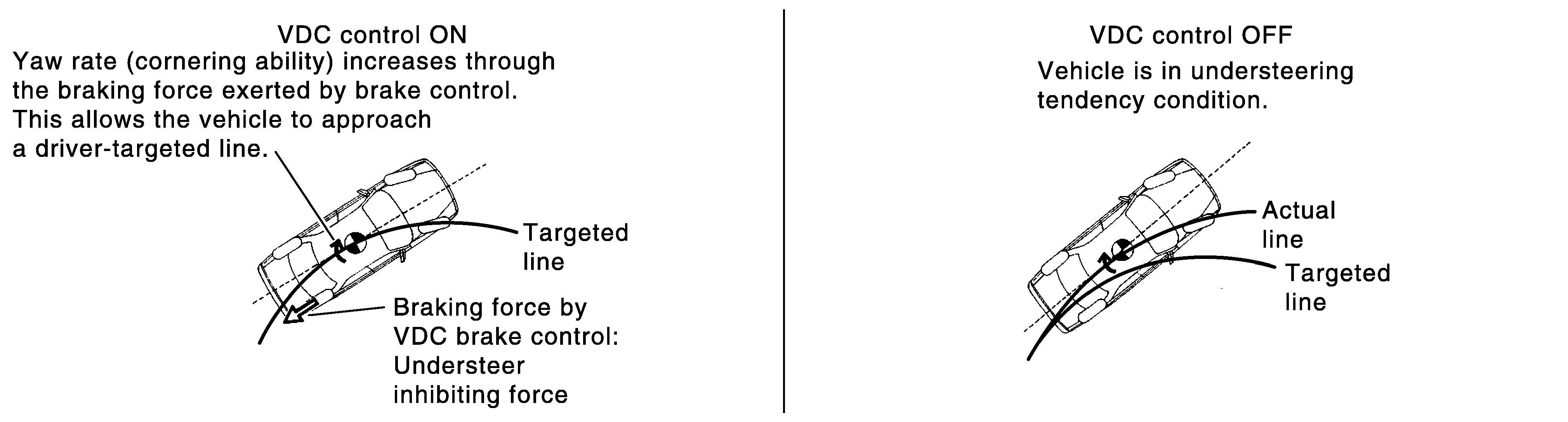

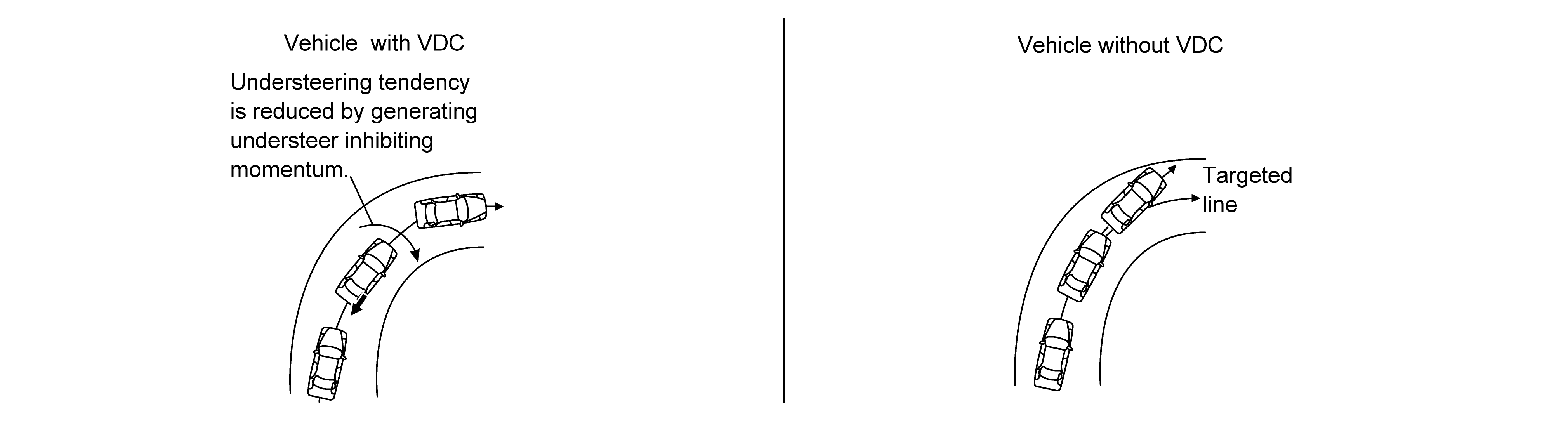

VDC Function That Prevents Understeer Tendency
