Exploded View

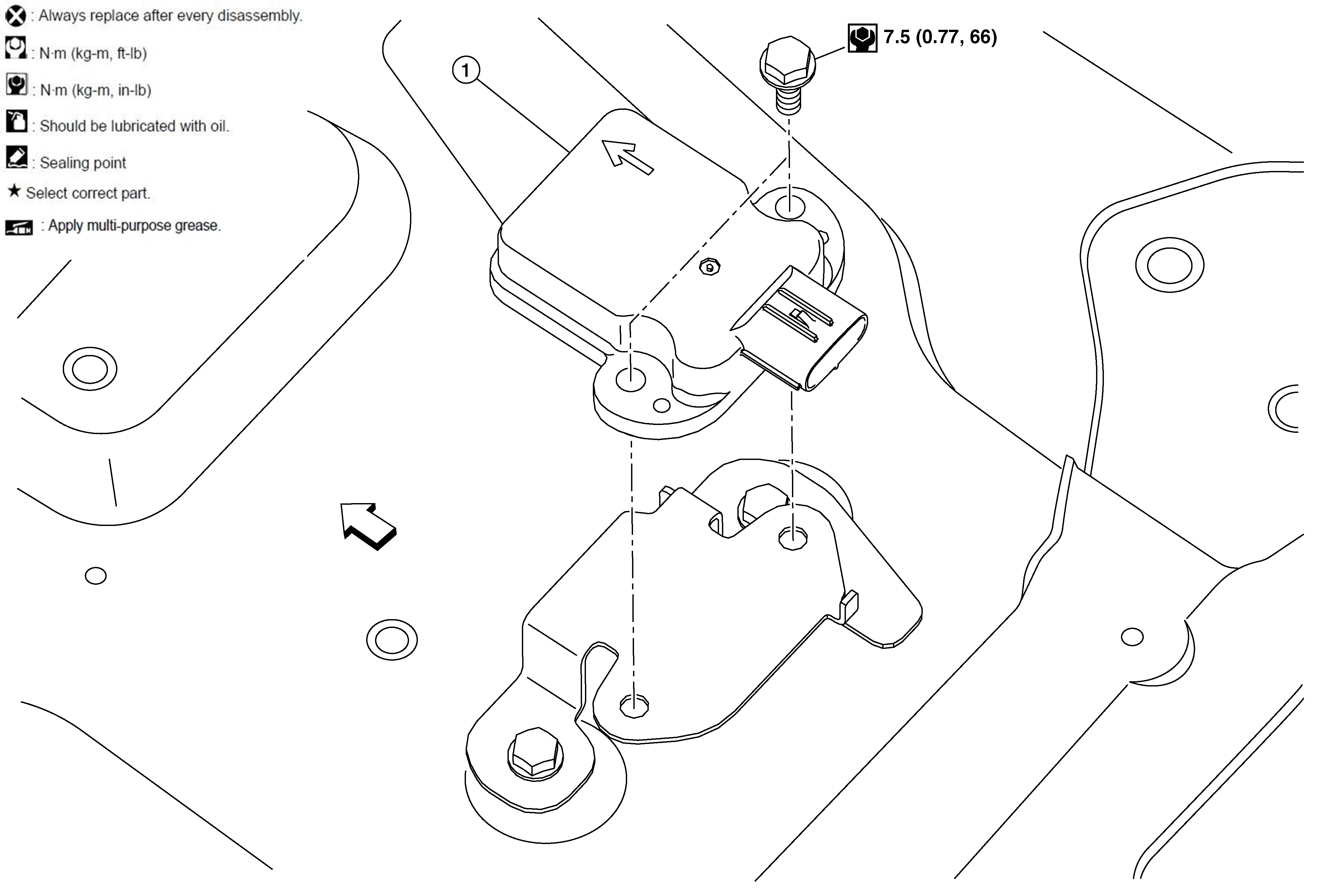

Fig 1: Yaw Rate/Side/Decel G Sensor With Torque Specifications
GNSDB42730Courtesy of NISSAN
1. Yaw rate/side/decel G sensor SYMBOL Front
