ECM
>>
Exploded View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Exploded View

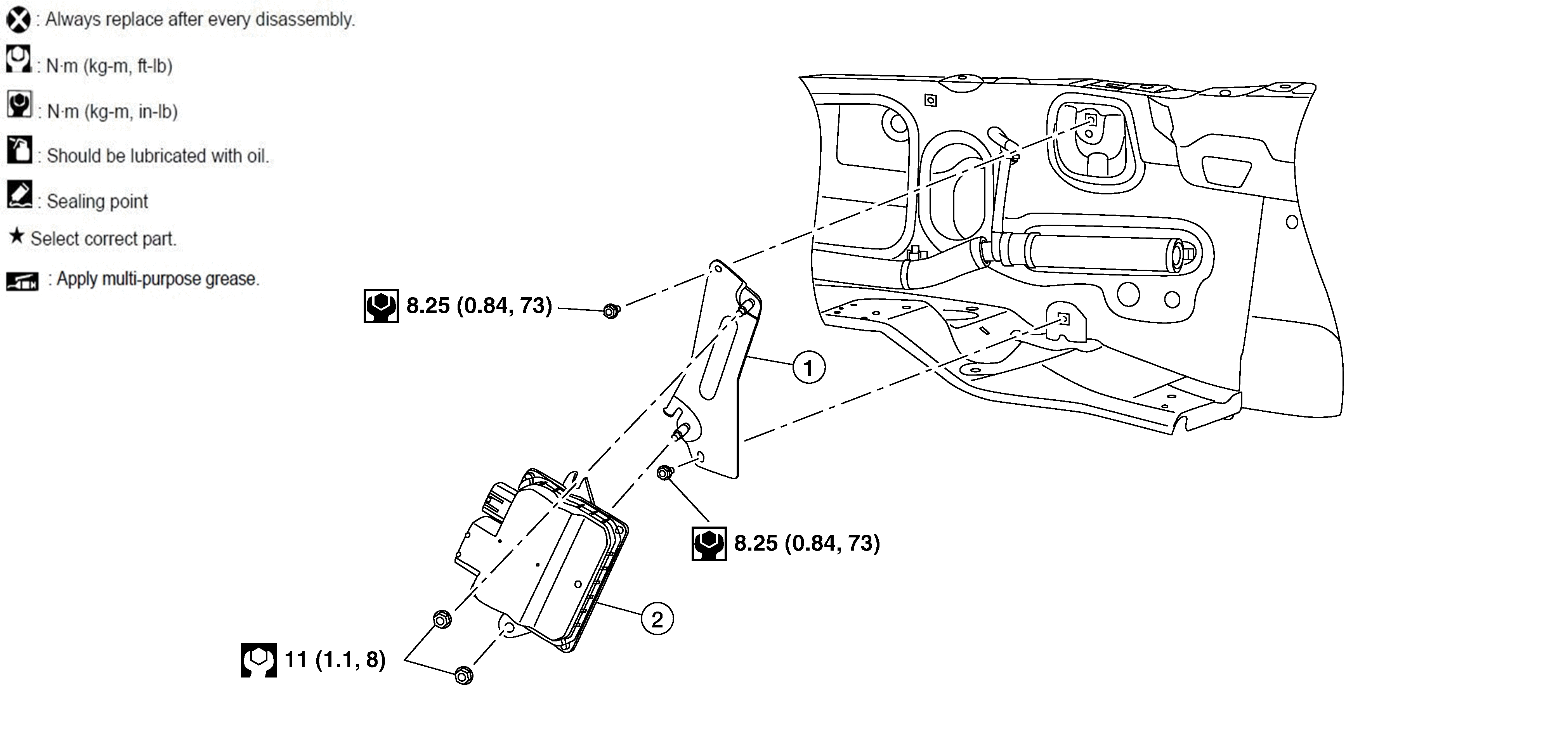

Fig 1: ECM With Torque Specifications
Courtesy of NISSAN
1.
ECM bracket
2.
ECM
