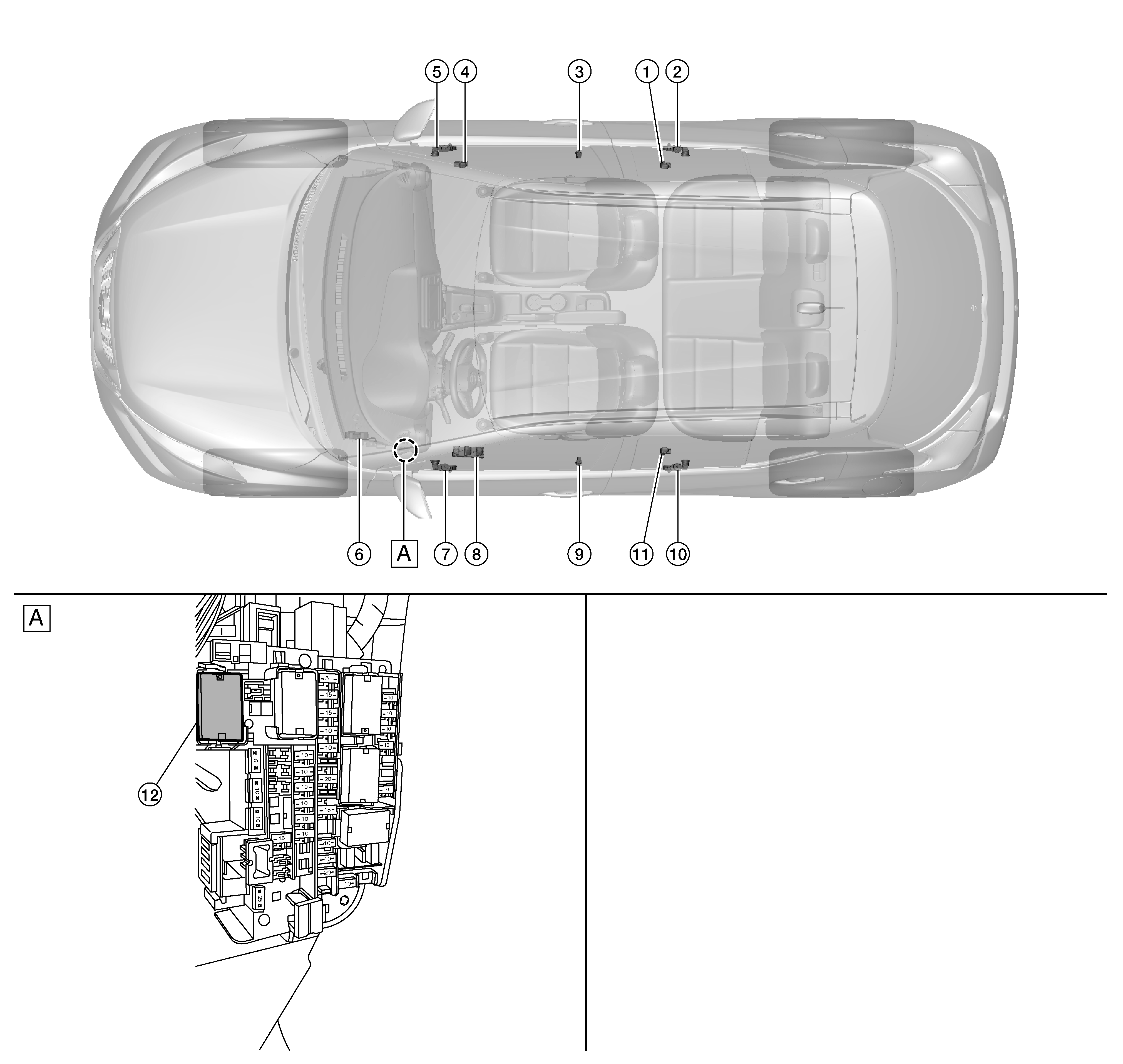

| 1. |
Rear power window switch RH |
Refer to Rear Power Window Switch LH/RH . |
| 2. |
Rear power window motor RH |
Refer to Rear Power Window Motor LH/RH . |
| 3. |
Front door switch RH |
Inputs door open/close condition to BCM. Refer to Front Door Switch
for detailed component location. |
| 4. |
Power window and door lock/unlock switch RH |
Refer to Power Window and Door Lock/Unlock Switch RH . |
| 5. |
Front power window motor RH |
Refer to Front Power Window Motor LH/RH . |
| 6. |
BCM (Body Control Module) |
- Supplies power supply to power window relay.
- Controls retained power.
Refer to Component Location
for detailed component location. |
| 7. |
Front power window motor LH |
Refer to Front Power Window Motor LH/RH . |
| 8. |
Main power window and door lock/unlock switch |
Refer to Main Power Window and Door Lock/Unlock Switch . |
| 9. |
Front door switch LH |
Inputs door open/close condition to BCM. Refer to Front Door Switch
for detailed component location. |
| 10. |
Rear power window motor LH |
Refer to Rear Power Window Motor LH/RH . |
| 11. |
Rear power window switch LH |
Refer to Rear Power Window Switch LH/RH . |
| 12. |
Power window relay |
Operates the power window system with the control signal from the BCM. |
