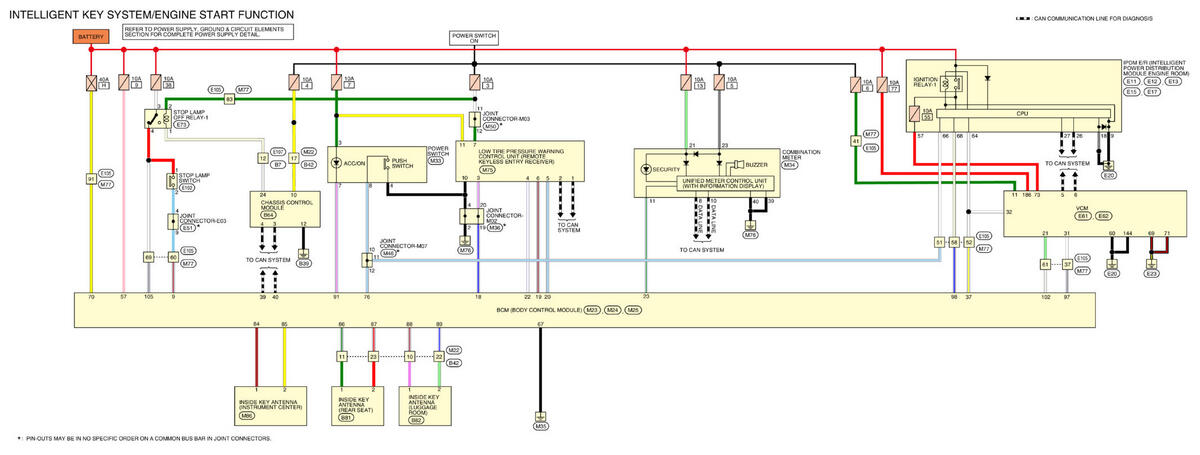

Intelligent Key System - Engine Start Function: Wiring Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
