Exploded View

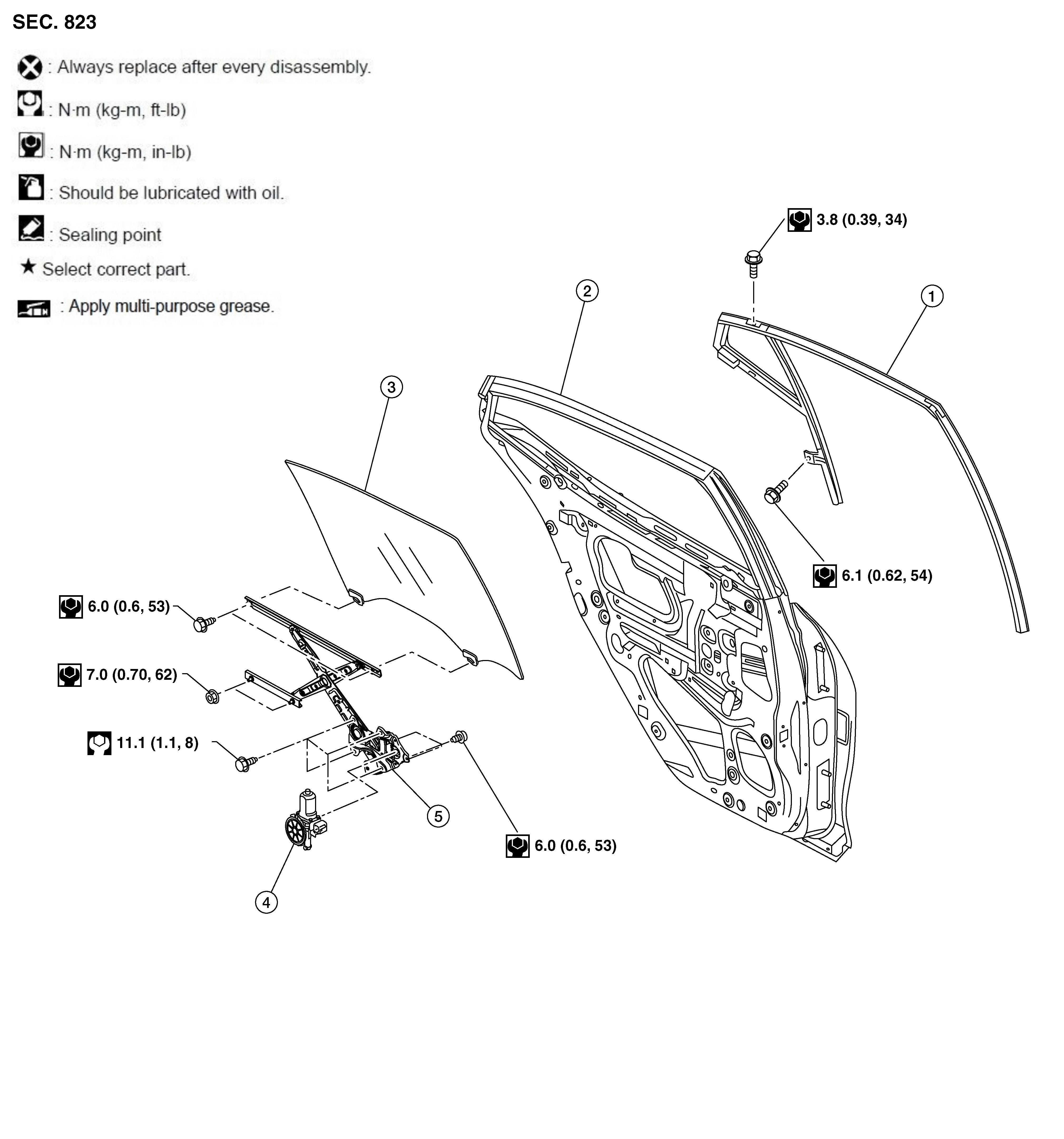

Fig 1: Rear Door Glass and Regulator Components with Torque Specifications
GNSDB54957Courtesy of NISSAN
1. Door glass rubber run and partition glass 2. Door 3. Door glass
4. Rear power window motor 5. Door glass regulator
