Work Procedure

  1. CHECK IGNITION TIMING

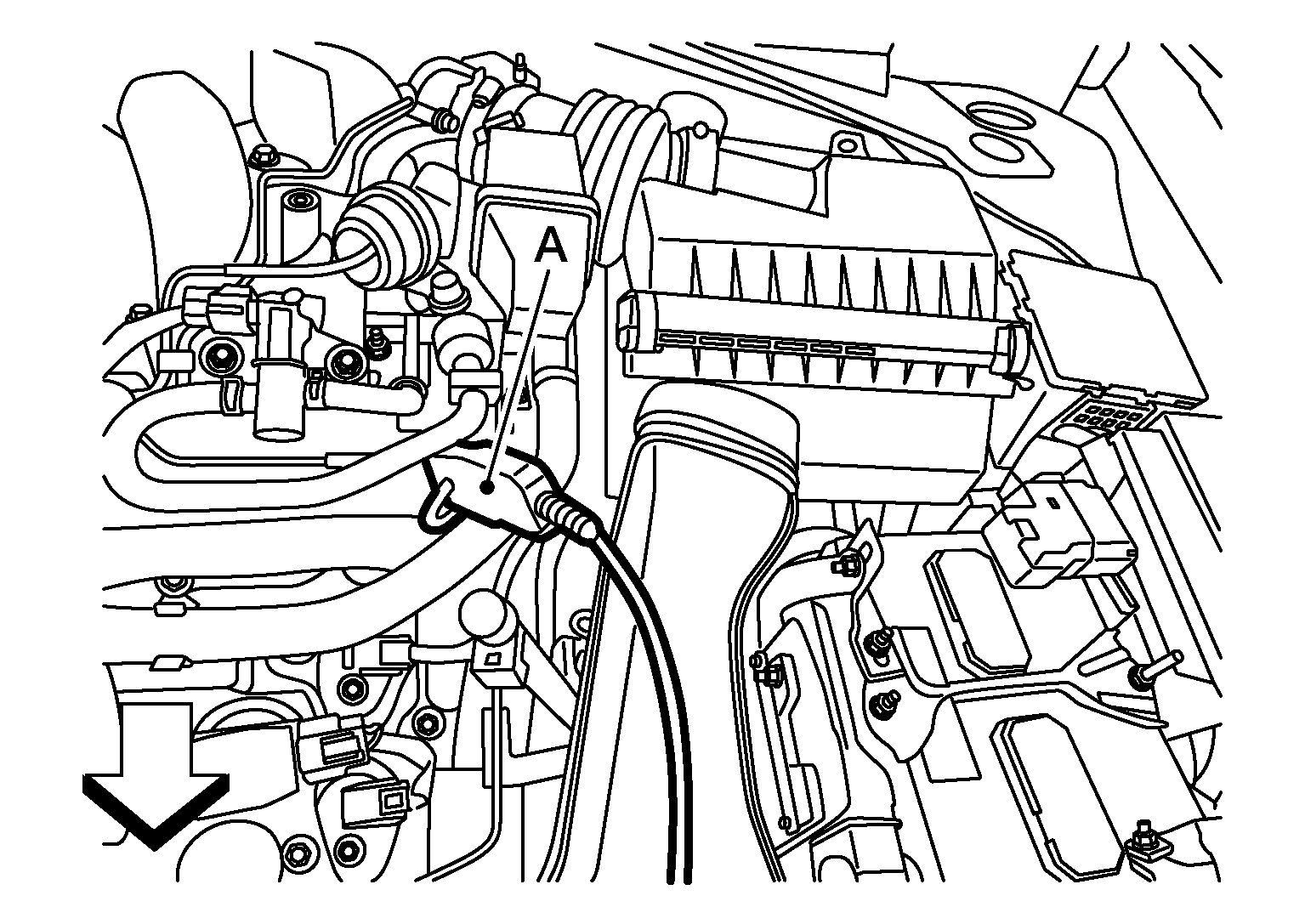

    1. Attach timing light to loop wires as shown in the illustration.
      GNSDB55679Courtesy of NISSAN
      (A) : Timing light
      SYMBOL : Vehicle front

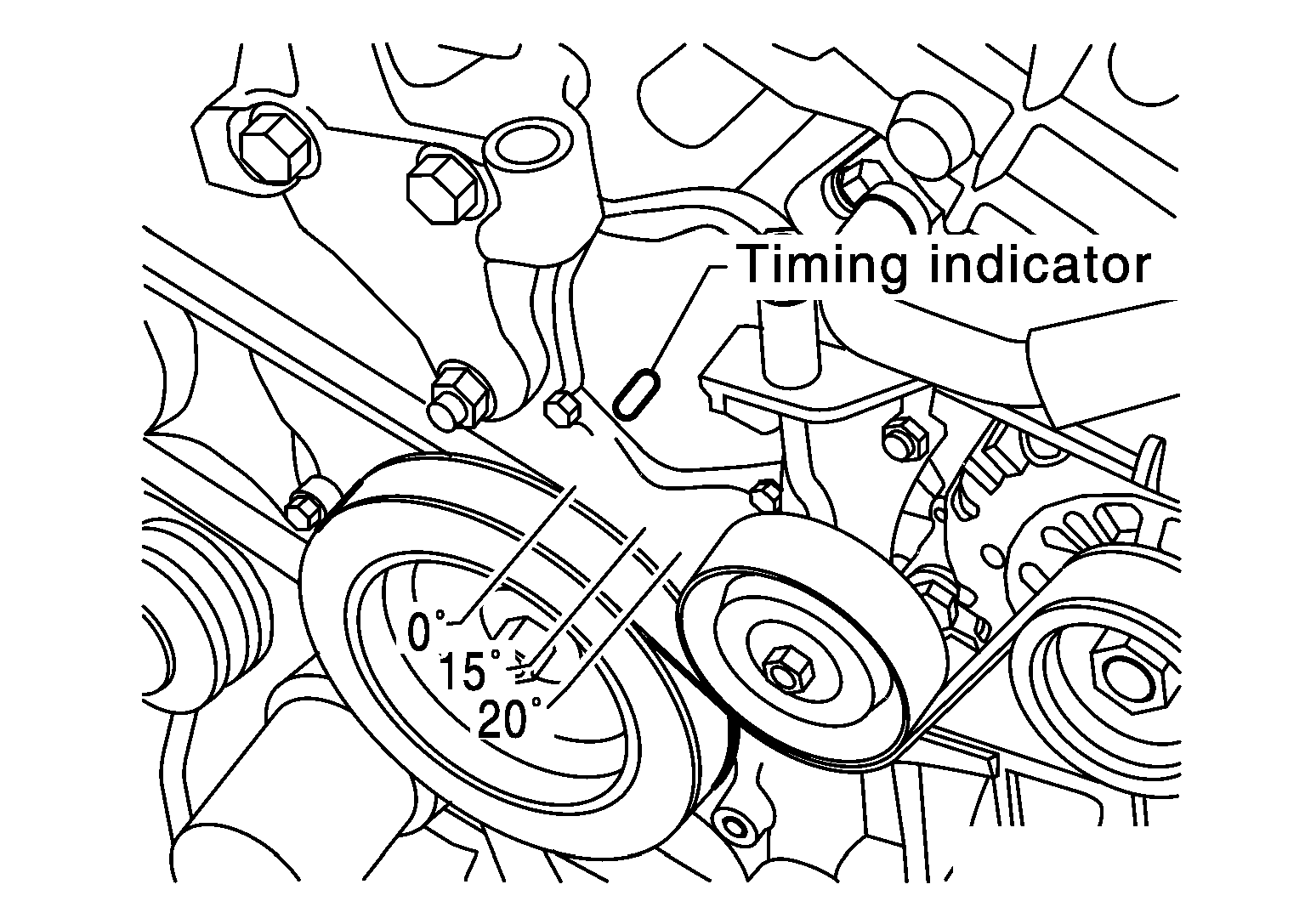

    2. Check ignition timing.
      GNSDB53209Courtesy of NISSAN

    >>

    INSPECTION END
