Removal and Installation

  1. Disconnect the negative terminal from the battery. Refer to Battery Disconnect .
  2. Remove shift selector finisher. Refer to Exploded View .
  3. Disconnect the harness connectors from the switches on the shift selector finisher.
  4. Remove the screws (A).

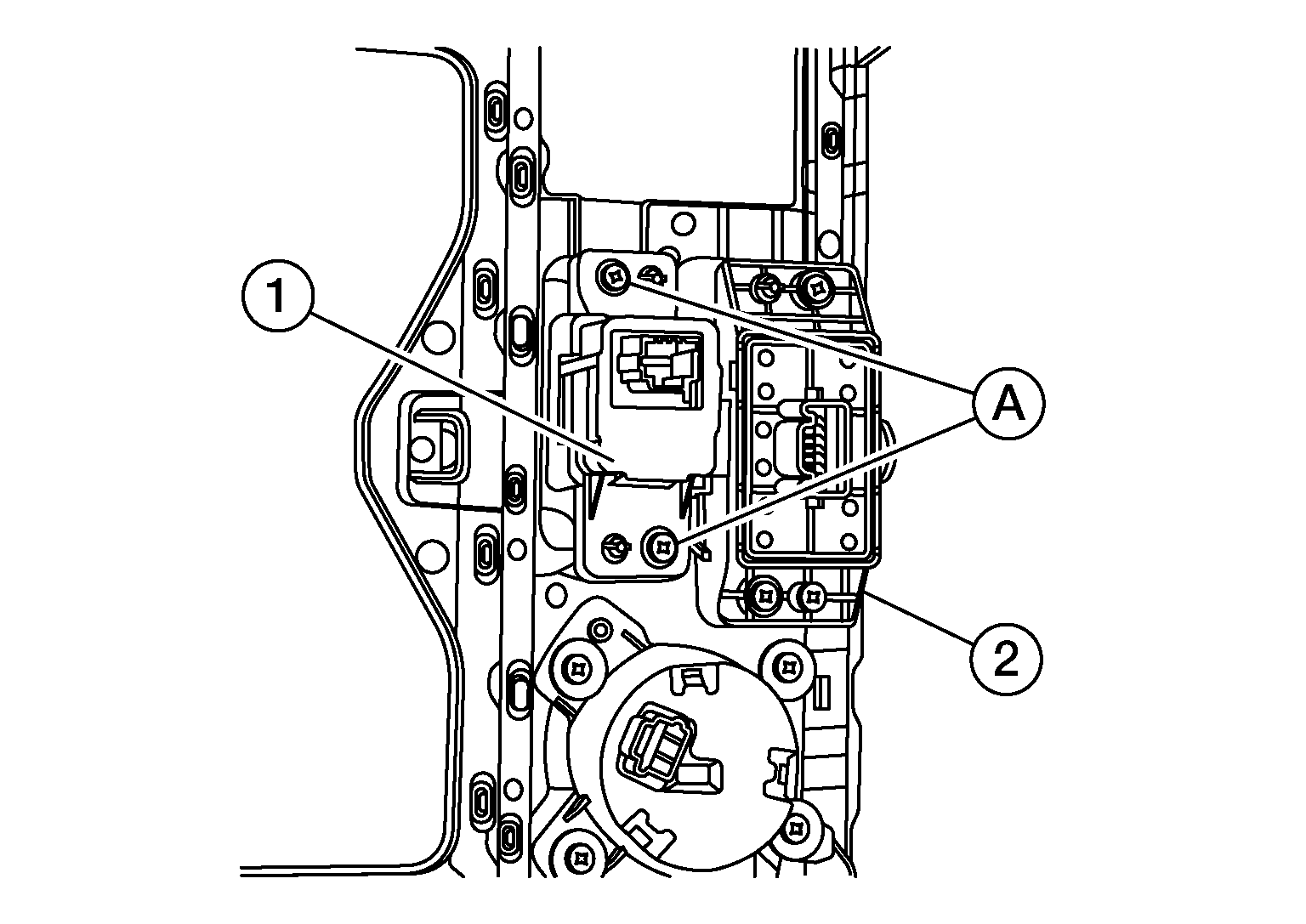

    GNSDB45604Courtesy of NISSAN
  5. Remove the stop/start off switch (1) from shift selector finisher (2).

INSTALLATION

Installation is in the reverse order of removal.
