System Description

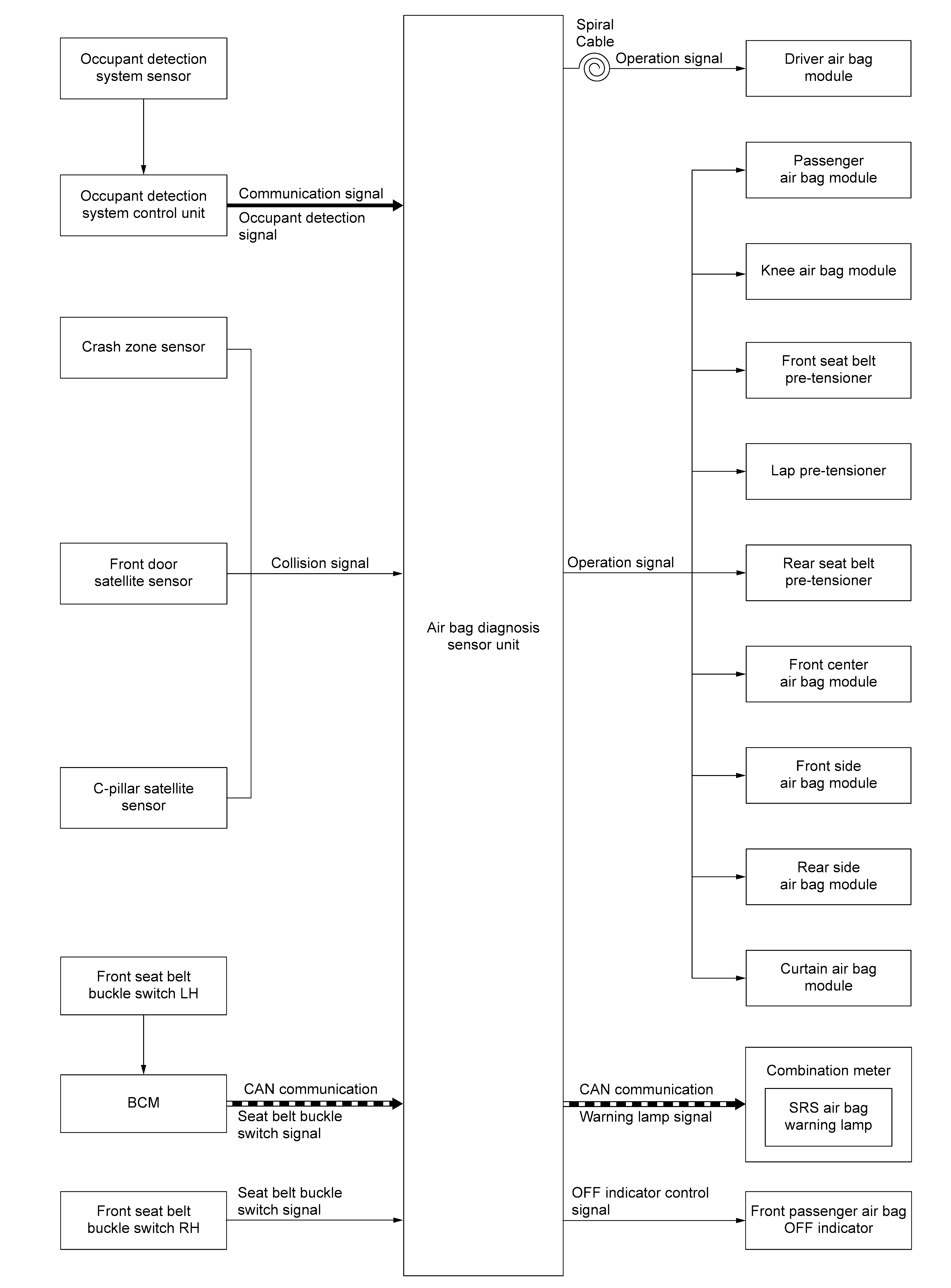

SYSTEM DIAGRAM
System Description
- The air bag deploys if the air bag diagnosis sensor unit is activated while the push-button ignition switch is in ON or START.
- The collision modes for which supplemental restraint systems are activated are different among the SRS systems. For example, the driver air bag module, front passenger air bag module and front seat belt pre-tensioners are activated in a frontal collision but not in a side collision.
SRS Collision Modes
| SRS configuration | Frontal collision | Left side collision | Right side collision | Rollover |
|---|---|---|---|---|
| Drivers air bag module | x | - | - | - |
| Front passenger air bag module | x | - | - | - |
| Front LH seat belt pre-tensioner | x | - | - | x |
| Front RH seat belt pre-tensioner | x | - | - | x |
| Rear LH seat belt pre-tensioner | x | - | - | x |
| Rear RH seat belt pre-tensioner | x | - | - | x |
| Front side air bag module LH | - | x | - | - |
| Front side air bag module RH | - | - | x | - |
| Rear side air bag module LH | - | x | - | - |
| Rear side air bag module RH | - | - | x | - |
| LH side curtain air bag module | - | x | - | x |
| RH side curtain air bag module | - | - | x | x |
| Knee air bag module LH | x | - | - | - |
| Knee air bag module RH | x | - | - | - |
