Exploded View

2WD MODELS

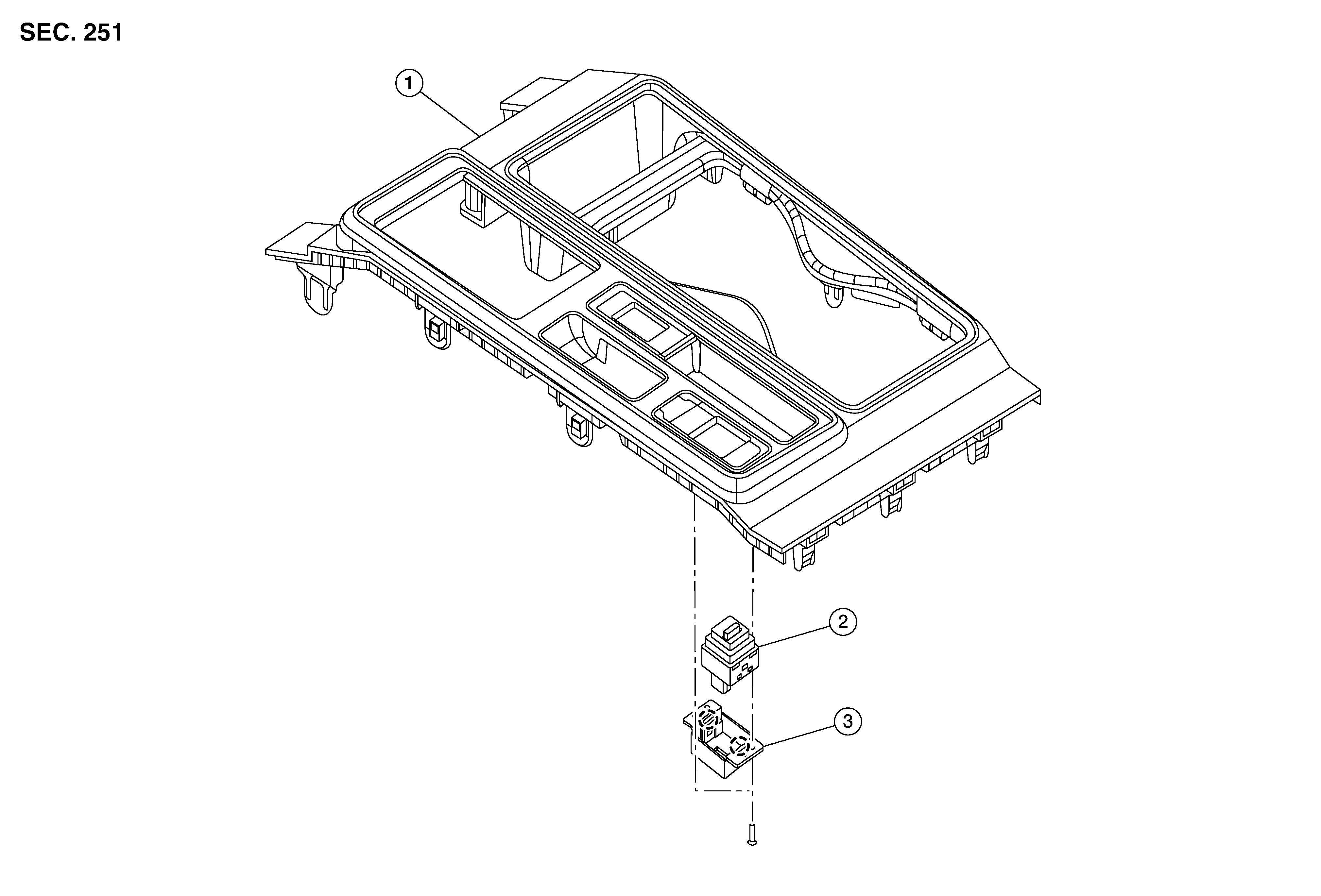

GNSDB45112Courtesy of NISSAN
1. Shift selector finisher 2. Drive mode switch 3. Drive mode switch bracket SYMBOL Pawl

4WD MODELS

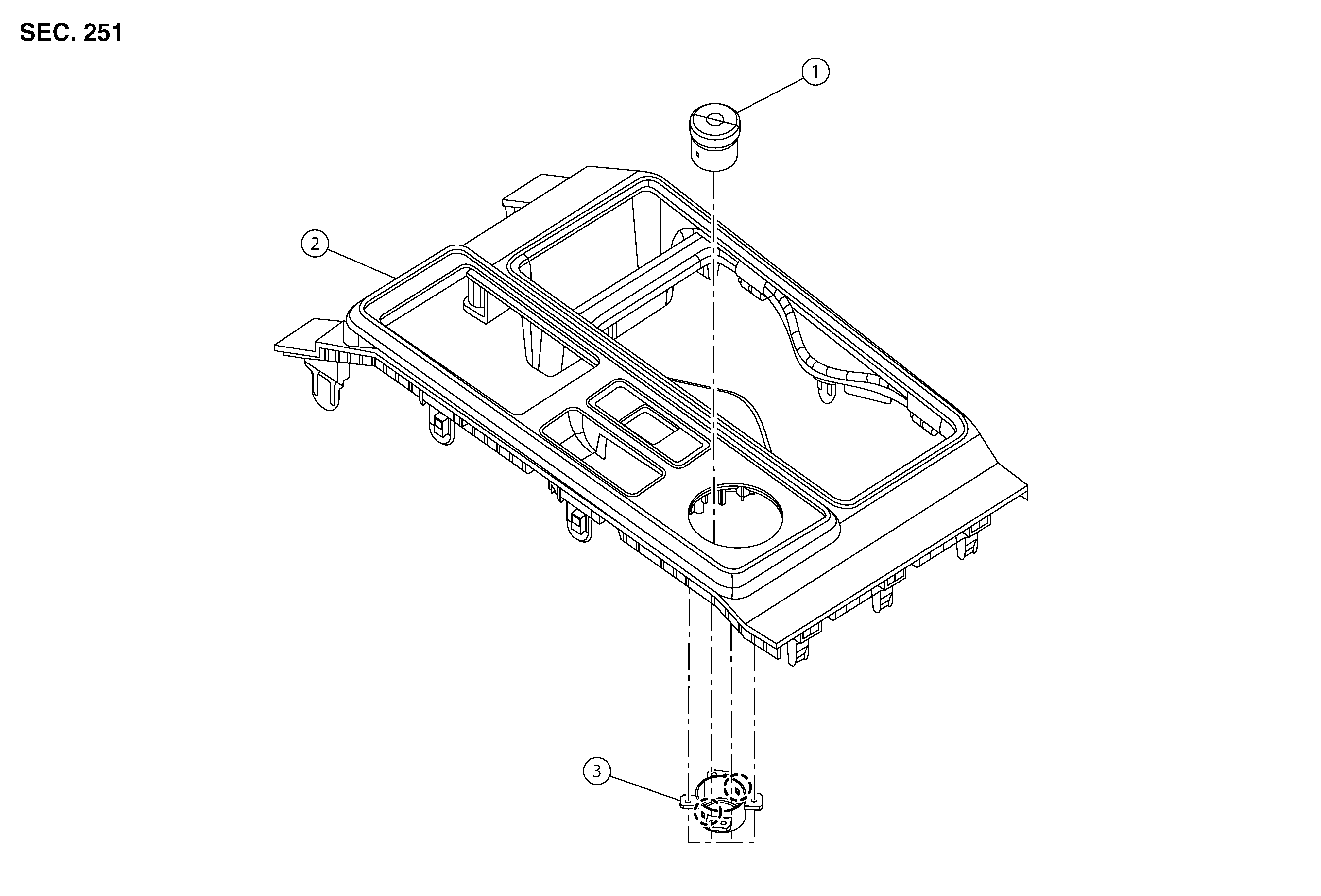

GNSDB45113Courtesy of NISSAN
1. Drive mode switch 2. Shift selector finisher 3. Drive mode switch bracket SYMBOL Pawl
