Drive Mode Select Switch

FUNCTIONS WITHIN THE SYSTEM

The drive mode selector changes the vehicle mode of the power train, combination meter, chassis function, driver assistant system, 4WD function.

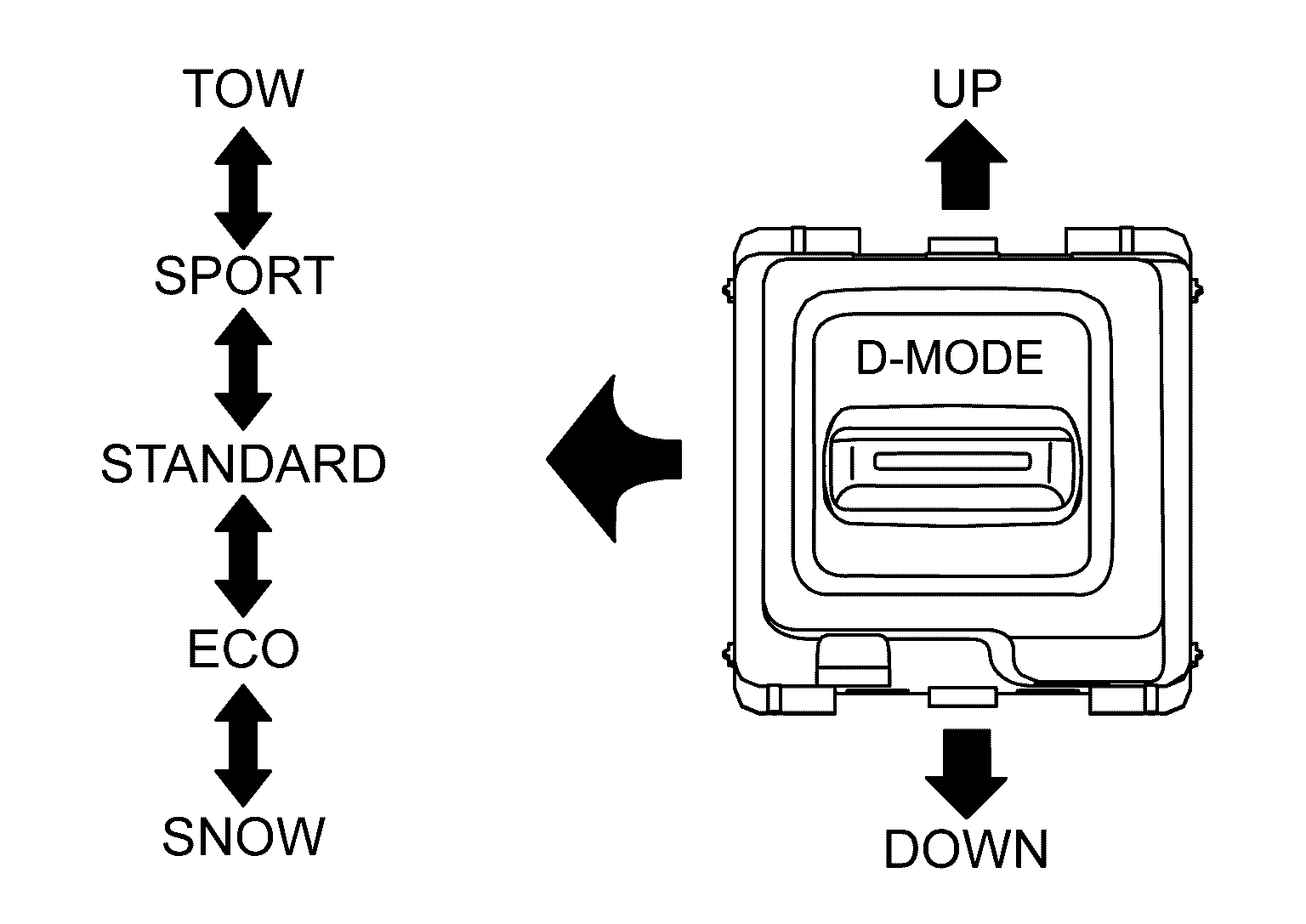

• 2WD models

  Courtesy of NISSAN

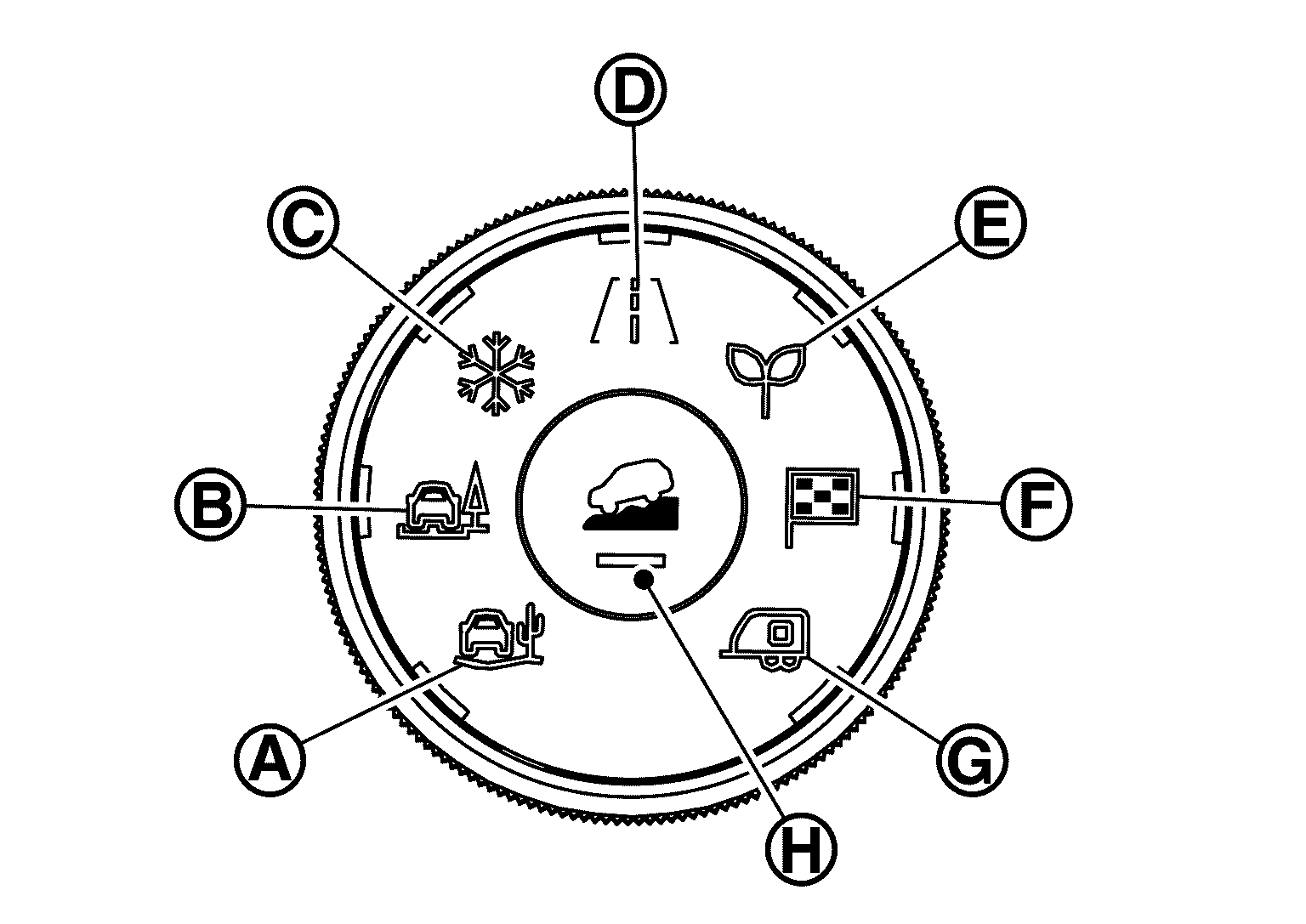

• 4WD models

  Courtesy of NISSAN

  :	SAND
  :	MUD/RUT
  :	SNOW
  :	AUTO
  :	ECO
  :	SPORT
  :	TOW
  :	hill descent control switch

INDIVIDUAL FUNCTIONS WITHIN THE SYSTEM

Drive mode select switch detected the mode status.

INDIVIDUAL OPERATION

Transmit the drive mode switch signal to BCM.

COMPONENT LOCATION

Refer to Component Location .
