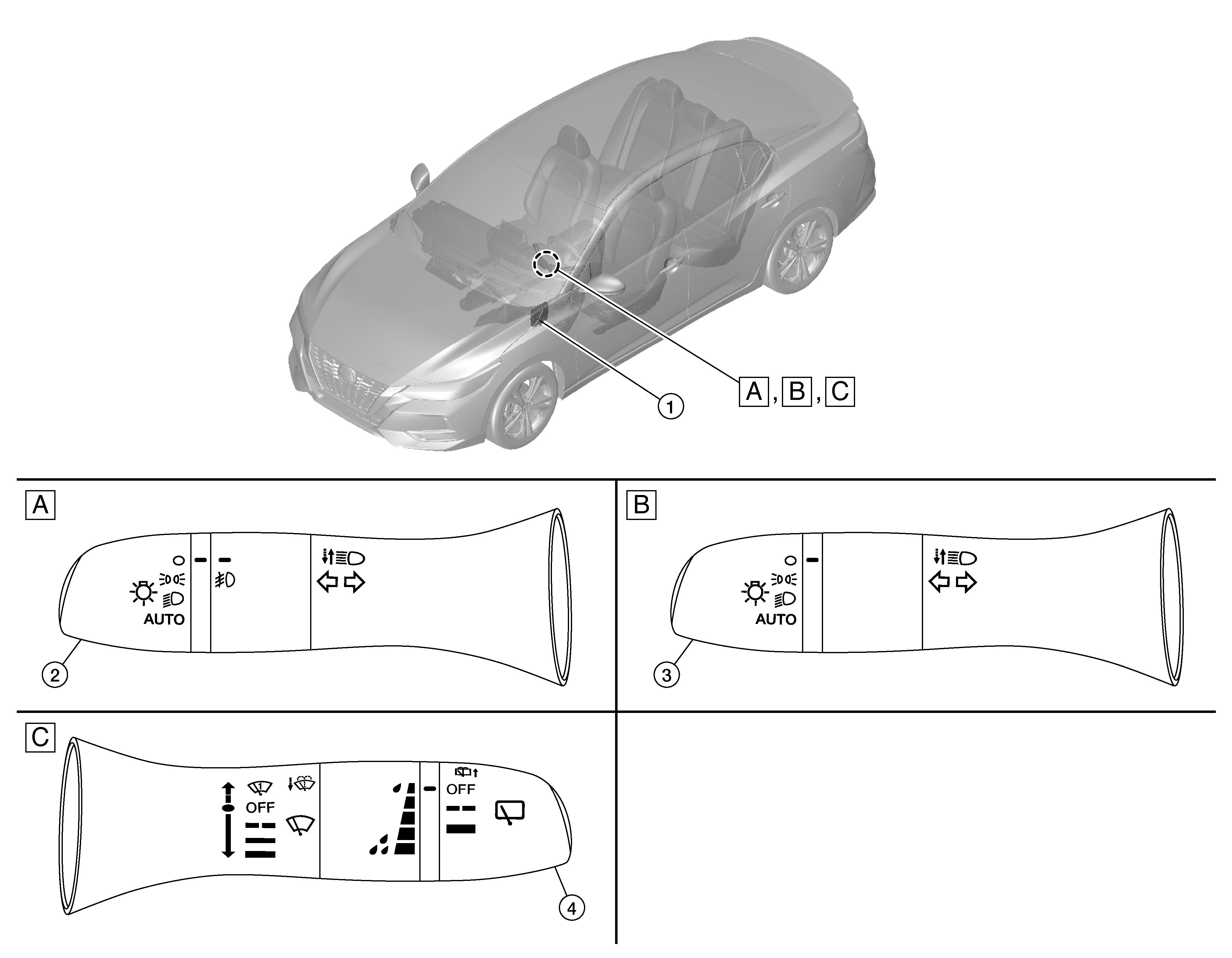

Component Location
| A. | Combination switch (lighting and turn signal) (with fog lamps) | B. | Combination switch (lighting and turn signal) (without fog lamps) | C. | Combination switch (wiper and washer) |
| No. | Component | Function |
|---|---|---|
| 1. | BCM (Body Control Module) | Refer to System Description . |
| 2. | Combination switch (lighting and turn signal) (with fog lamps) | Refer to System Description . |
| 3. | Combination switch (lighting and turn signal) (without fog lamps) | |
| 4. | Combination switch (wiper and washer) | Refer to System Description . |
