System Description
>>
Charging System
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

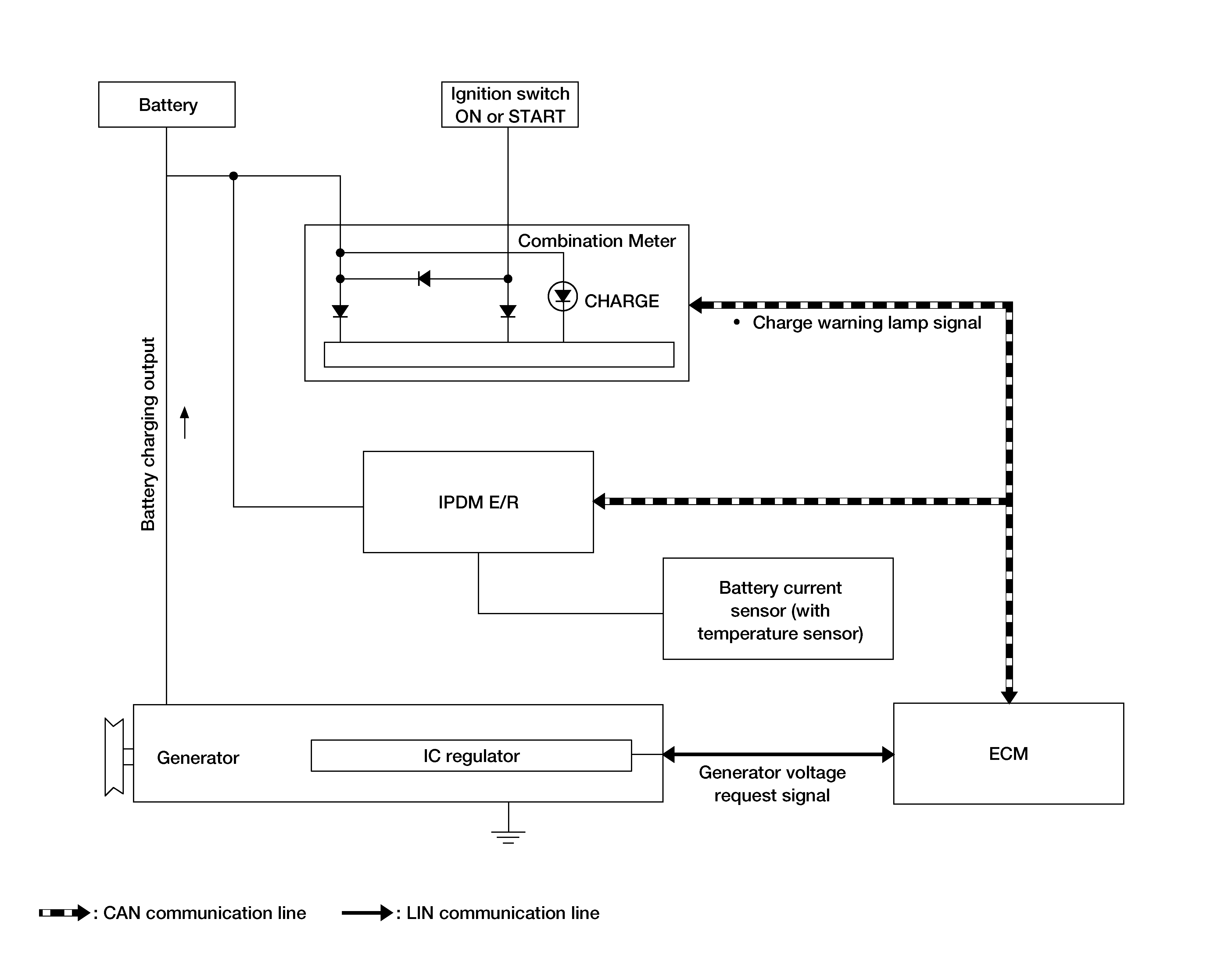

System Diagram
Courtesy of NISSAN
Courtesy of NISSAN
