Removal and Installation

CAUTION:

Never bend the pawl of power window switch finisher.

REMOVAL

Remove power window switch finisher. Refer to Removal and Installation .

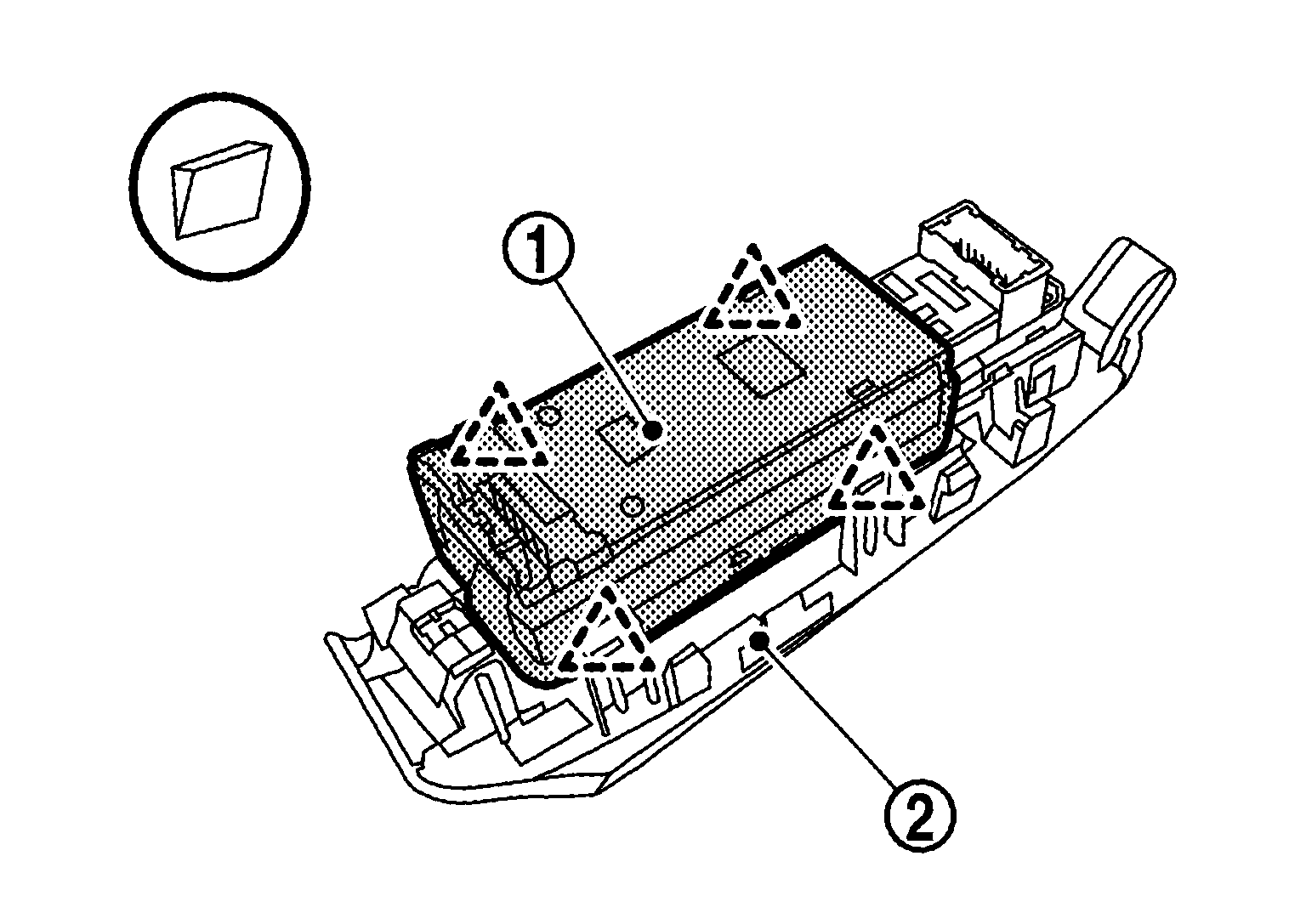

Disengage the pawls, and then remove power window main switch from power window switch finisher .

Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl

INSTALLATION

Note the following, and then install in the reverse order of removal.

NOTE:

If power window main switch is replaced or is removed, it is necessary to perform the initialization procedure. Refer to Work Procedure .
