Power Window Switch (Passenger Side)

COMPONENT FUNCTION WITHIN SYSTEM

Courtesy of NISSAN NORTH AMERICA, INC.

Power window switch (passenger side) controls passenger side power window.

INDIVIDUAL COMPONENT FUNCTION

• Transmits UP/DOWN signal to power window motor (passenger side).
• Power window switch (passenger side) controls AUTO UP/DOWN operation and anti - pinch function.

COMPONENT OPERATION

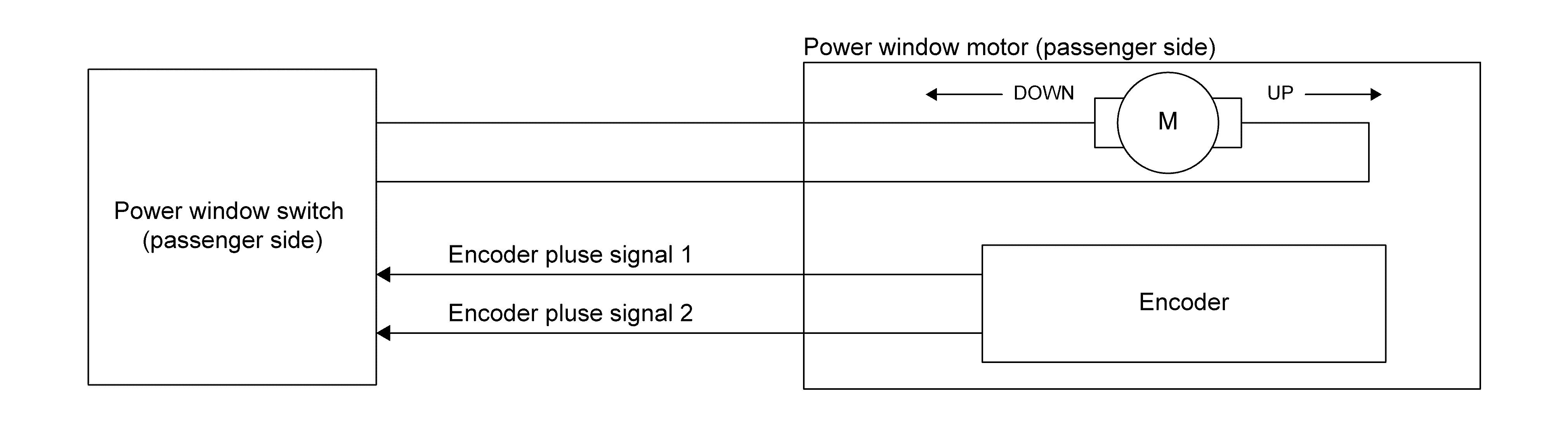

• When power window switch (passenger side) is operated, it transmits signal to front power window motor (passenger side).

  Courtesy of NISSAN NORTH AMERICA, INC.

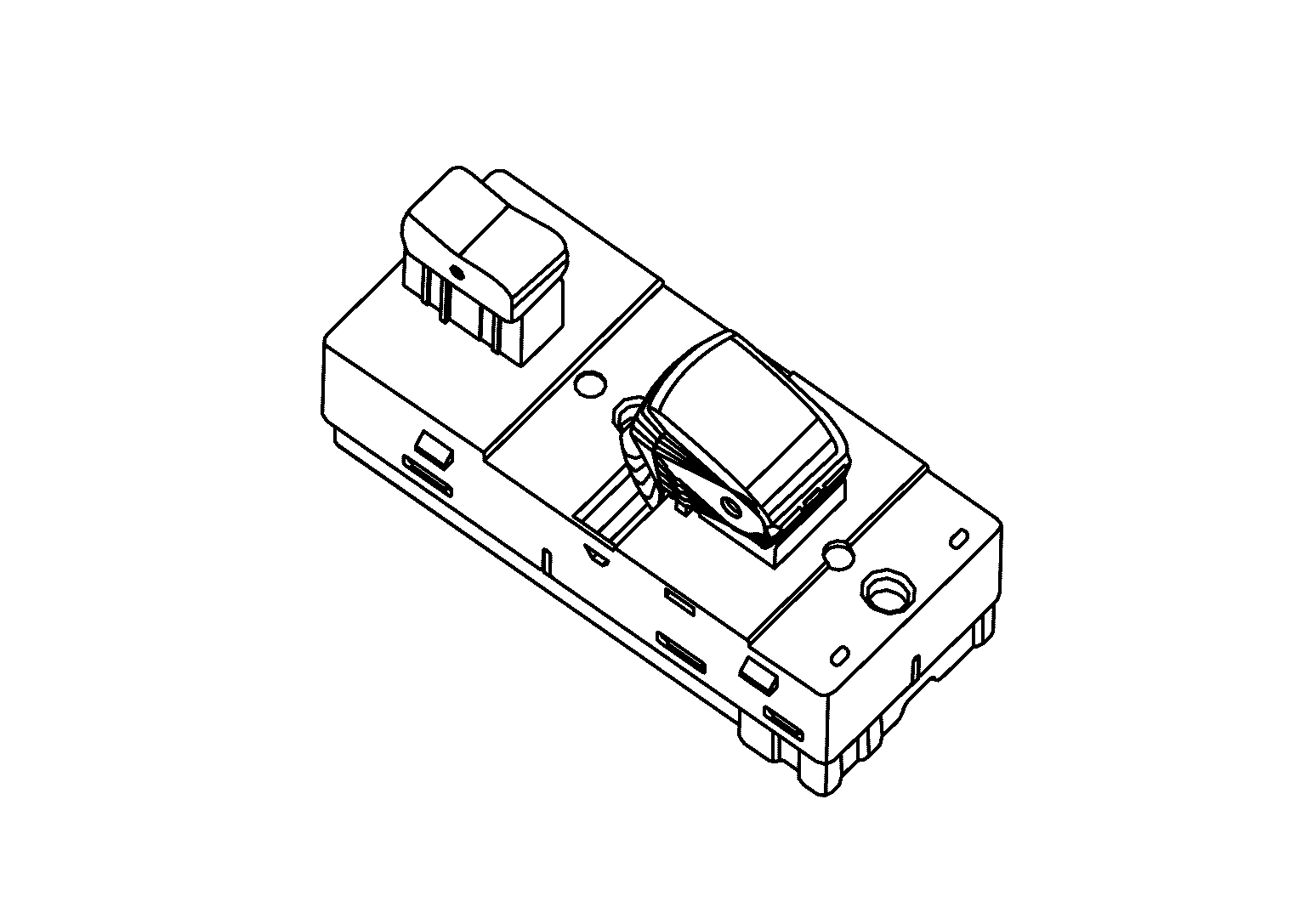

• Power window switch (passenger side) receives signal from power window main switch and BCM via power window serial link.

  Courtesy of NISSAN NORTH AMERICA, INC.

COMPONENT LOCATION

Power window switch (passenger side) is installed to door finisher (passenger side). Refer to Component Location .
