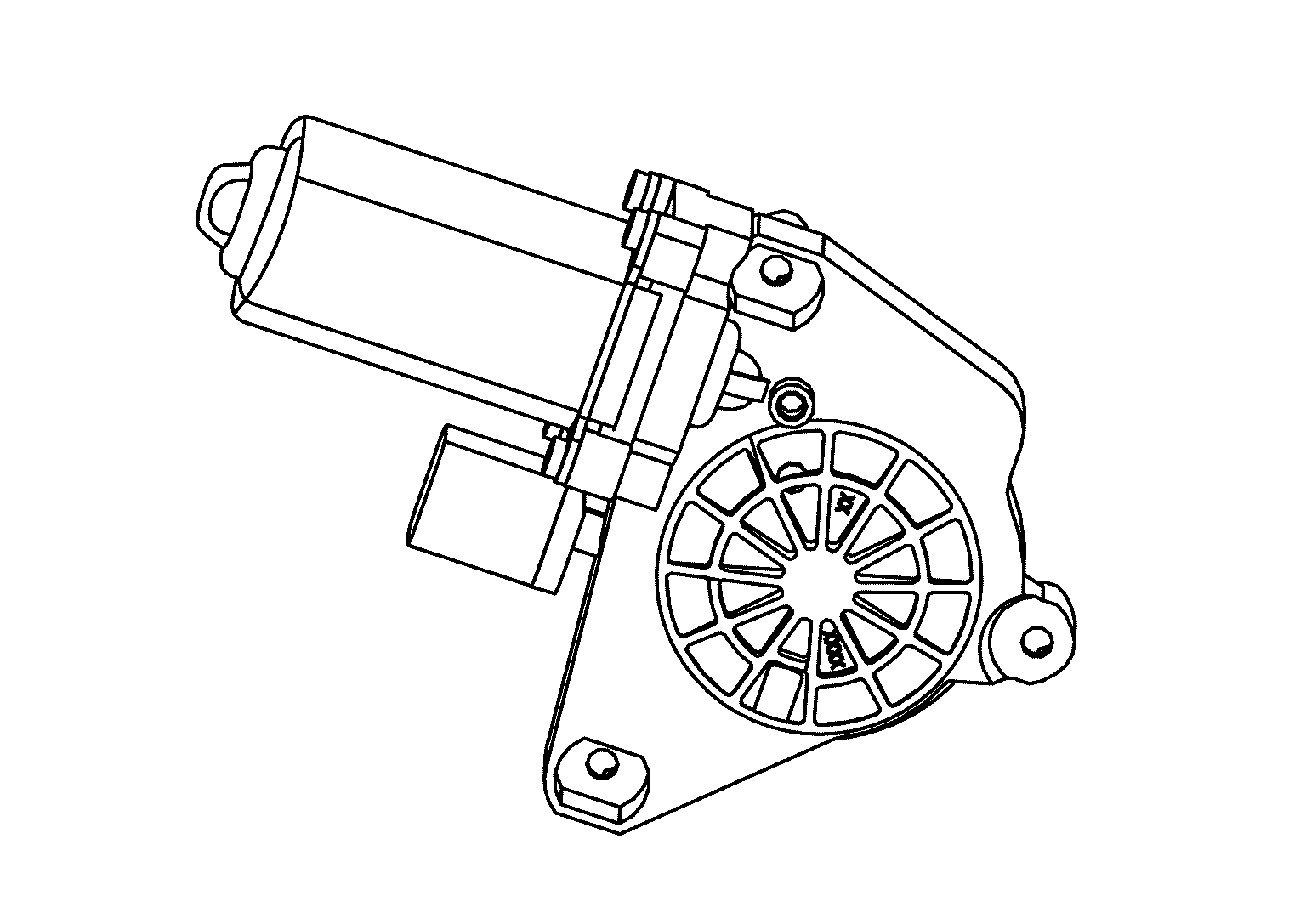

Power Window Motor (Driver Side)

Courtesy of NISSAN NORTH AMERICA, INC.

• The power window motor (driver side) opens/closes the driver side door glass when receiving the UP/DOWN signal from the power window main switch.

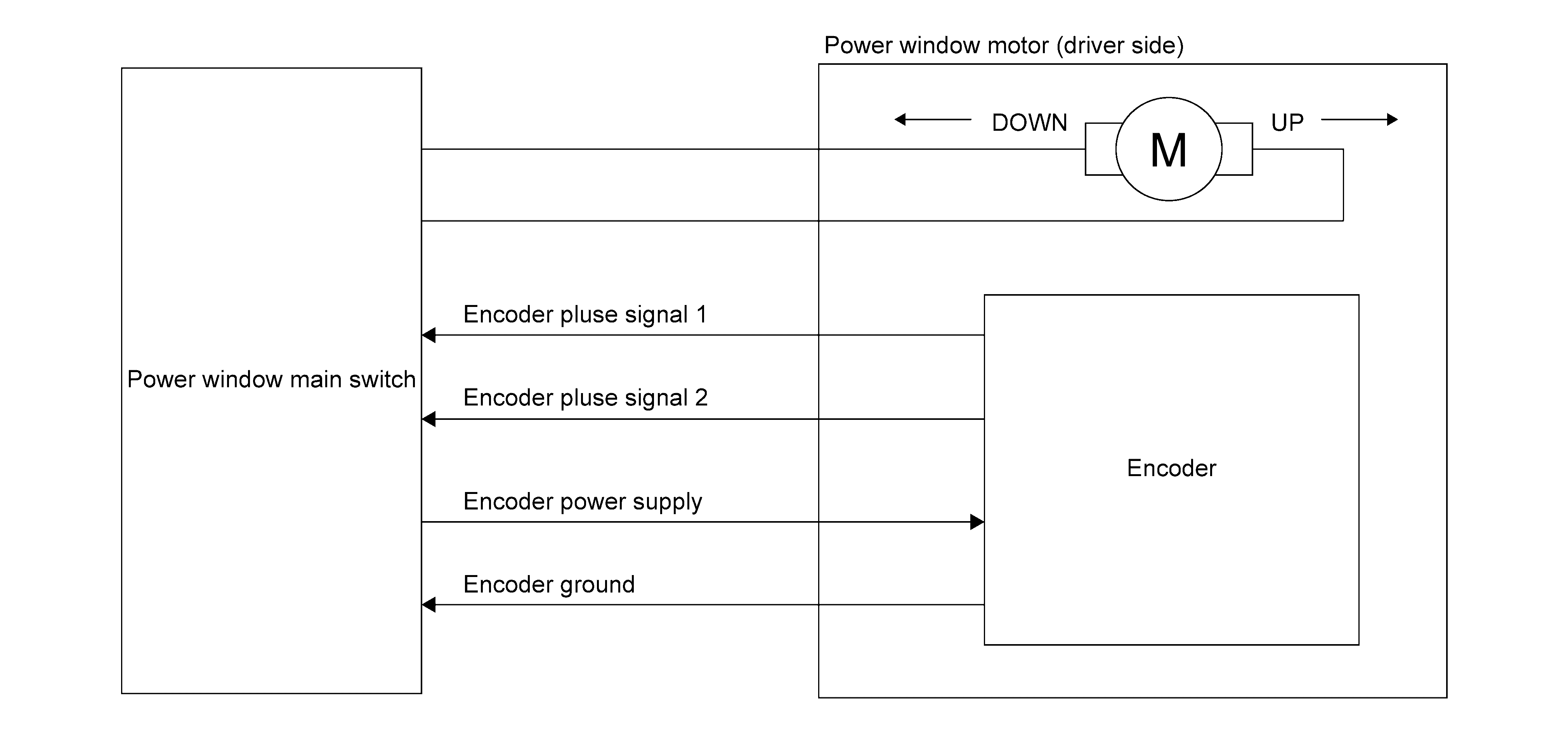

• The power window motor (driver side) converts the motor rotation state into pulse signals and transmits them as encoder signal 1 and encoder signal 2 to the power window main switch.

INDIVIDUAL COMPONENT FUNCTION

Opens/closes door glass.

COMPONENT OPERATION

The power window motor (driver side) opens/closes the driver side door glass when receiving the UP/DOWN signal from the power window main switch.

Courtesy of NISSAN NORTH AMERICA, INC.

COMPONENT LOCATION

Power window motor (driver side) is installed to door regulator. Refer to Component Location .
