Start/Stop Indicator Lamp
DESIGN/PURPOSE
The start/stop indicator lamp informs the driver of the status of the idle start/stop system.
- Turns ON while the idle start/stop system is operating.
- Blinks at low speed when a malfunction related to the idle start/stop system is detected after engine start.
BULB CHECK
Not applicable
SYNCHRONIZATION WITH WARNING CHIME
Applicable. For warning chime, Refer to System Description .
OPERATION AT COMBINATION METER CAN COMMUNICATION CUT-OFF OR UNUSUAL SIGNAL
For the operation for CAN communication blackout in the combination meter, Refer to Fail-Safe .

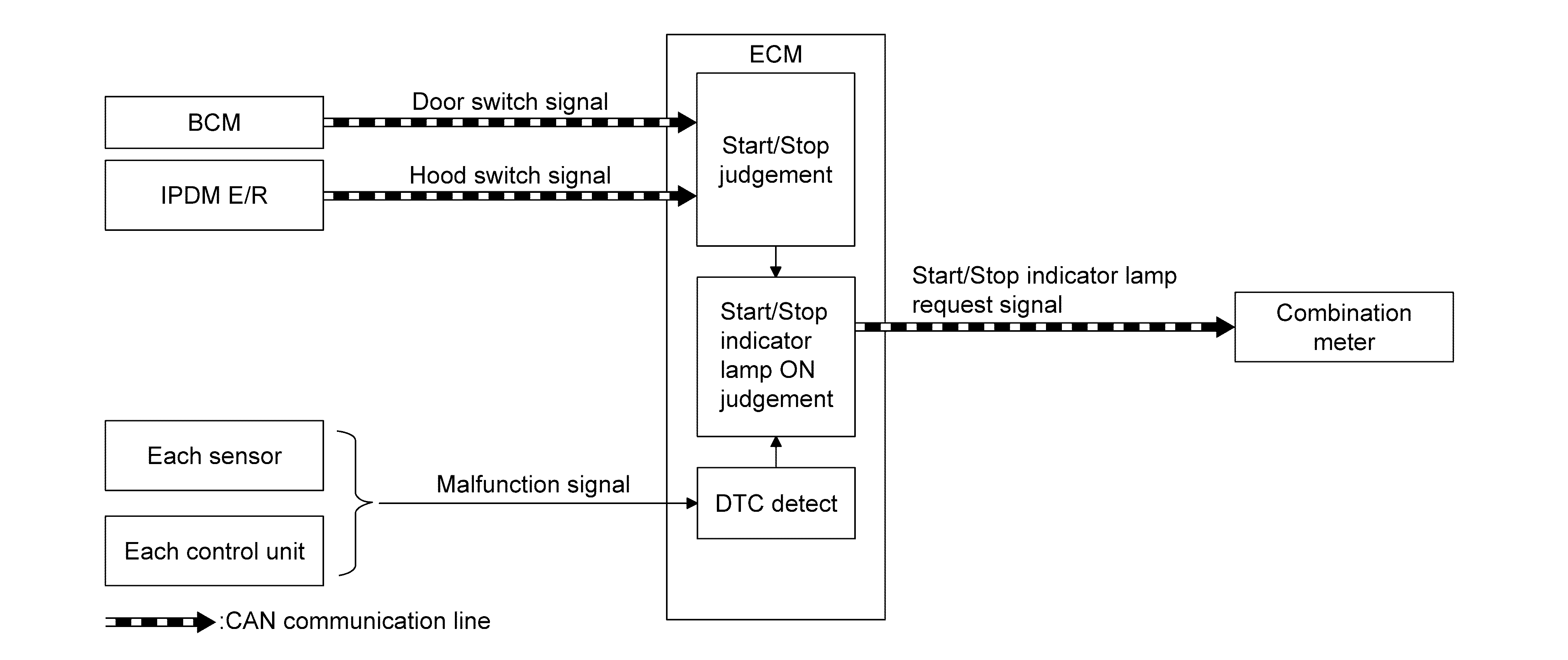

SYSTEM DIAGRAM
SIGNAL PATH
- ECM transmits a start/stop indicator lamp request signal to the combination meter via CAN communication when the idle start/stop system operation is permitted or a malfunction is detected.
- The combination meter turns ON or blinks the start/stop indicator lamp according to a signal transmitted from ECM.
LIGHTING CONDITION
- During idle start/stop system operation.
- DTC is detected. (Low speed blinking.)NOTE:
When the hood is opened, the idle start/stop system is cancelled and the engine cannot be restarted automatically. Accordingly, the engine needs to be started with the ignition key. For details, Refer to System Description .
SHUTOFF CONDITION
- The operation permit conditions of the idle start/stop system are not satisfied.
- After an engine restart.
- After erasing DTC.

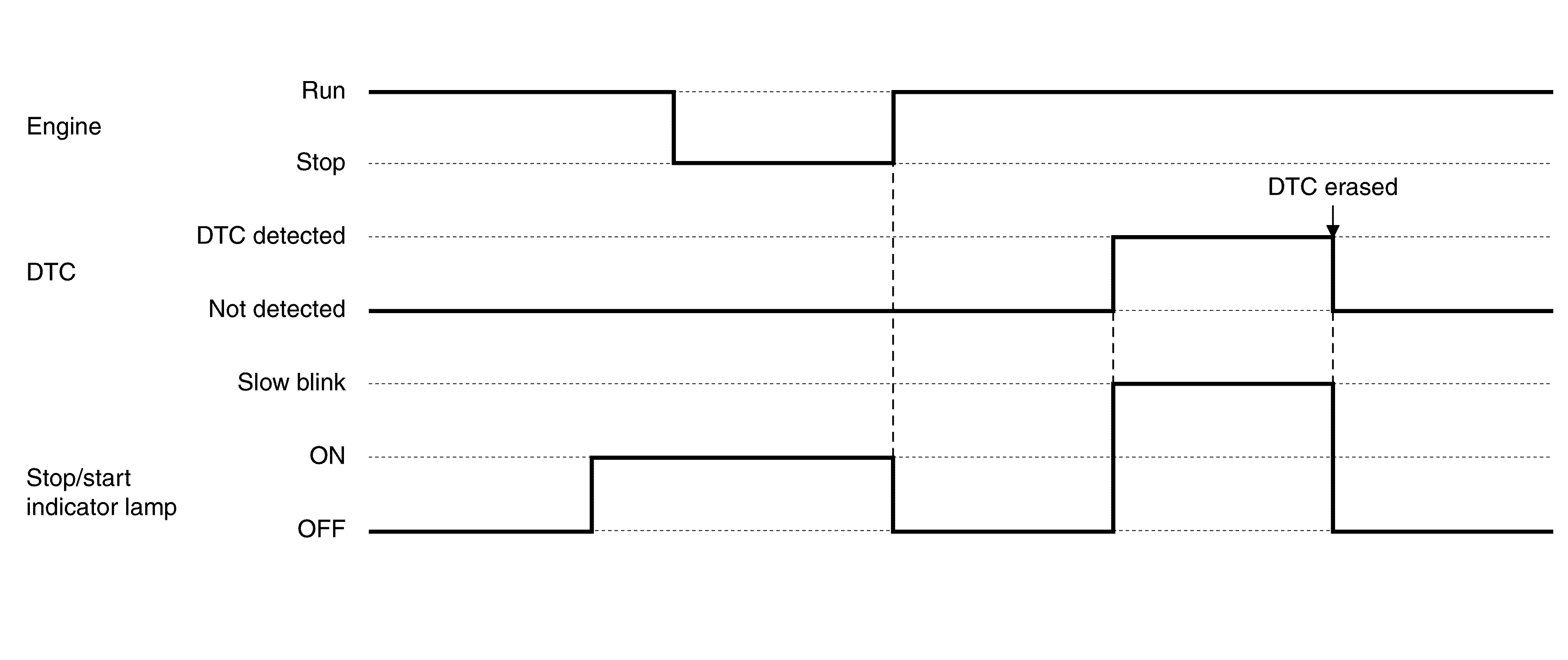

TIMING CHART
