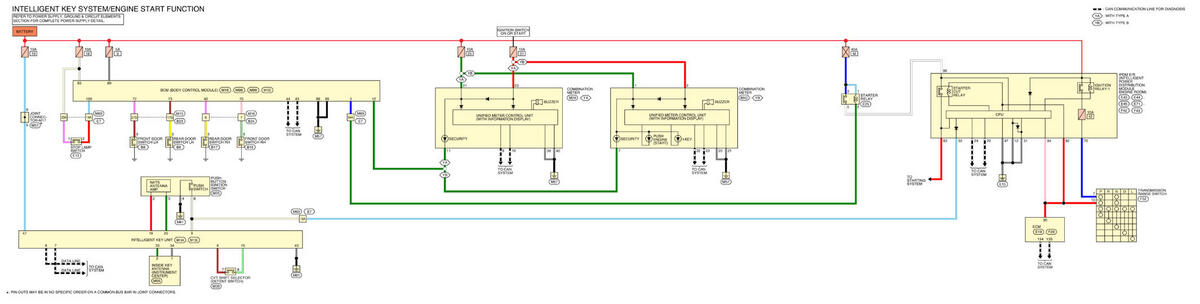

Intelligent Key System - Engine Start Function: Wiring Diagram

GNSW102388

Courtesy of NISSAN NORTH AMERICA, INC.
