Component Location

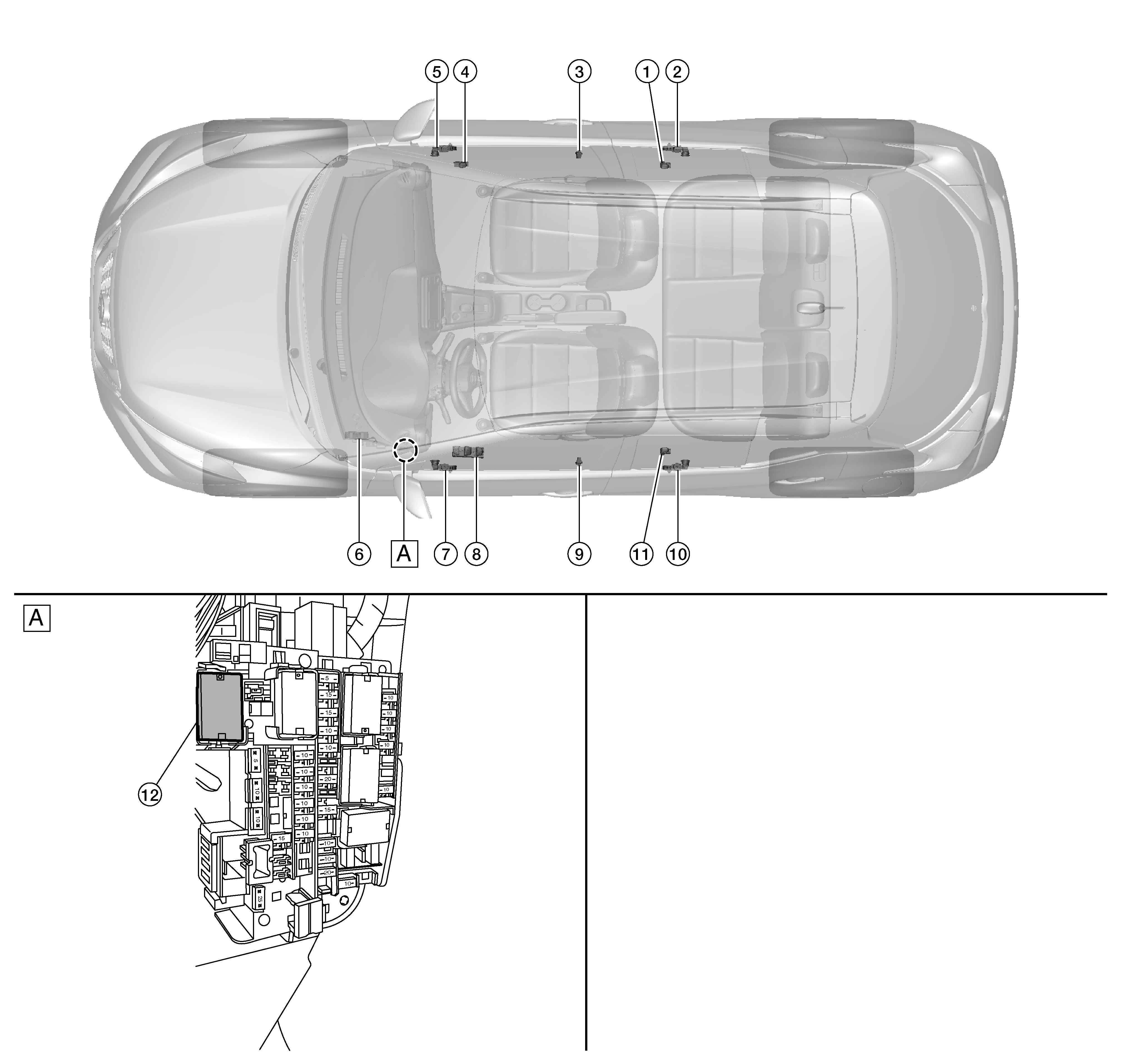

GNSDB109053Courtesy of NISSAN NORTH AMERICA, INC.
A. Fuse block (J/B) (view with front kicking plate LH removed)
No. Component Function
1. Rear power window switch RH Refer to Rear Power Window Switch LH/RH .
2. Rear power window motor RH Refer to Rear Power Window Motor LH/RH .
3. Front door switch RH Inputs door open/close condition to BCM. Refer to Front Door Switch for detailed component location. Refer to Front Door Switch for detailed component location.
4. Power window and door lock/unlock switch RH Refer to Power Window and Door Lock/Unlock Switch RH .
5. Front power window motor RH Refer to Front Power Window Motor LH/RH .
6. BCM (Body Control Module)
  • Supplies power supply to power window relay.
  • Controls retained power.
Refer to System Description .
7. Front power window motor LH Refer to Front Power Window Motor LH/RH .
8. Main power window and door lock/unlock switch Refer to Main Power Window and Door Lock/Unlock Switch .
9. Front door switch LH Inputs door open/close condition to BCM. Refer to Front Door Switch for detailed component location. Refer to Front Door Switch for detailed component location.
10. Rear power window motor LH Refer to Rear Power Window Motor LH/RH .
11. Rear power window switch LH Refer to Rear Power Window Switch LH/RH .
12. Power window relay Operates the power window system with the control signal from the BCM.
