Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

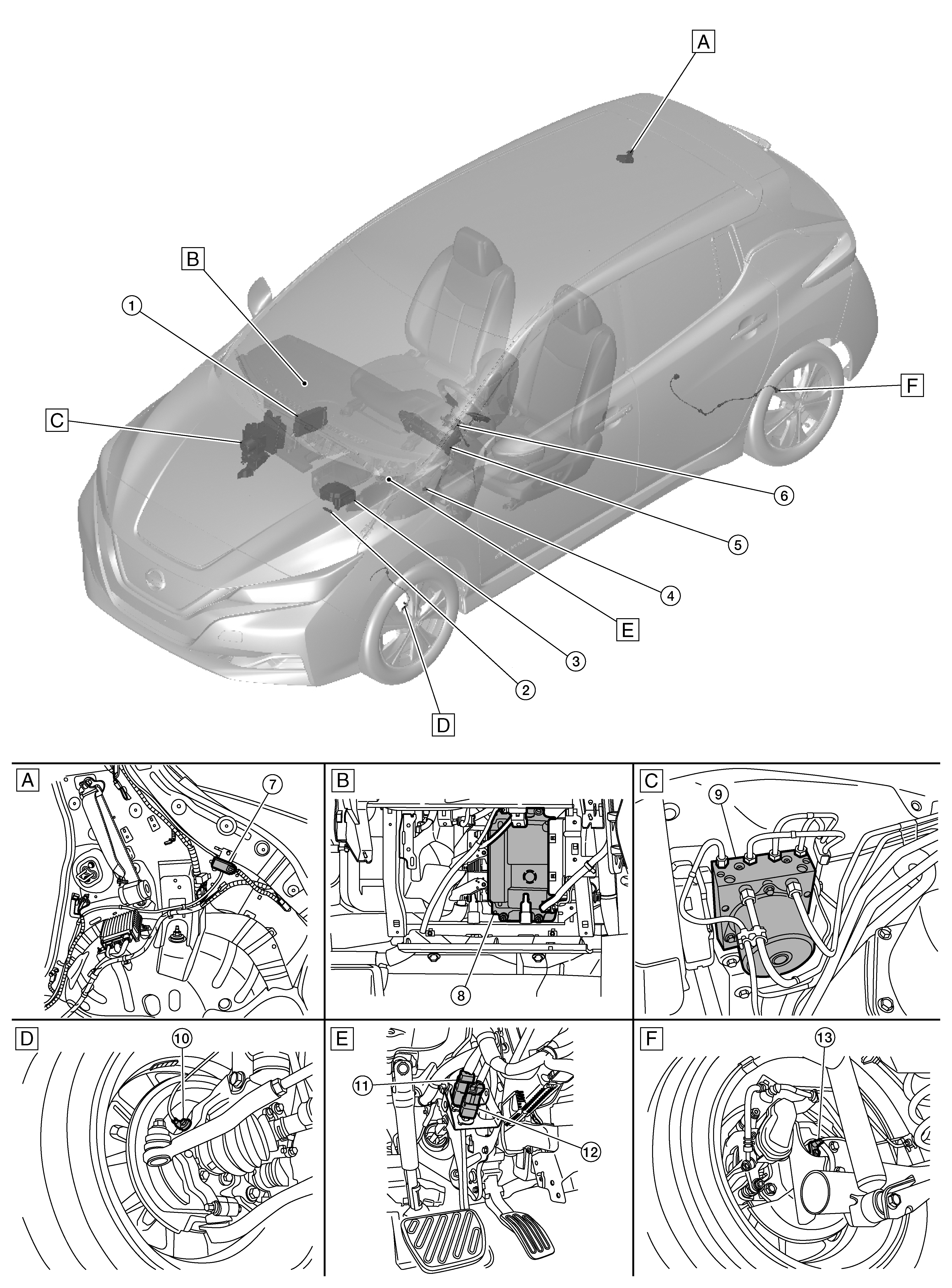

A.	Right rear of vehicle (view with right luggage side finisher removed)	B.	Ride side of instrument (view with instrument panel removed) (view with glove box removed)	C.	Motor room right side
D.	Left front wheel area	E.	Brake pedal area	F.	Left rear wheel area

No.	Component	Function
1.	BCM (Body Control Module)	Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication: Stop lamp switch signal Brake pedal position switch signal Cranking signal Power switch ON signal Refer to Component Location for detailed component location.
2.	Brake Fluid Level Switch	The brake fluid level switch is located on the left side of the master cylinder reservoir. Detects the brake fluid level in reservoir tank and transmits converted electric signal from combination meter to ABS actuator and electric unit (control unit) via CAN communication, when brake fluid level is the specified level or less. Refer to Component Location for detailed component location.
3.	Electrically-driven Intelligent brake unit	Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication: Electrically driven intelligent brake control signal Brake warning lamp request signal Brake system warning lamp request signal Refer to Component Location for detailed component location.
4.	Parking Brake Switch	Detects the operation status of parking brake switch and transmits converted electric signal from combination meter to ABS actuator and electric unit (control unit) via CAN communication. Refer to Component Location for detailed component location.
5.	Combination meter	Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication: Parking brake switch signal Brake fluid level switch signal Mainly receives the following signals to ABS actuator and electric unit (control unit) via CAN communication: ABS warning lamp signal Brake system warning lamp signal Brake warning lamp signal VDC warning lamp signal VDC OFF indicator lamp signal Refer to Component Location for detailed component location.
6.	Steering angle sensor	Refer to Component Description .
7.	Chassis control module	Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication: Intelligent trace control signal Active ride control signal Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN communication: Hill start assist display request signal Mainly transmits the following signals to combination meter via CAN communication: Hill start assist display request signal Refer to Component Location for detailed component location.
8.	VCM (Vehicle Control Module)	Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication: Accelerator pedal position signal VCM control signal Shift position signal Refer to Component Location (60 kWh Li-ion battery) or Component Location (40 kWh Li-ion battery) for detailed component location.
9.	ABS (Anti-lock Braking System) actuator and electric unit (control unit)	Refer to Component Description .
10.	Front wheel sensor LH (RH similar)	Refer to Component Description .
11.	Stop lamp switch	Refer to Component Description .
12.	Brake pedal position switch	Refer to Component Description .
13.	Rear wheel sensor LH (RH similar)	Refer to Component Description .
