Exploded View

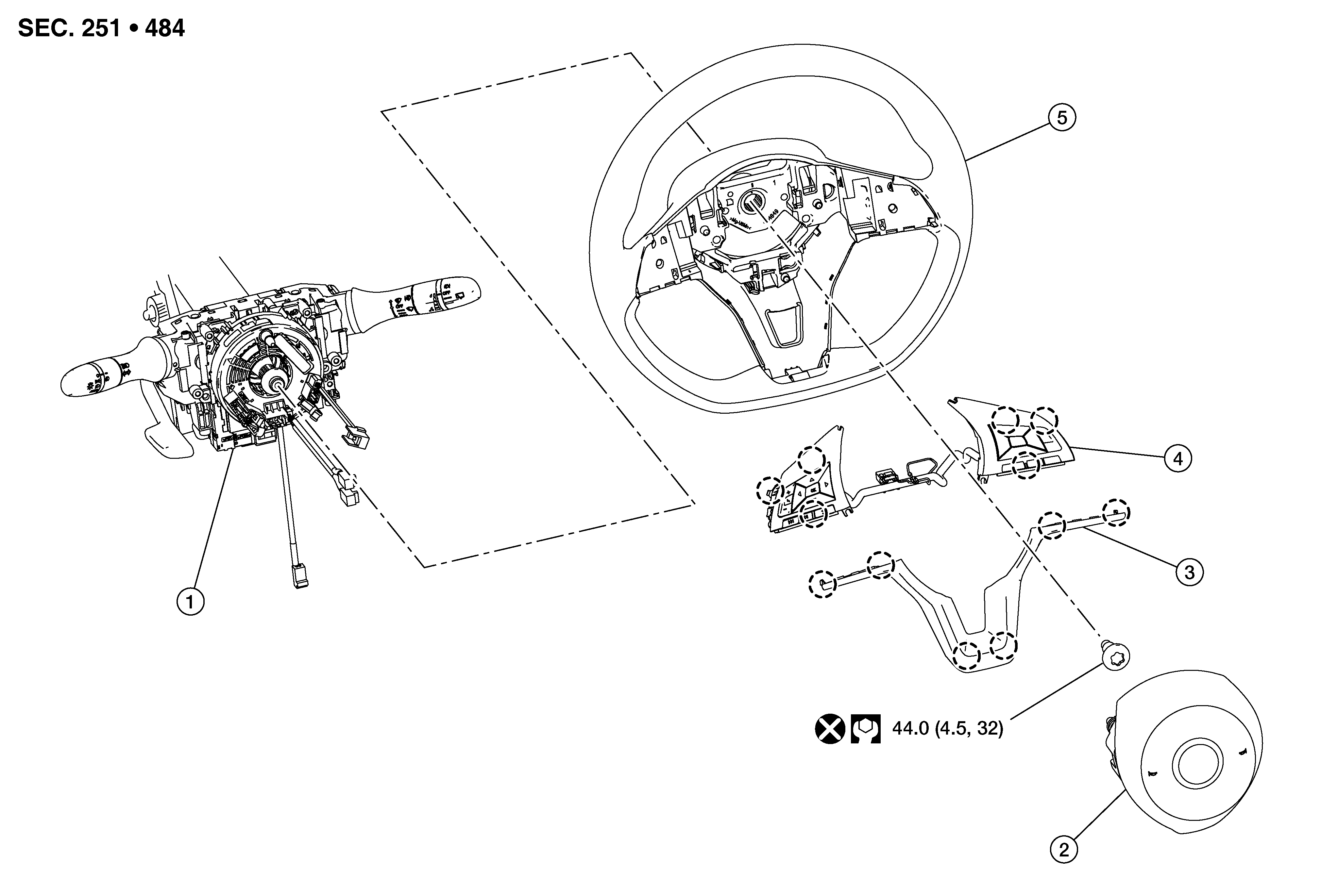

Fig 1: Steering Wheel With Torque Specifications
GNSDB133351Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering column assembly 2. Driver air bag module 3. Finisher
4. Steering switches 5. Steering wheel SYMBOL Pawl
