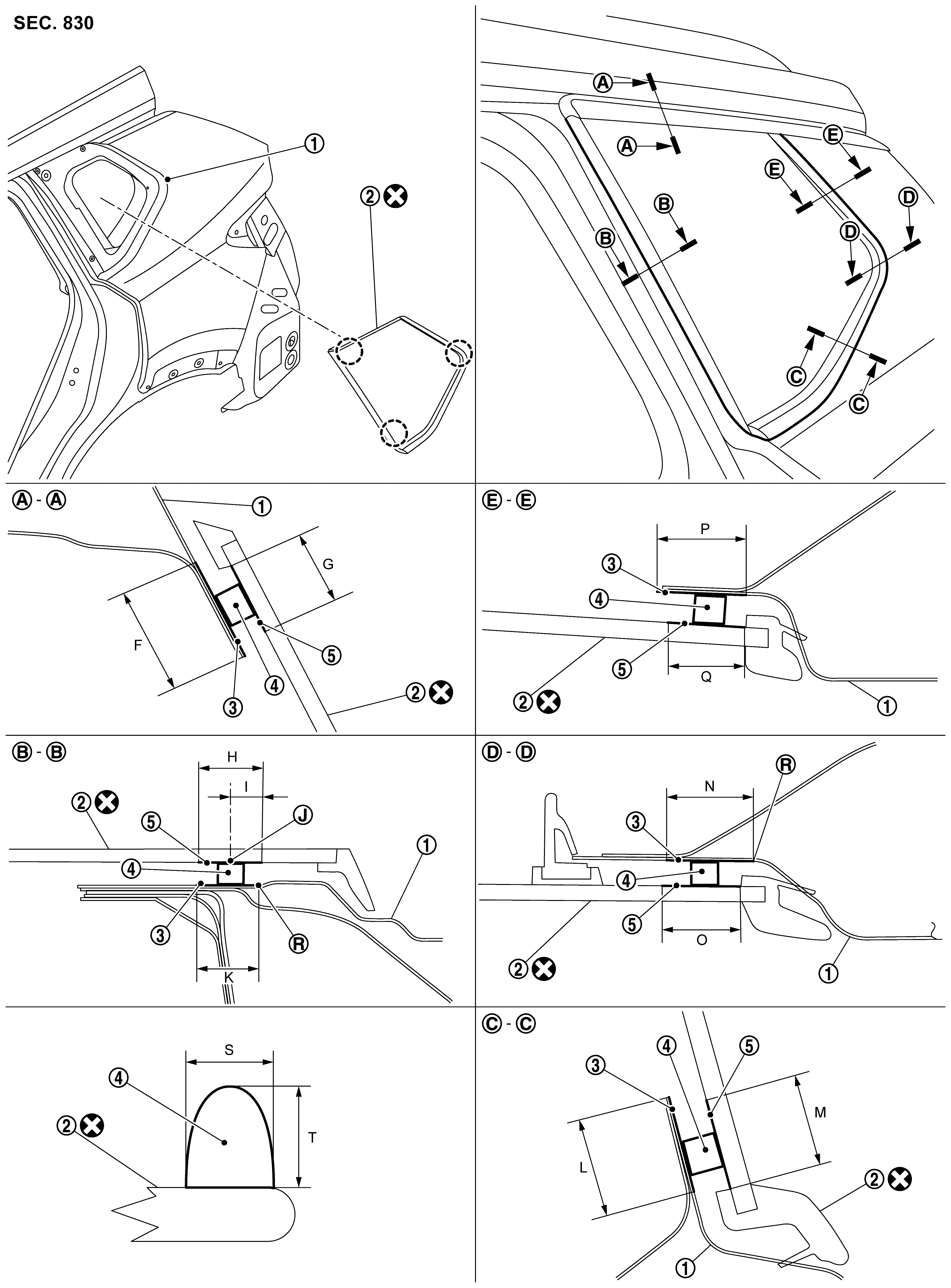

Exploded View
| Body side outer panel | Side window glass | Painted surface primer | |||
| Adhesive | Glass primer | ||||
| : Side window glass matching mark | |||||
| : R end | |||||
| : Clip | |||||
| : Always replace after every disassembly. | |||||
Unit: mm (in)
| Portion | Primer range | Adhesive range | |||
|---|---|---|---|---|---|
| S | T | ||||
| Side window glass - Body side outer panel | F | 22.0 (0.870) | 7.0 (0.28) | 12.0 (0.47) | |
| G | 17.0 (0.670) | ||||
| H | 17.0 (0.670) | ||||
| I | 8.5 (0.335) | ||||
| K | 17.0 (0.670) | ||||
| L | 19.1 (0.752) | ||||
| M | 17.0 (0.670) | ||||
| N | 18.5 (0.728) | ||||
| O | 17.0 (0.670) | ||||
| P | 19.9 (0.783) | ||||
| Q | 17.0 (0.670) | ||||
