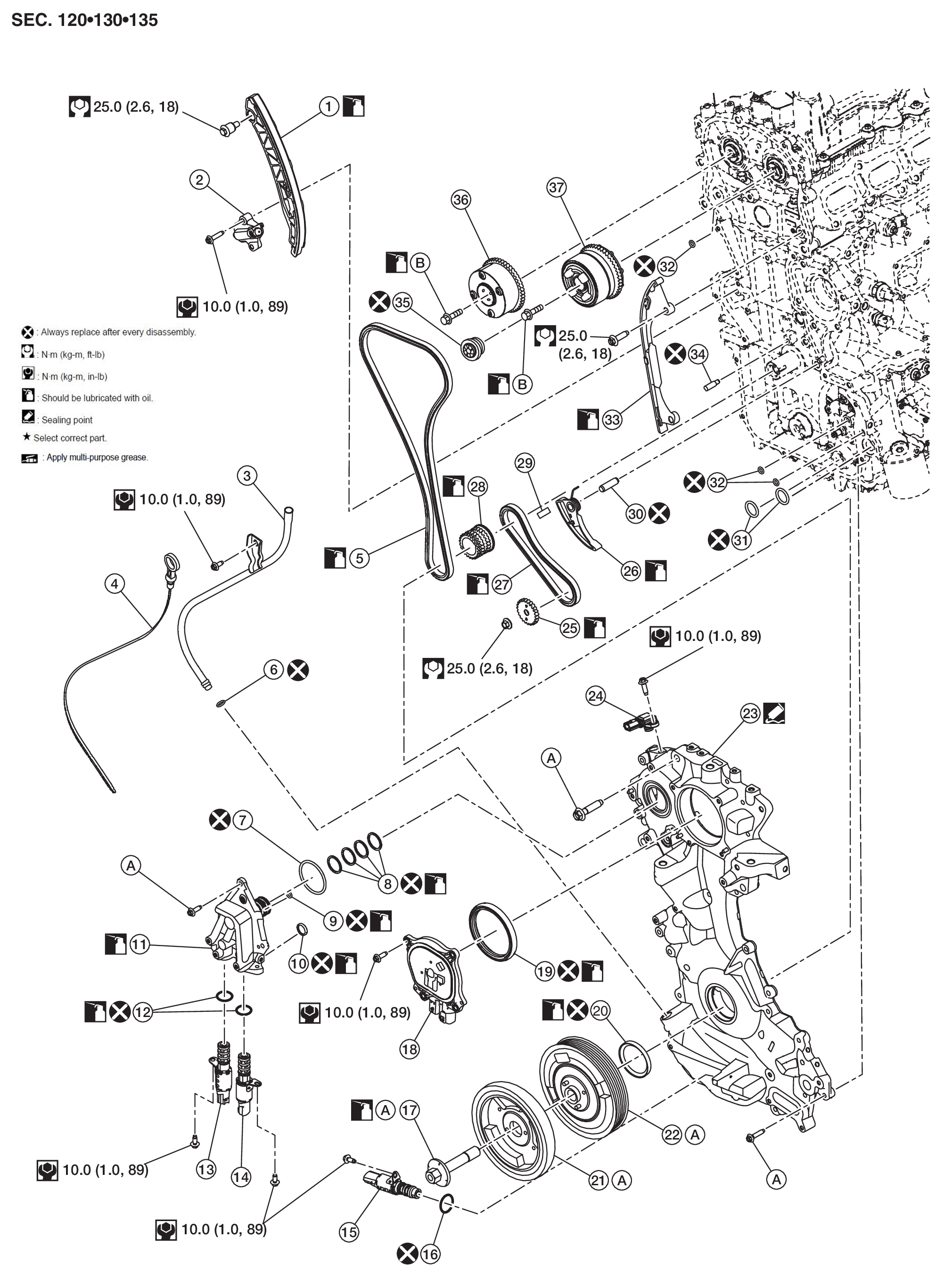

| 1. |
Slack guide |
2. |
Timing chain tensioner |
3. |
Oil level gauge guide |
| 4. |
Oil level gauge |
5. |
Timing chain |
6. |
O-ring |
| 7. |
O-ring |
8. |
O-ring |
9. |
O-ring |
| 10. |
Oil filter |
11. |
Valve timing control cover |
12. |
O-ring |
| 13. |
Exhaust valve timing control solenoid valve |
14. |
Exhaust valve timing intermediate lock control solenoid valve |
15. |
Engine oil pressure control solenoid valve |
| 16. |
O-ring |
17. |
Crankshaft pulley bolt |
18. |
Electric intake valve timing control actuator |
| 19. |
Camshaft sprocket (INT) oil seal |
20. |
Front oil seal |
21. |
Crankshaft pulley damper |
| 22. |
Crankshaft pulley |
23. |
Front cover |
24. |
Crankcase Pressure Sensor |
| 25. |
Oil pump sprocket |
26. |
Oil pump drive chain tensioner |
27. |
Oil pump drive chain |
| 28. |
Crankshaft sprocket |
29. |
Crankshaft key |
30. |
Tensioner arm shaft |
| 31. |
O-ring |
32. |
O-ring |
33. |
Tension guide |
| 34. |
Timing chain oil jet |
35. |
Electric intake valve timing control actuator target |
36. |
Camshaft sprocket (EXH) |
| 37. |
Camshaft sprocket (INT) |
A |
Comply with the assembly procedure when tightening. Refer to Removal and Installation. |
B |
Comply with the assembly procedure when tightening. Refer to Removal and Installation. |
