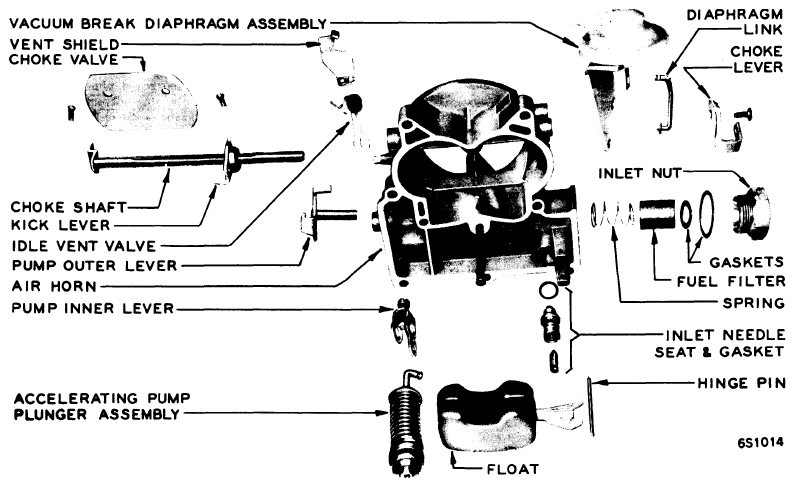

Accelerating Pump Assembly
Lubricate pump shaft with Lubriplate or light grease when installing in bowl cover. Make certain that pump check balls are not interchanged. Inlet check ball is Aluminum, discharge check ball is steel.
NOTE:
No inlet check ball is used in Chevrolet 2GV carburetors (fuel inlet is through 2-piece pump plunger assembly).
