Electronic Skid Control System: Testing: Notes

CAUTION: Never operate system unless controller has a good ground. Never reverse battery polarity. Always connect battery booster cables positive to positive and negative to negative. Failure to observe precautions may result in damage to circuitry in controller.

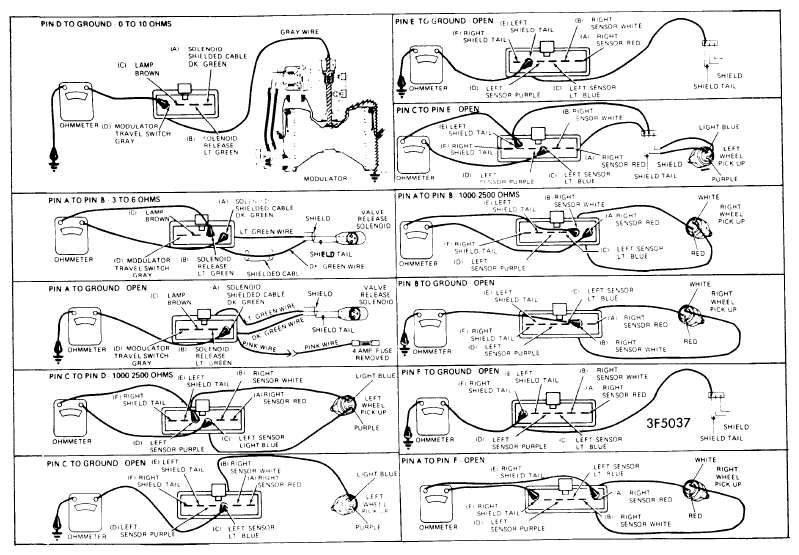

Fig 1: RESISTANCE & CONTINUITY CHECKS (TORONADO & ELDORADO)
G09321195Courtesy of GENERAL MOTORS COMPANY

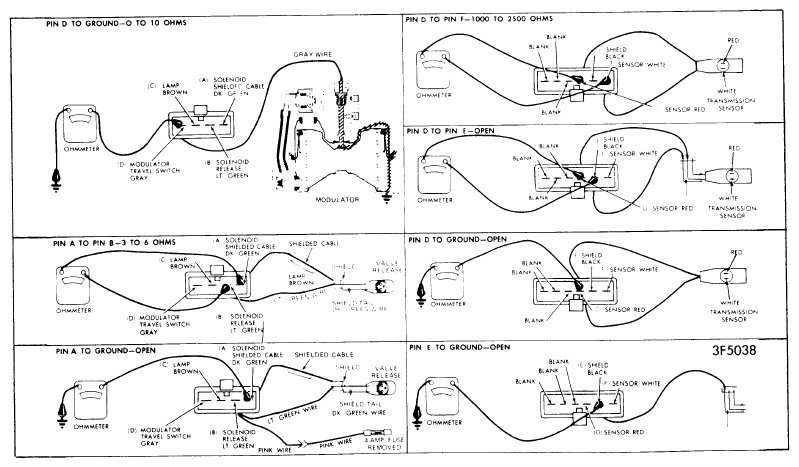

Fig 2: RESISTANCE & CONTINUITY CHECKS (CADILLAC EXC. ELDORADO)
G09321196Courtesy of GENERAL MOTORS COMPANY
