Base Ignition Timing Specifications

Fig 1:

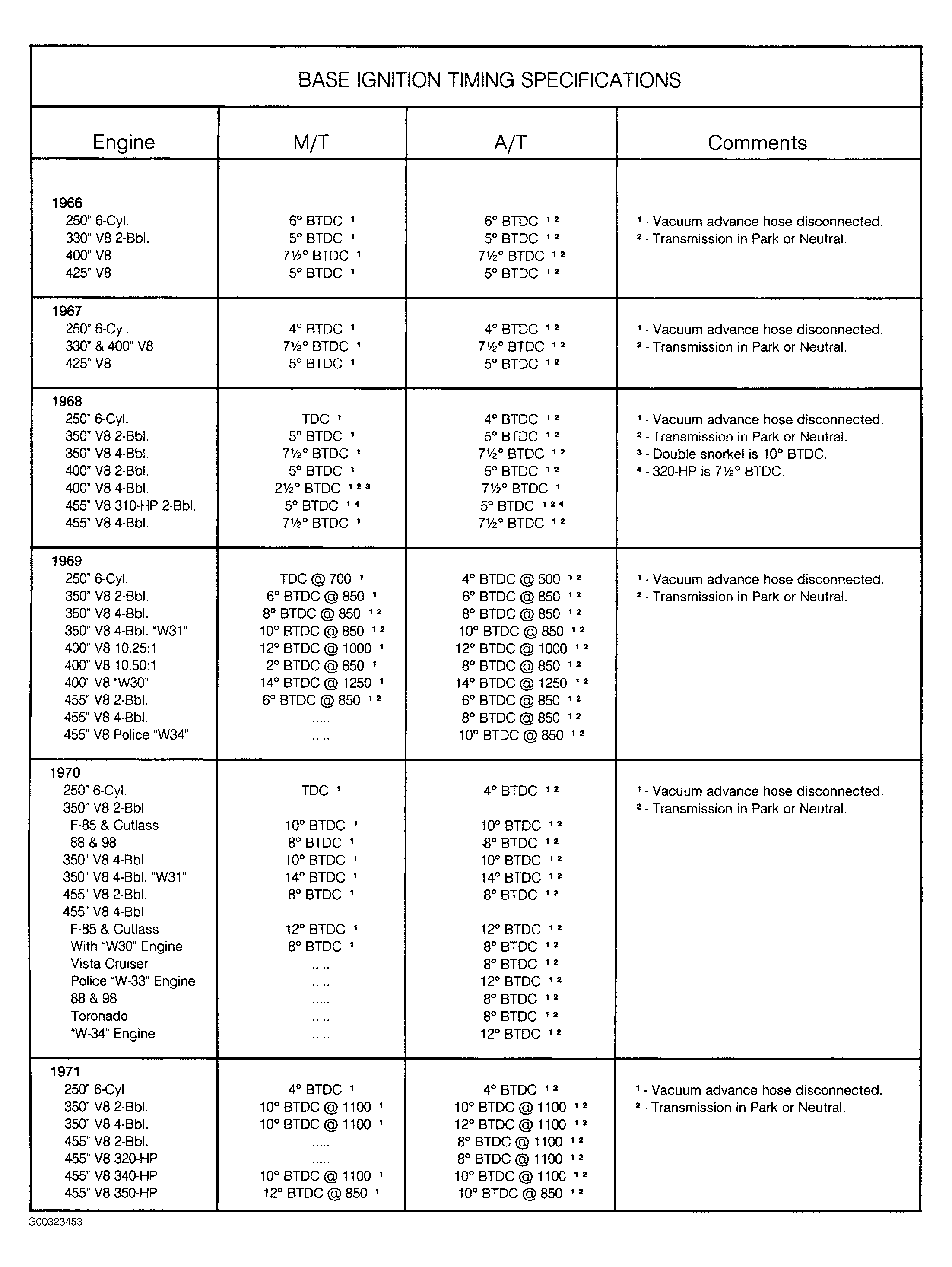

G00323453

Fig 2:

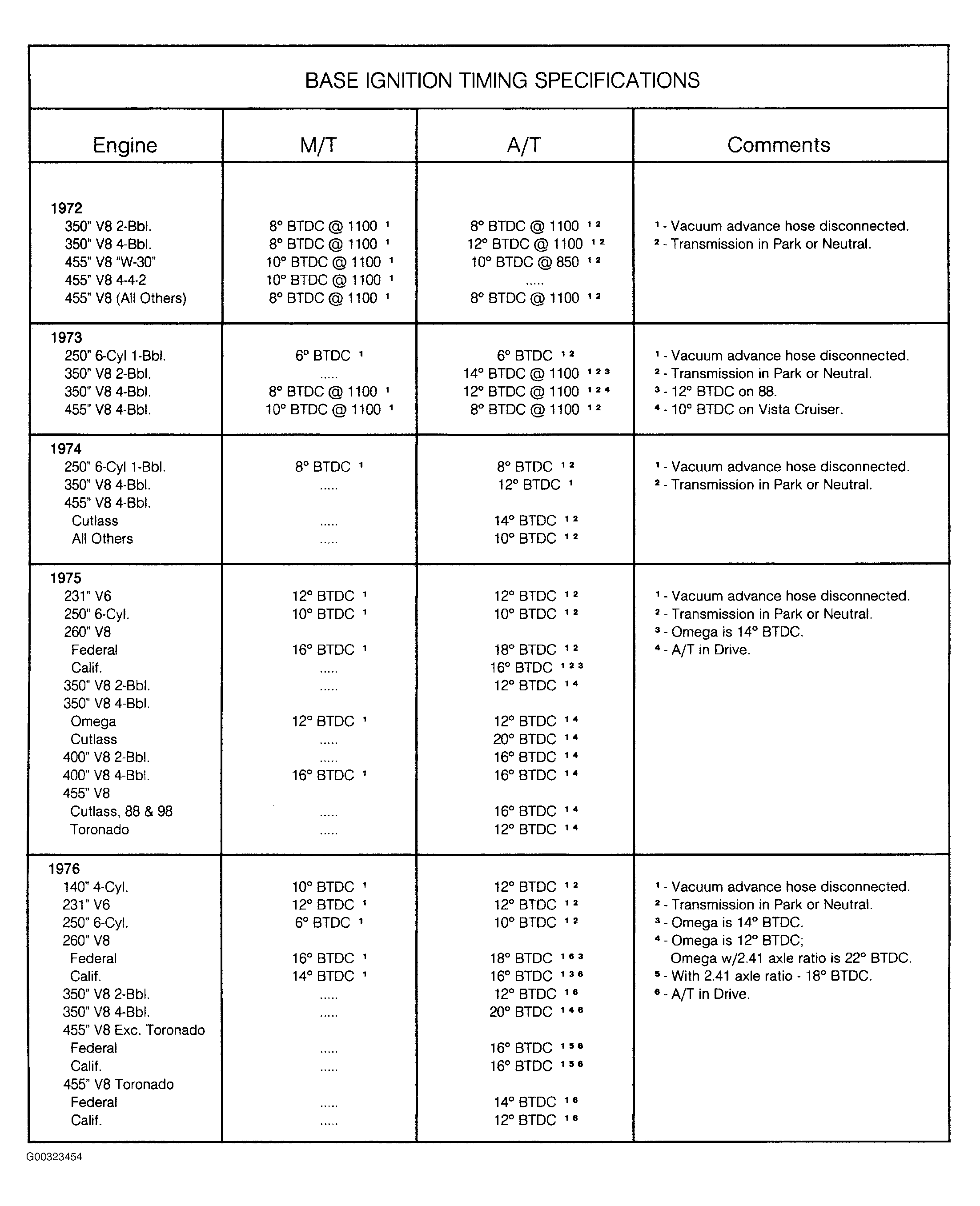

G00323454

Fig 3:

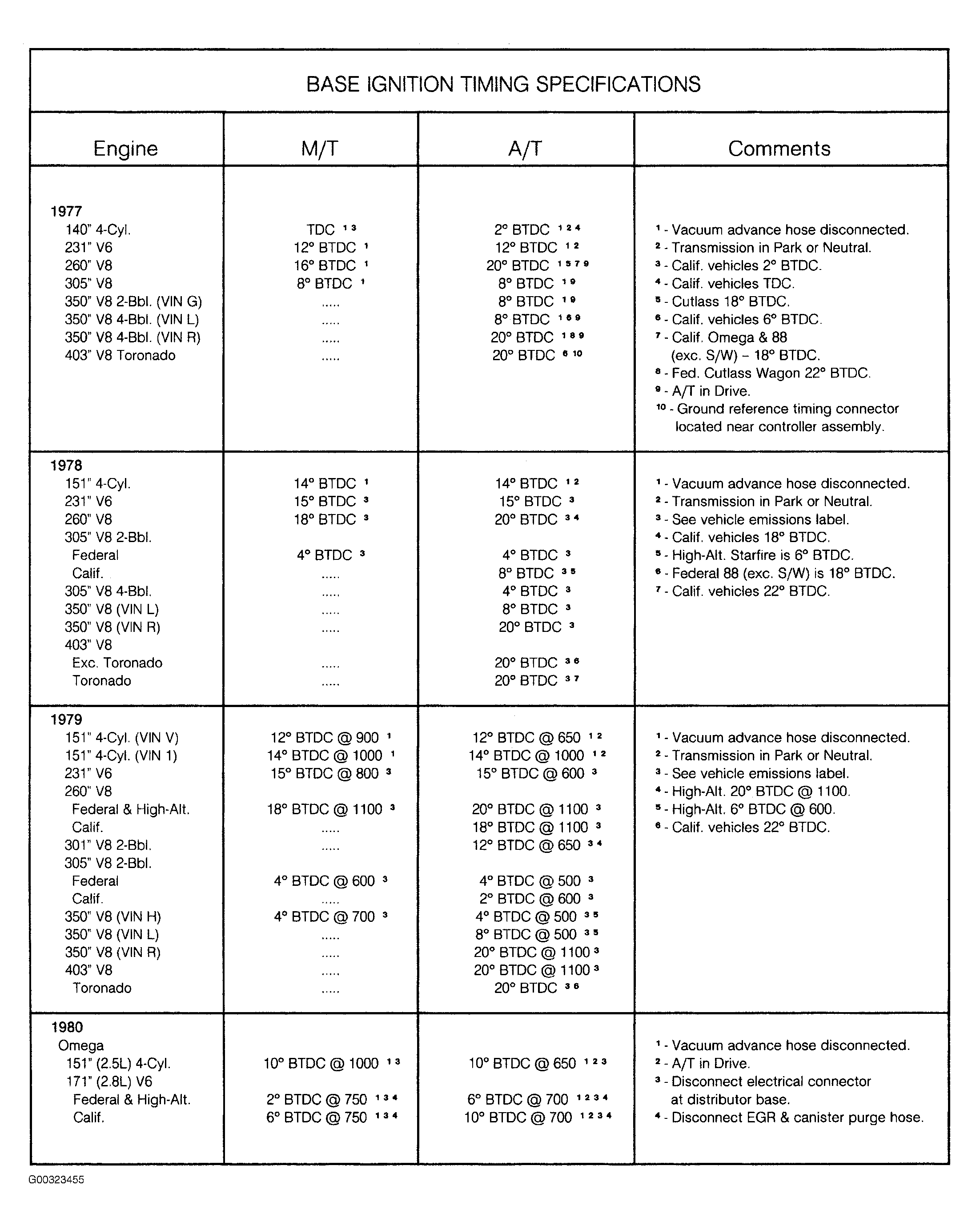

G00323455

Fig 4:

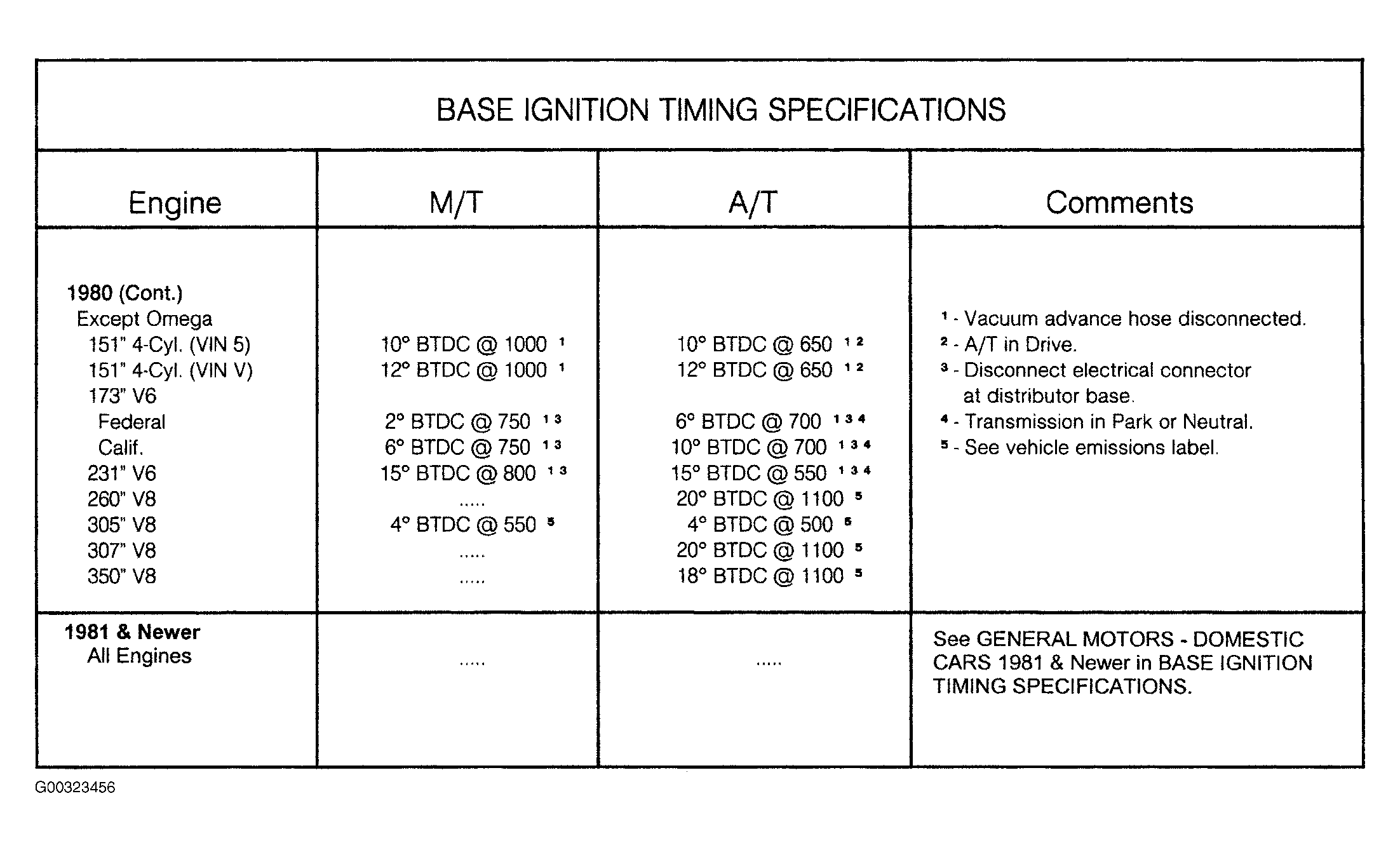

G00323456
