Brake Light Switch: Service and Repair

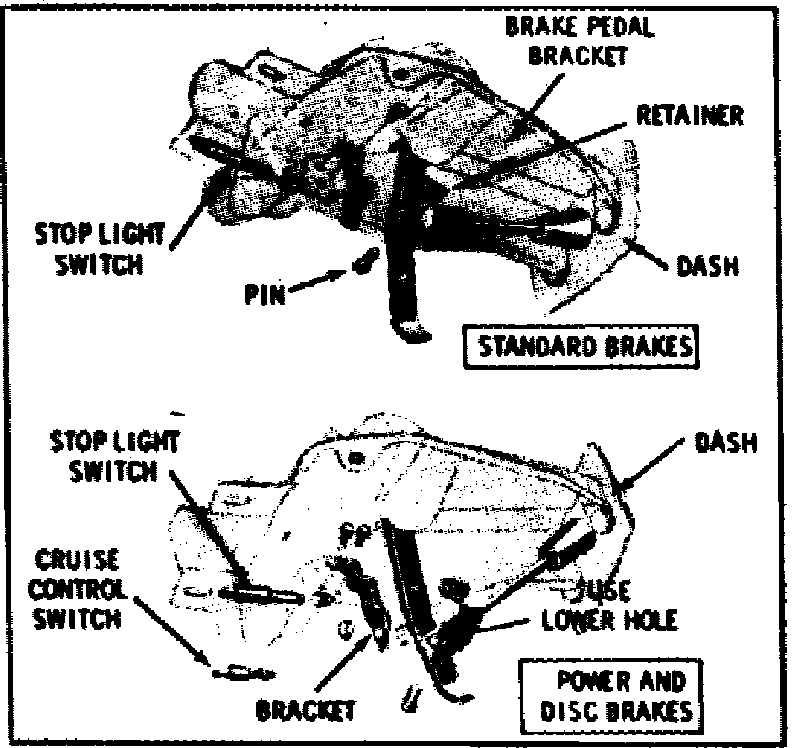

Fig. 4 Brake switch installation.:

The stop light switch is attached to the brake pedal bracket and is actuated by the brake pedal arm, Fig. 4. When installing the switch, insert switch into tubular clip until switch body seats on tube clip. Pull brake pedal rearward until it contacts brake pedal stop. This moves the switch in the tubular clip providing proper adjustment.
