ECM Terminal Identification

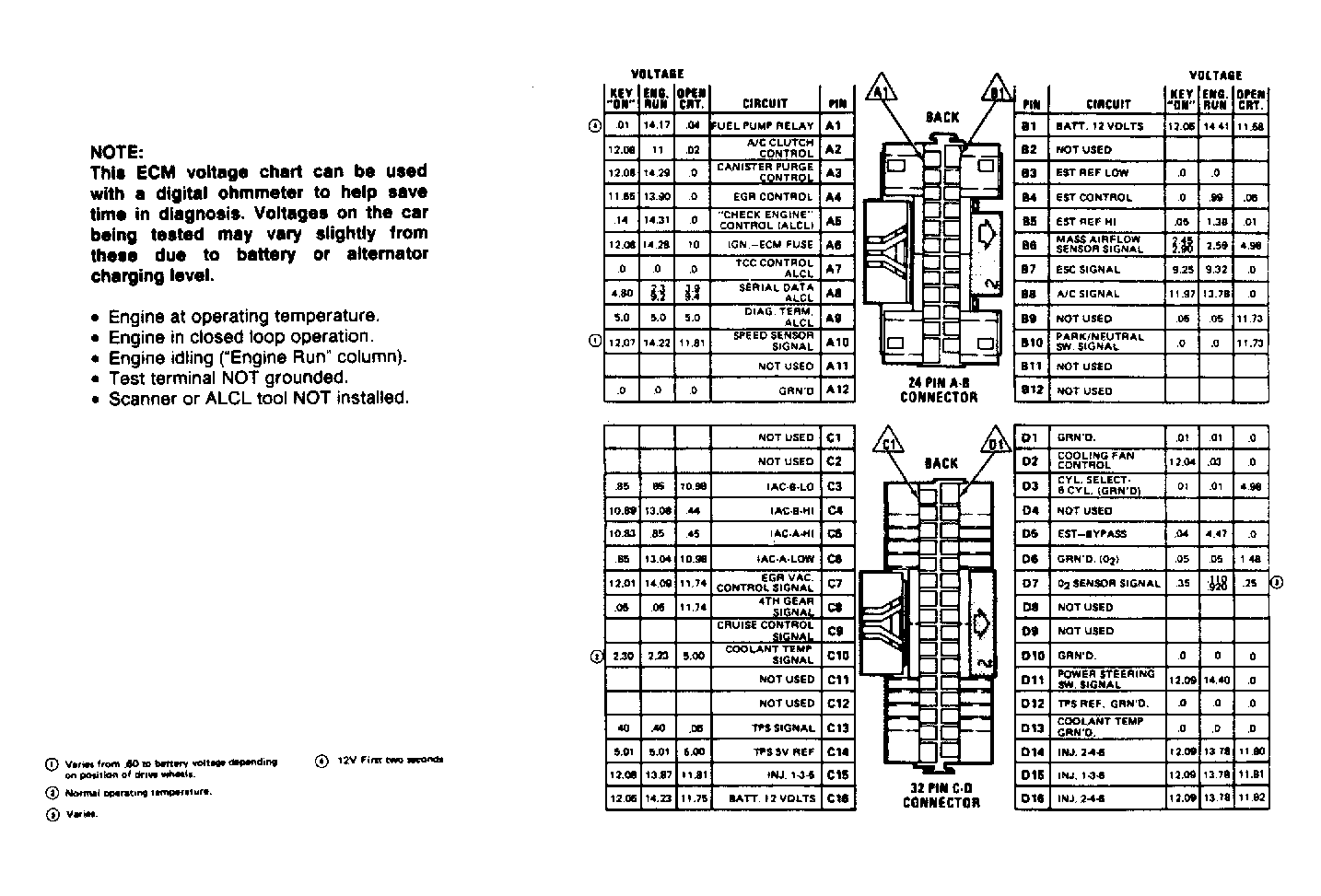

Fig 1: Port Fuel Injection Terminal ID (Non-Turbo)

G1449

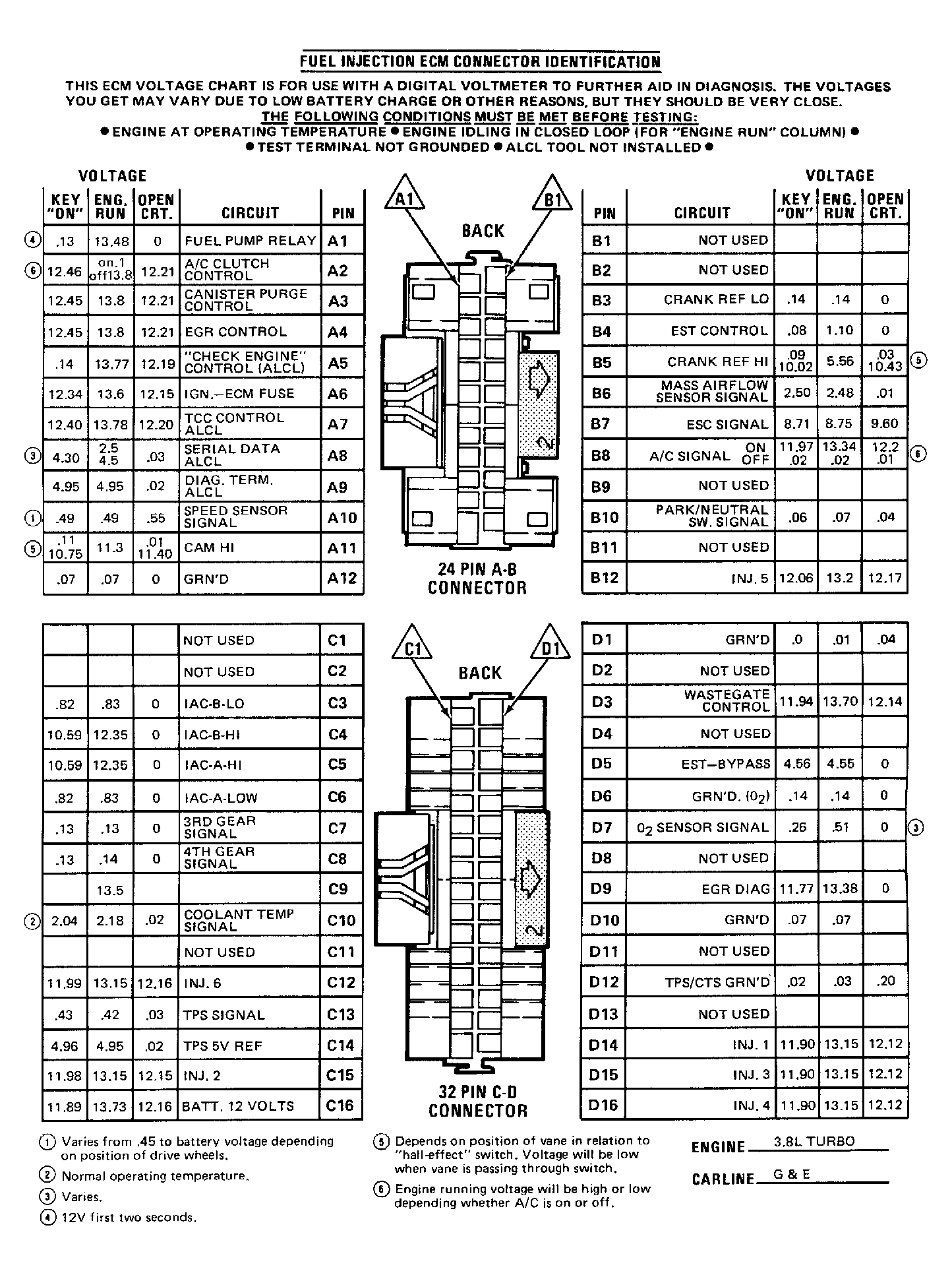

Fig 2: Port Fuel Injection Terminal ID (3.8L Turbo)

G1450
