Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Audio Alarm Module | On fuse block, or above glove box. |

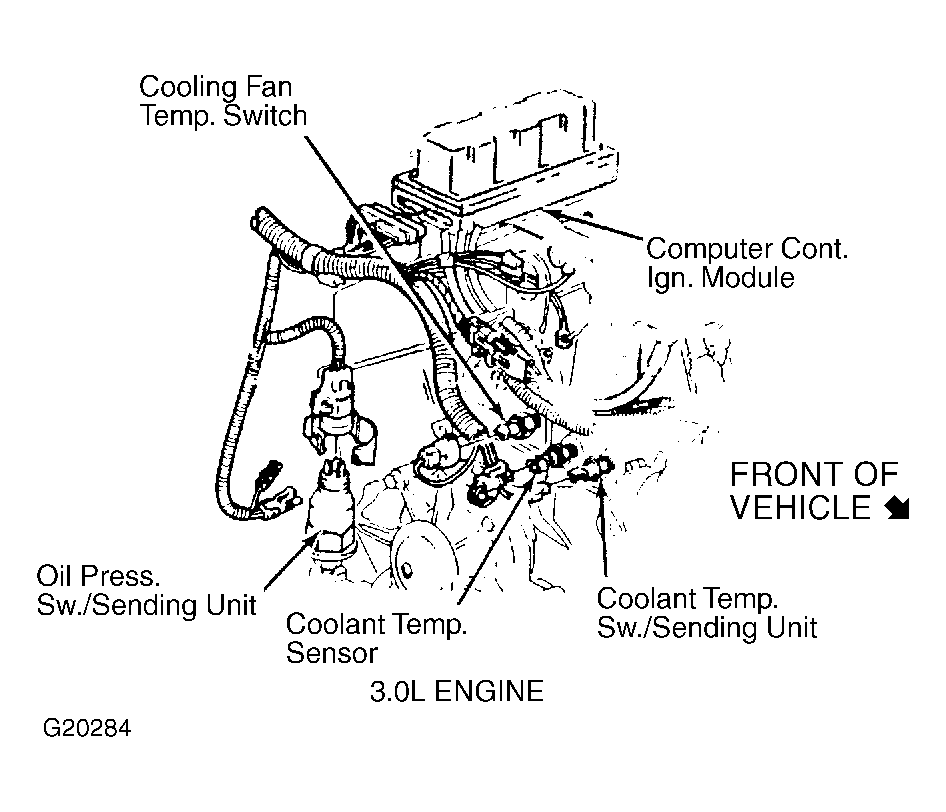

| Computer Cont. Ign. Module (3.0L) | At top right rear of engine. See Figure & 7. |

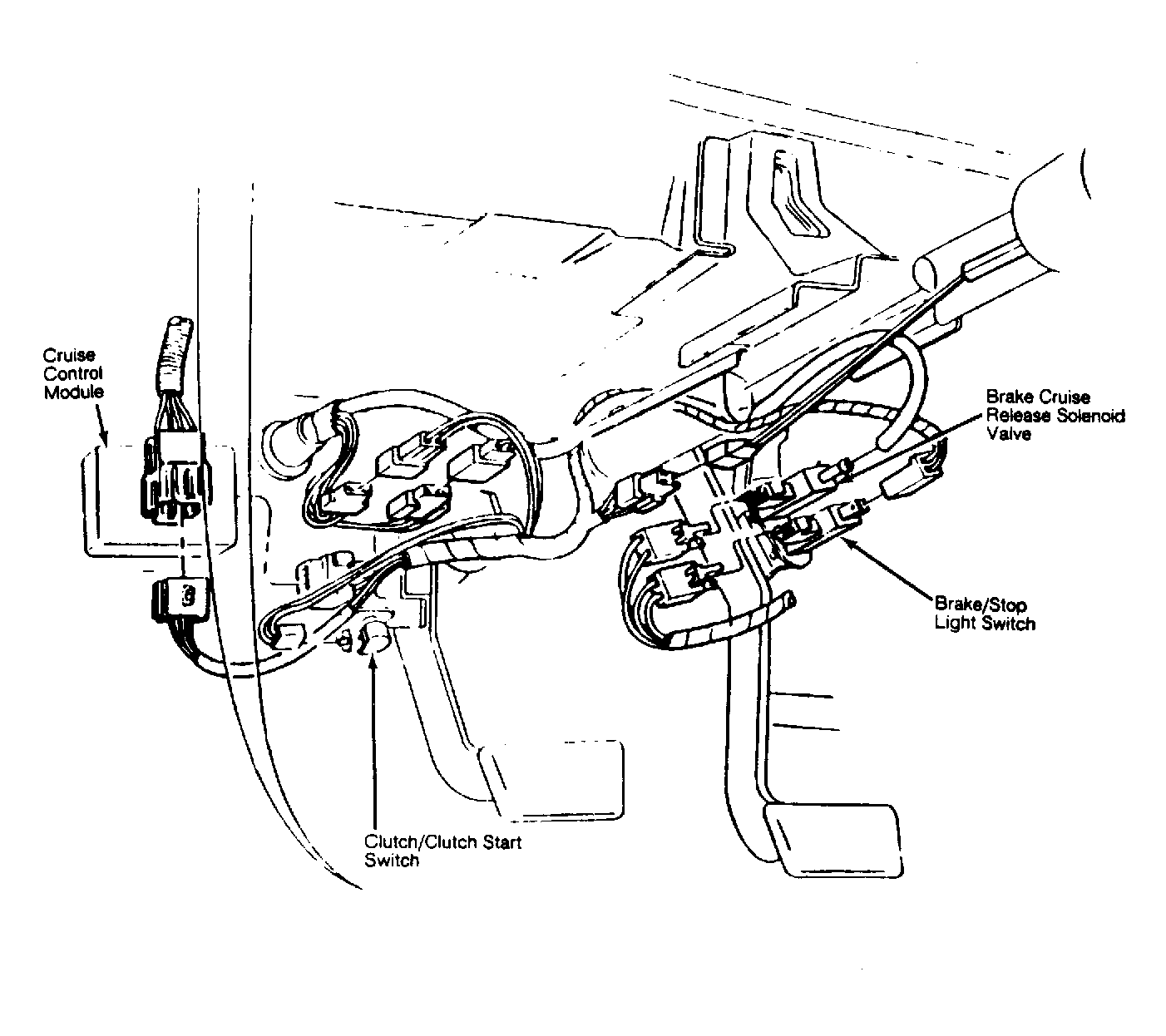

| Cruise Control Module | Under left side of dash, attached to rear of dash. See Figure. |

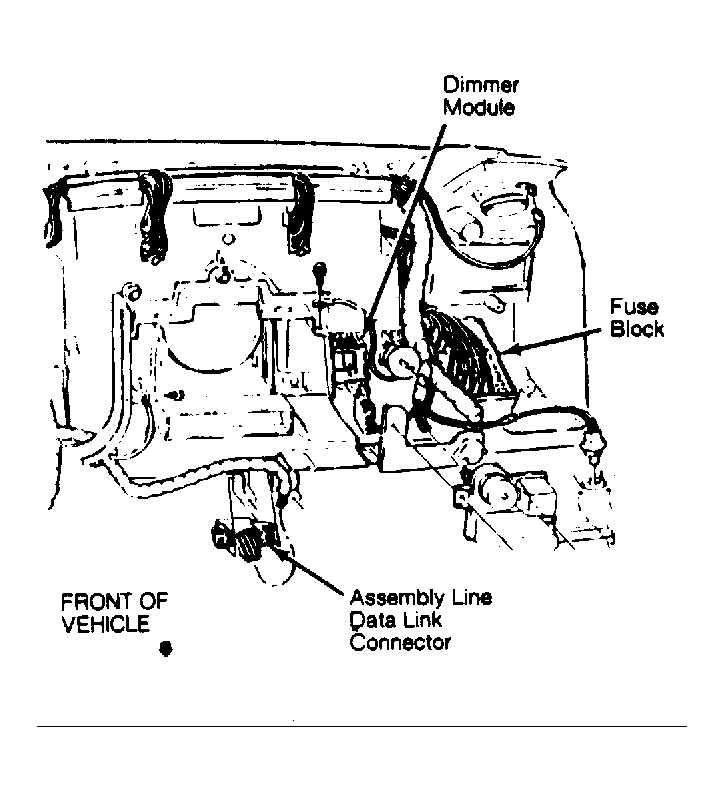

| Dimmer Module (Calais) | Below left side of dash. See Figure. |
| Driver Info. Center Display Module | In center of dash, below radio. See Figure. |
| Driver Info. Ctr. Lights Monitor Mod. | Below center of dash, in front of console. |
| Electronic Control Module (ECM) | Behind right kick panel. See Figure. |

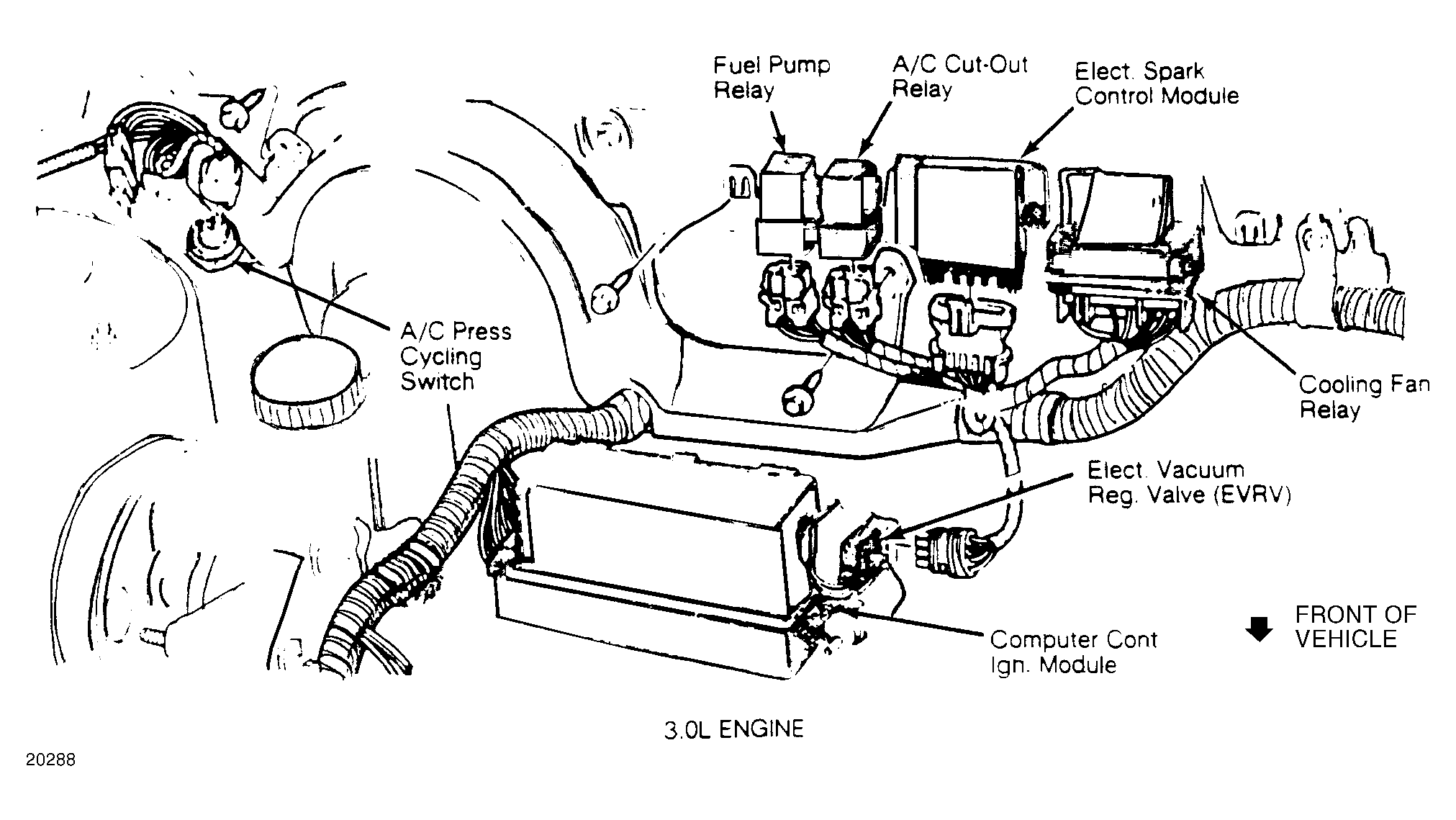

| Elect. Spark Control Module (3.0L) | On relay bracket at center of firewall in engine compartment. See Figure. |
| Remote Dimmer Module | In instrument panel wiring harness, to right of radio. |

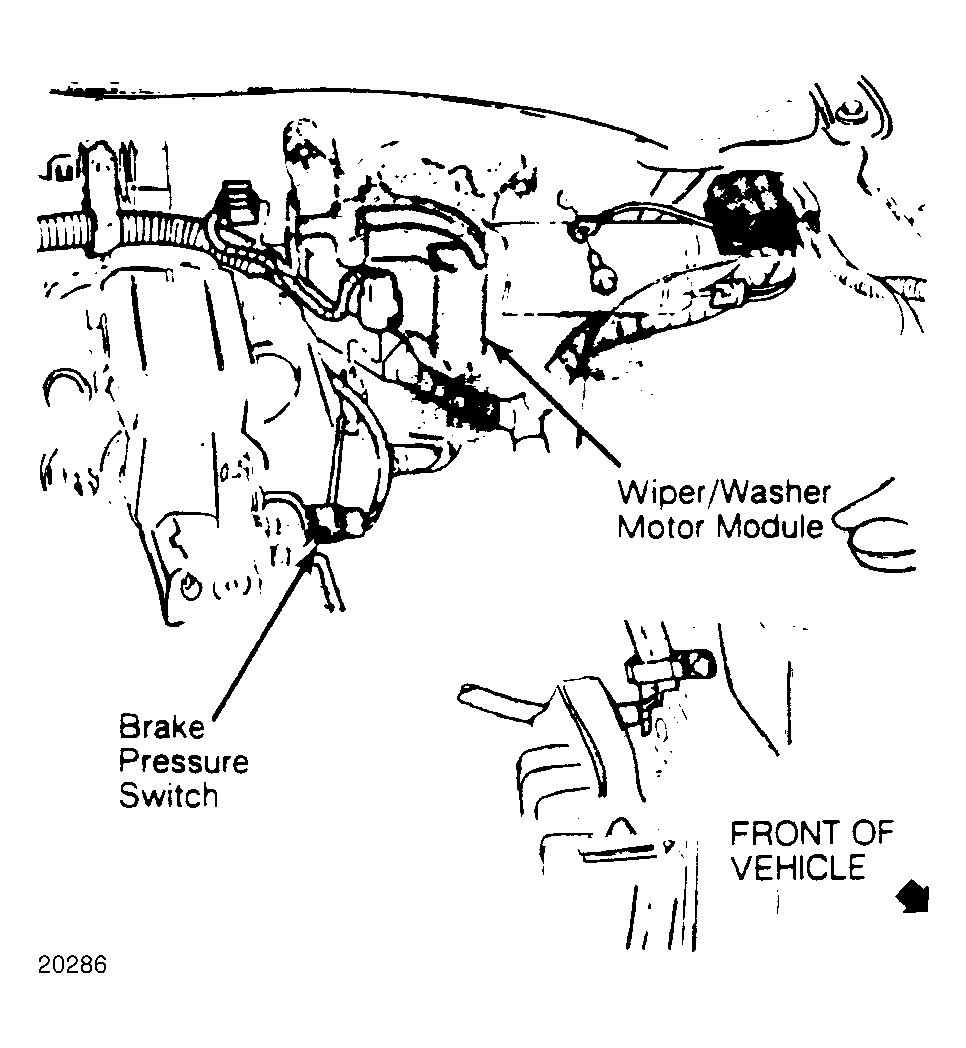

| Wiper/Washer Motor Module | At left rear corner of engine compartment, to right of shock tower. See Figure. |
