Starting and Charging: Specifications

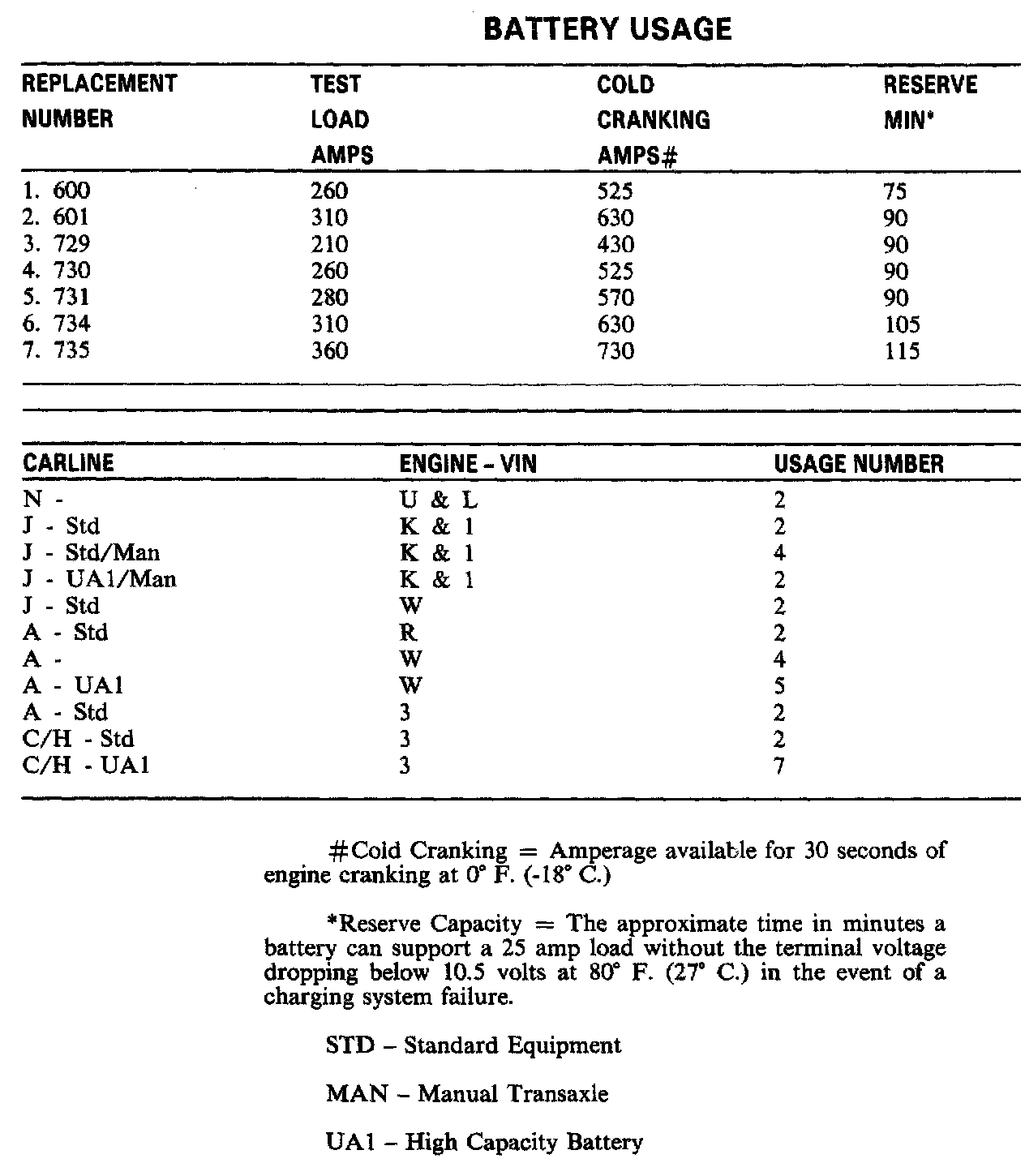

BATTERY SPECIFICATIONS

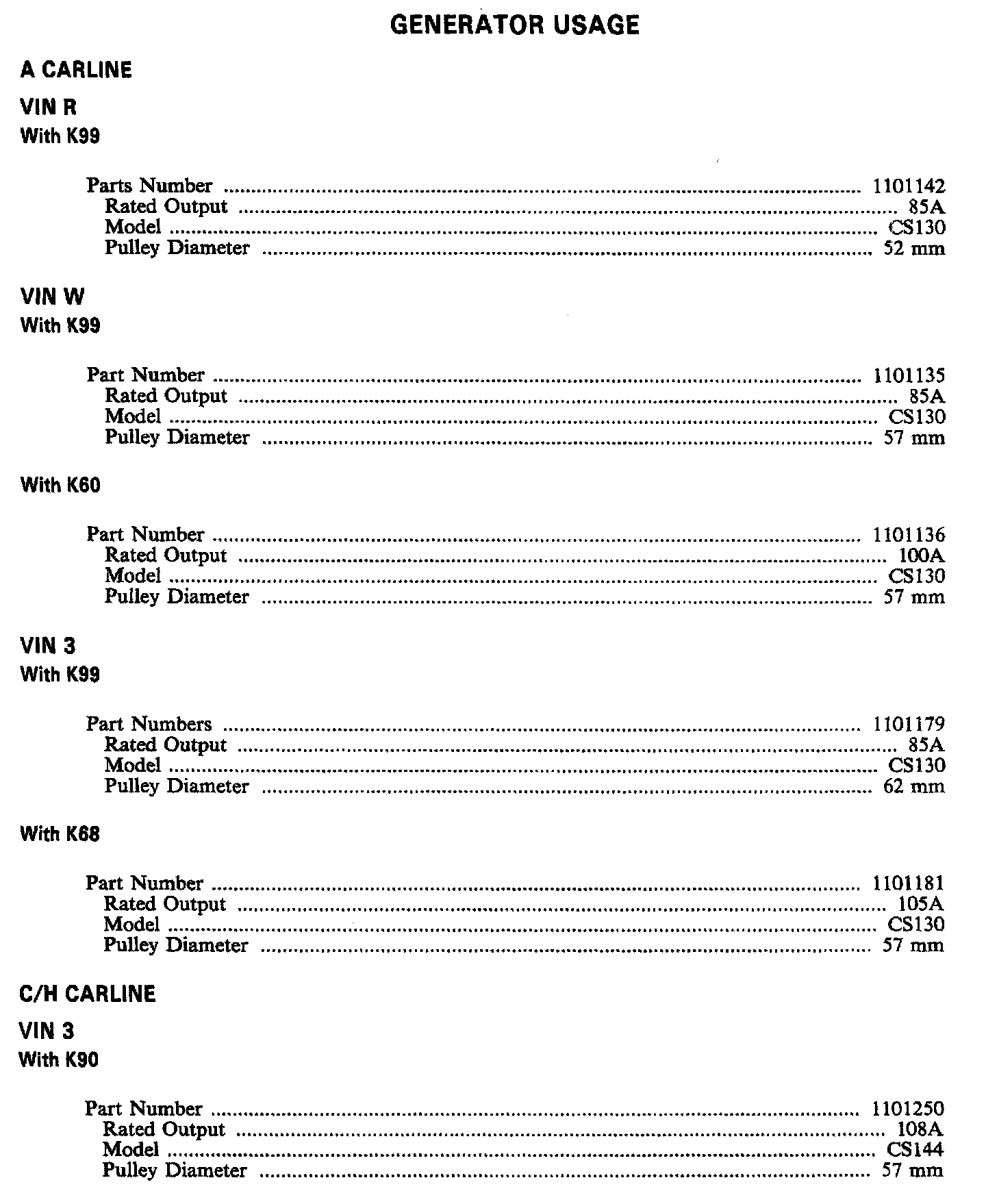

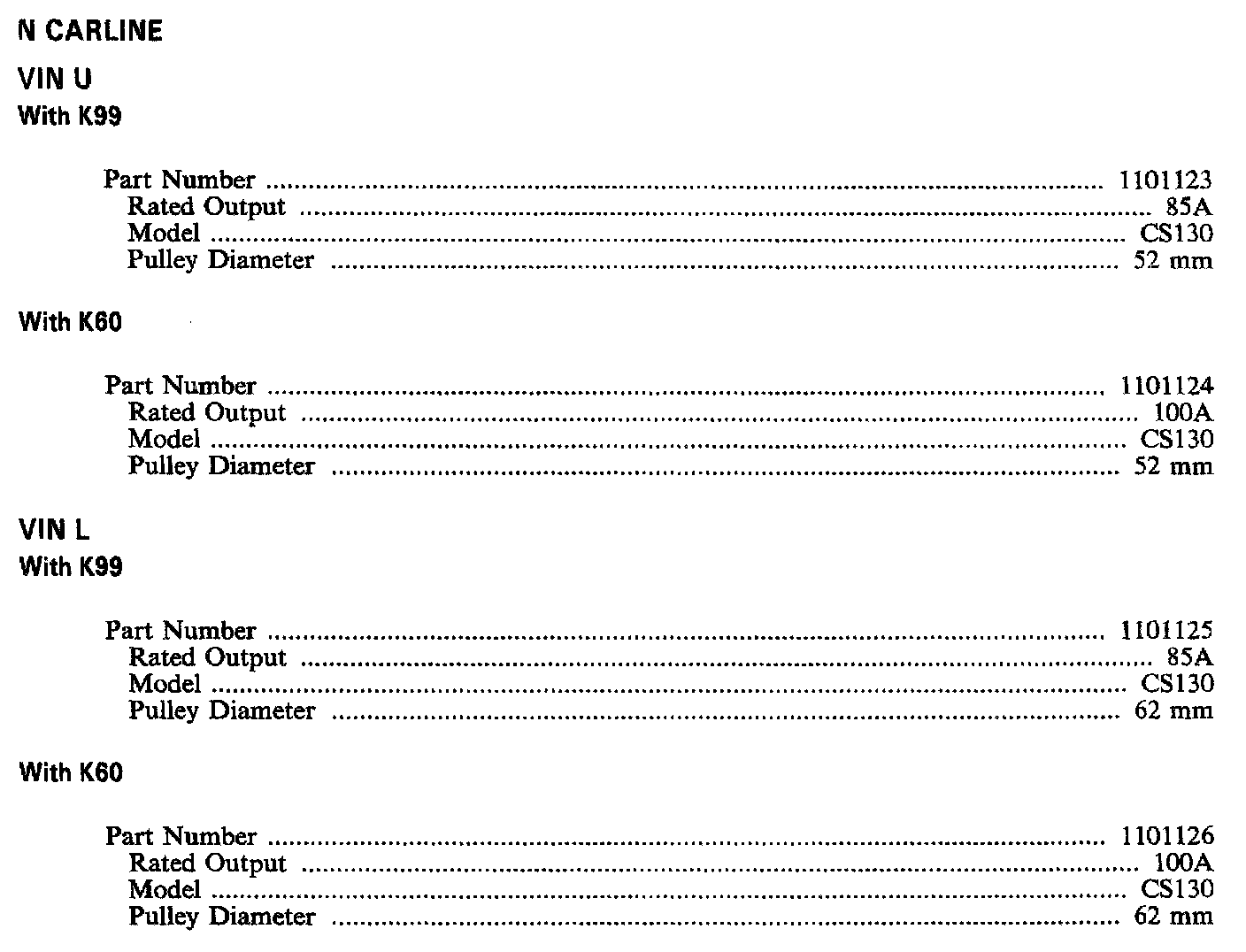

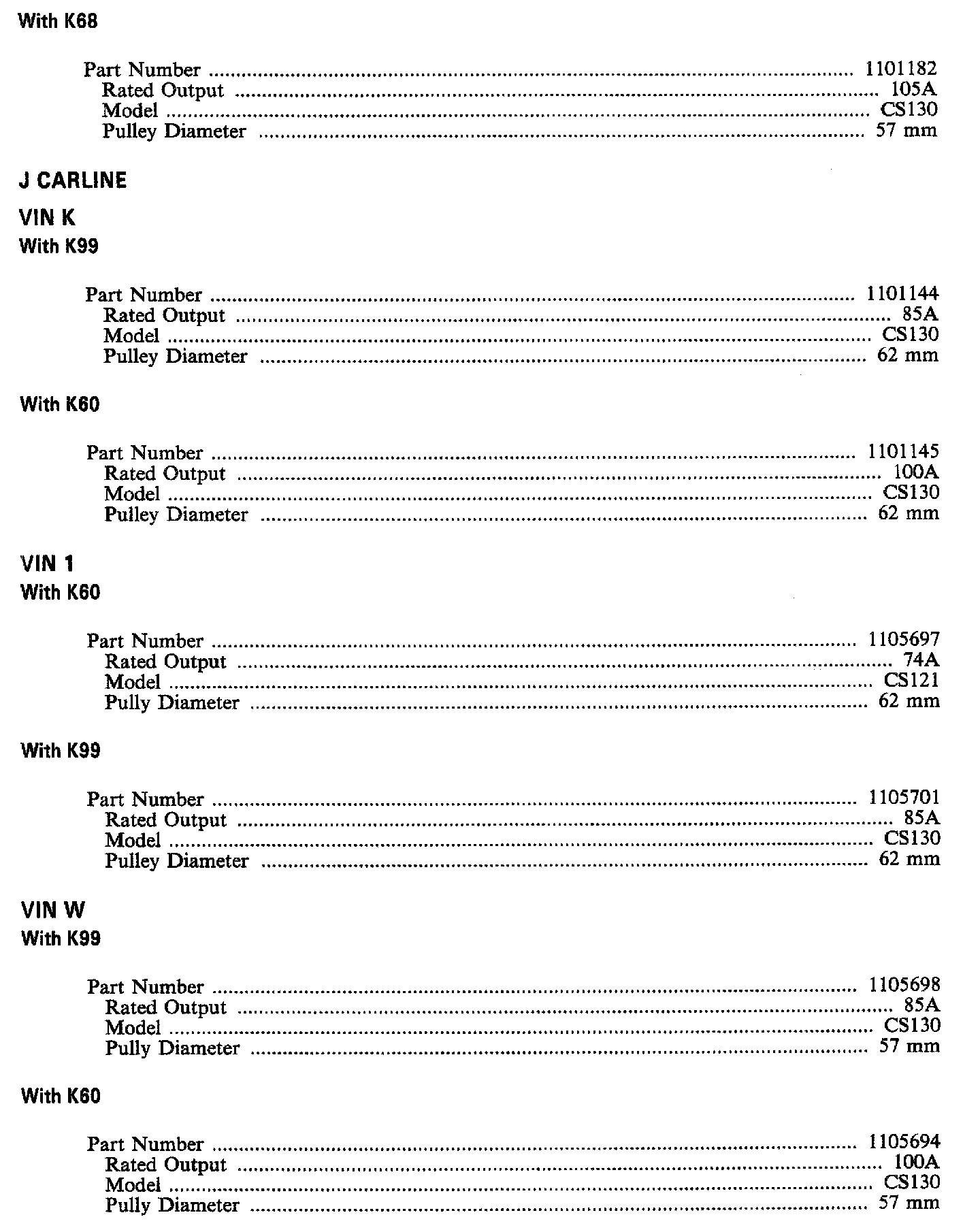

ALTERNATOR SPECIFICATIONS

I Of III:





II Of III:





III Of III:

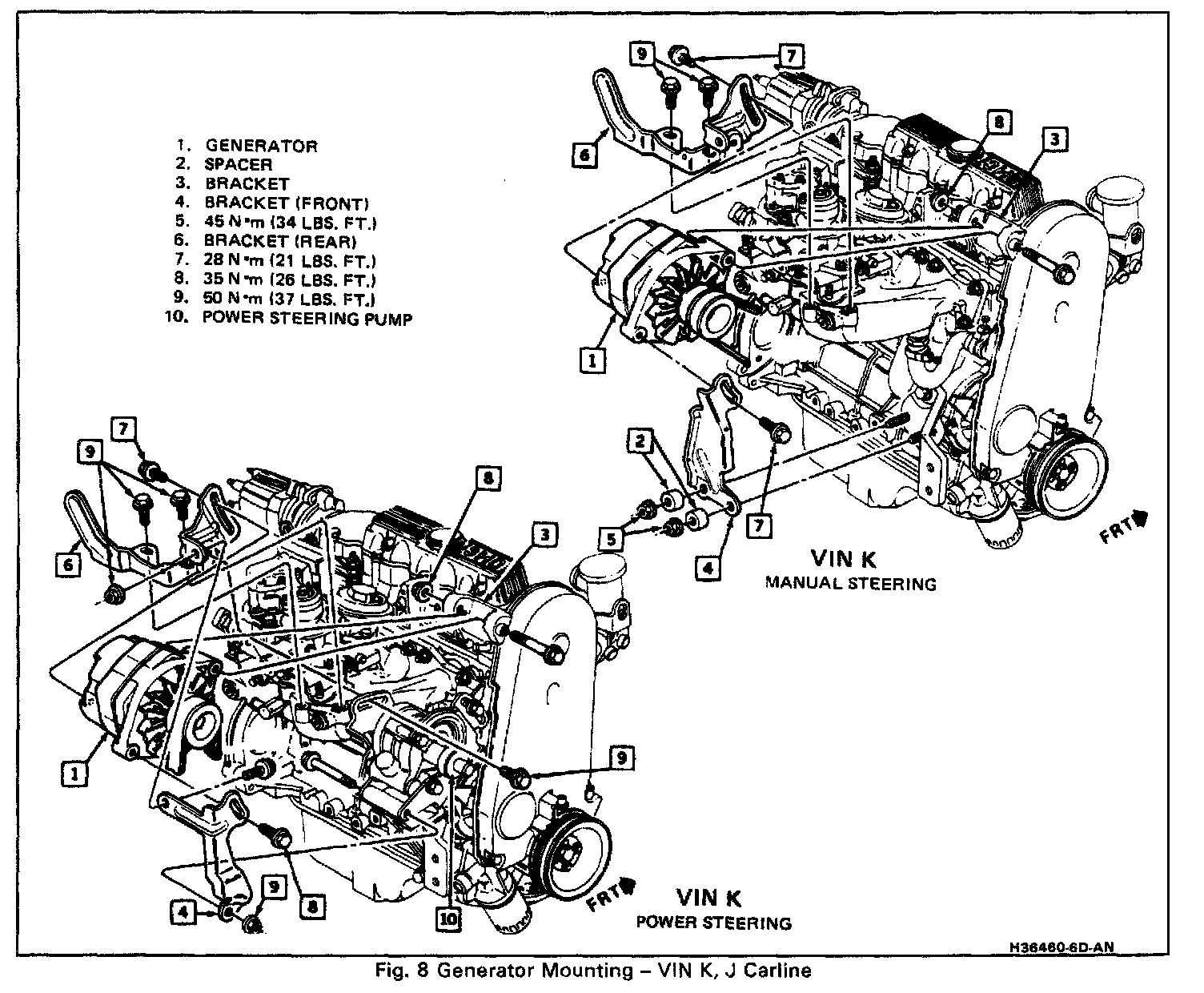

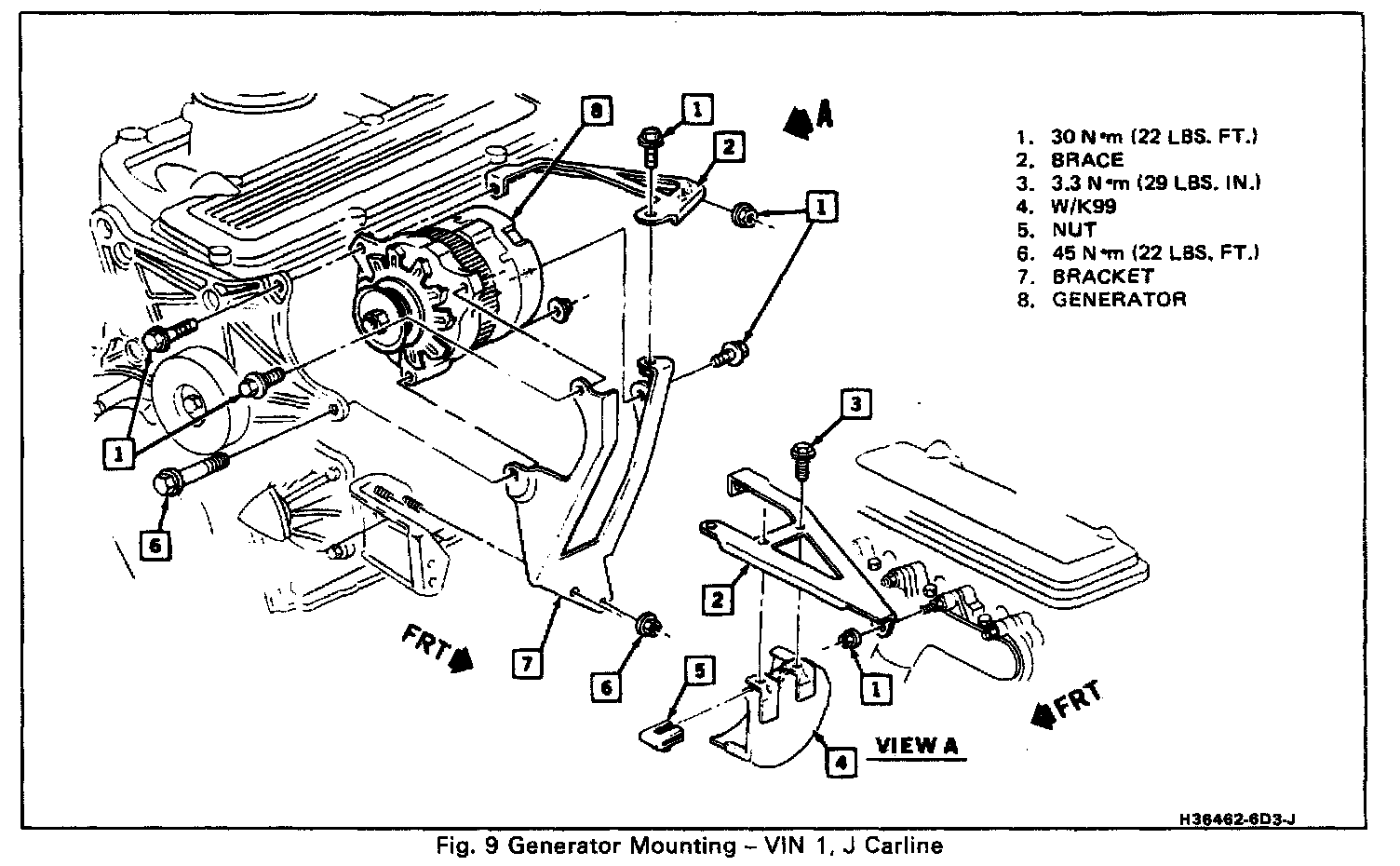

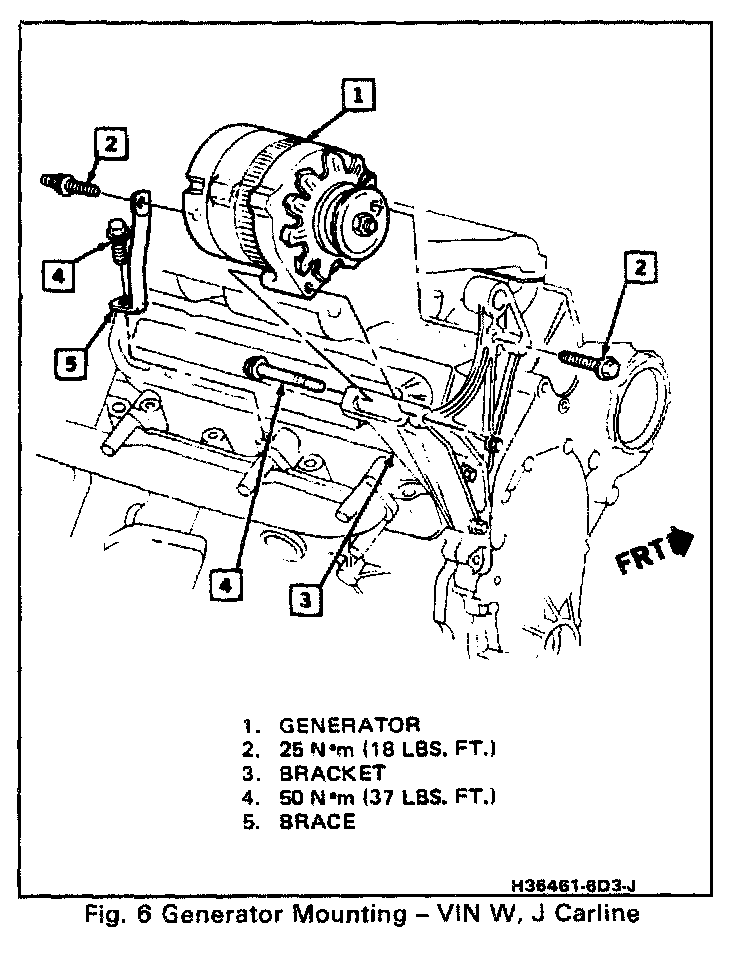

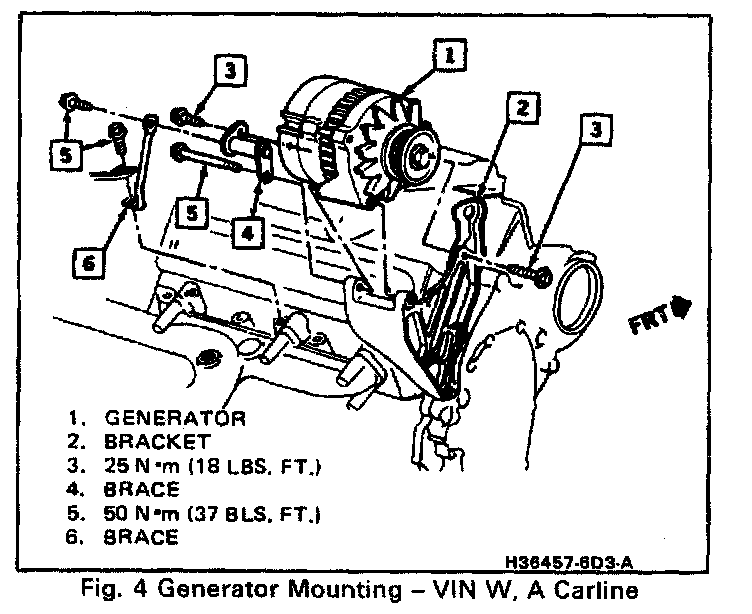

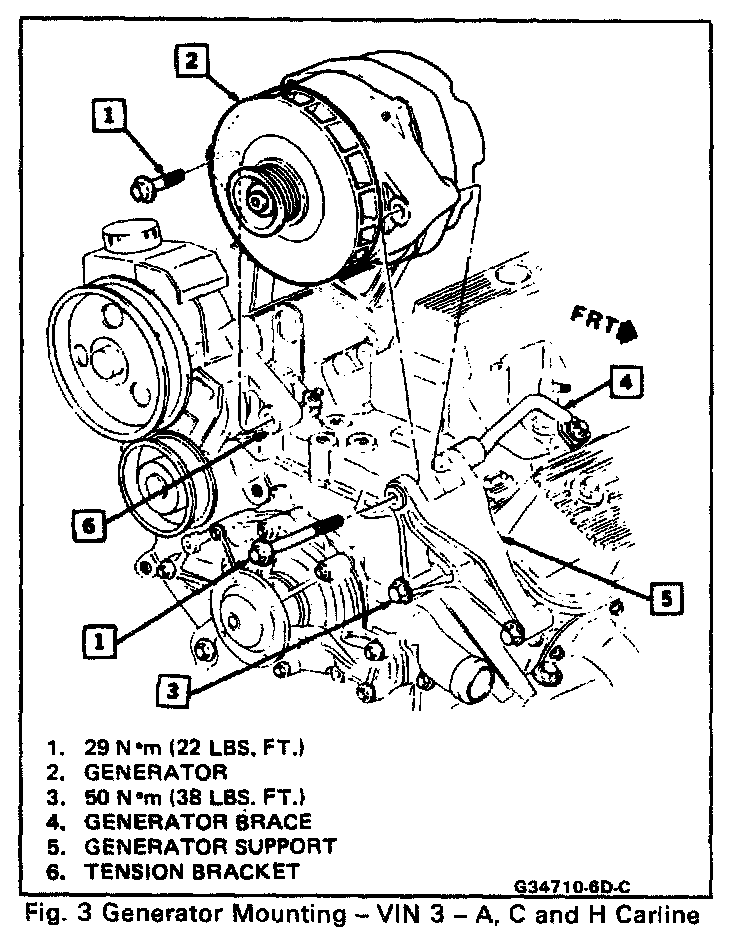

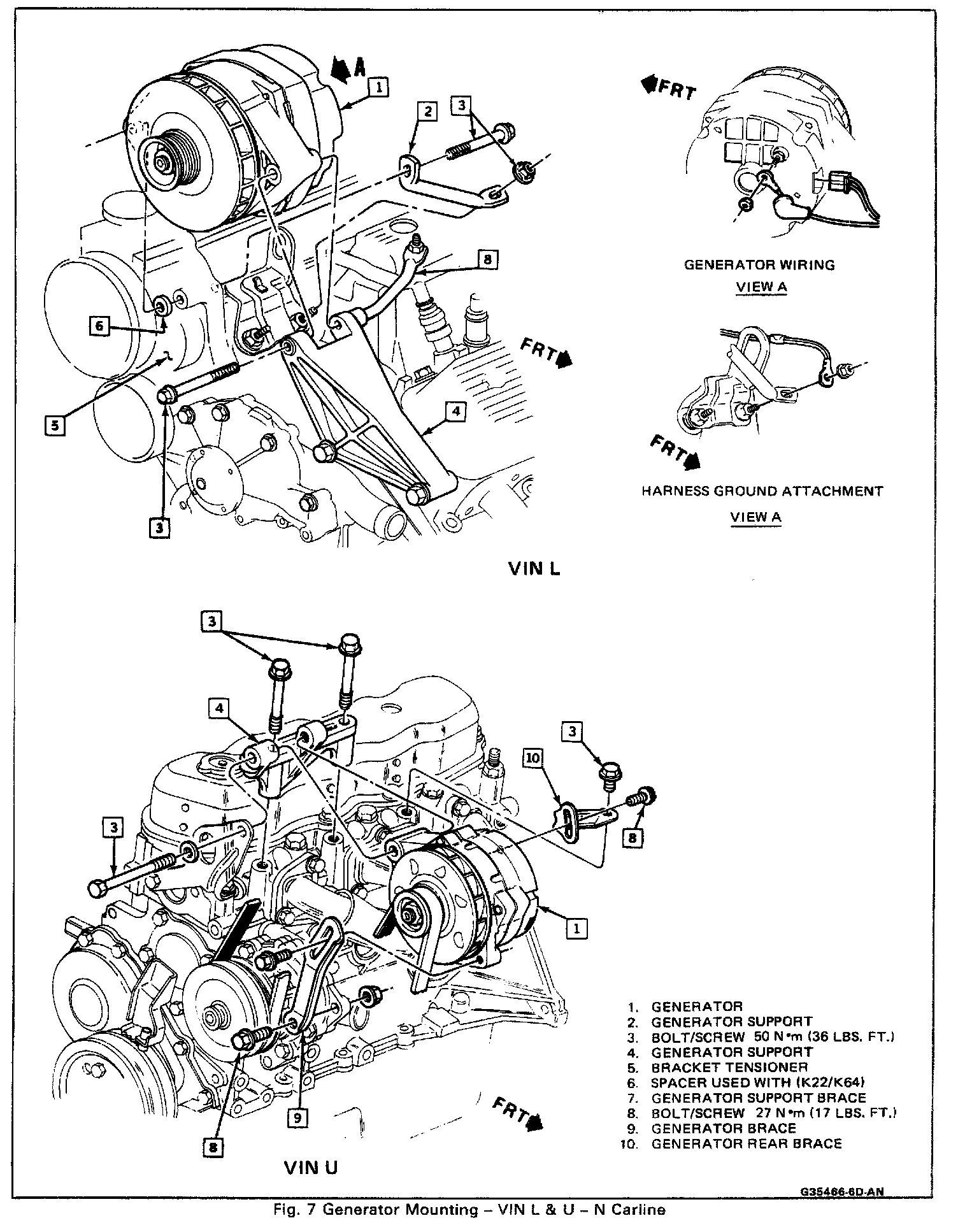

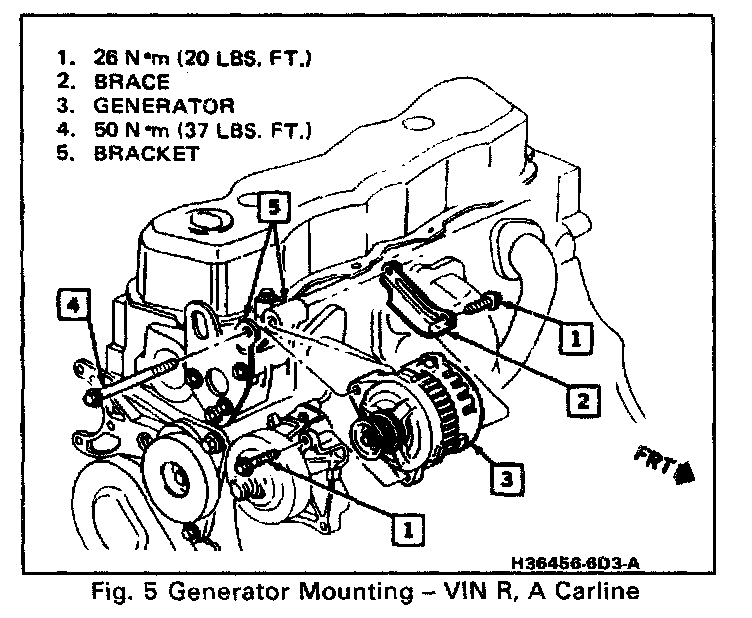

ALTERNATOR TORQUE SPECIFICATIONS

I Of VII:





II Of VII:





III Of VII:





IV Of VII:





V Of VII:





VI Of VII:





VII Of VII:

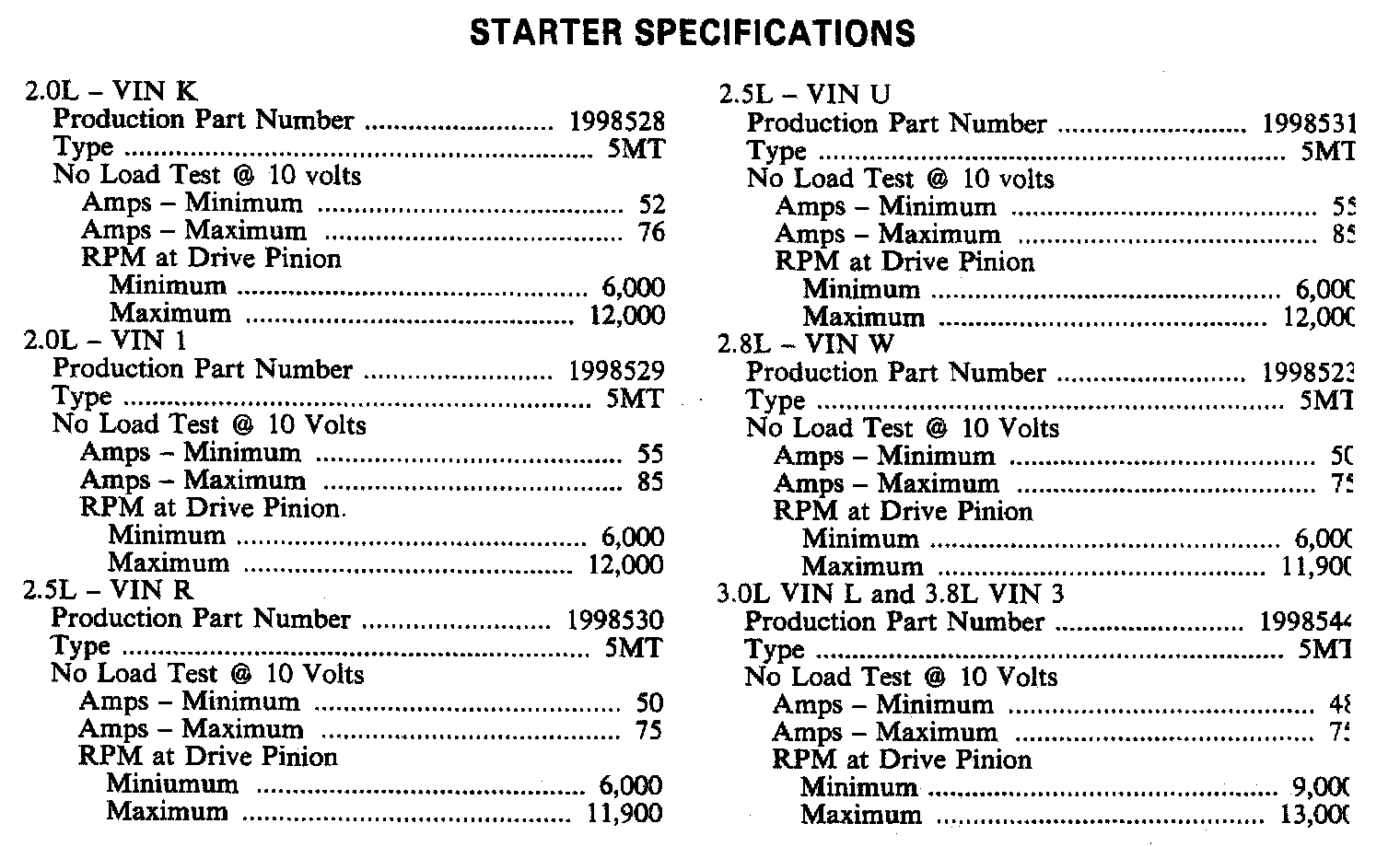

STARTER SPECIFICATIONS

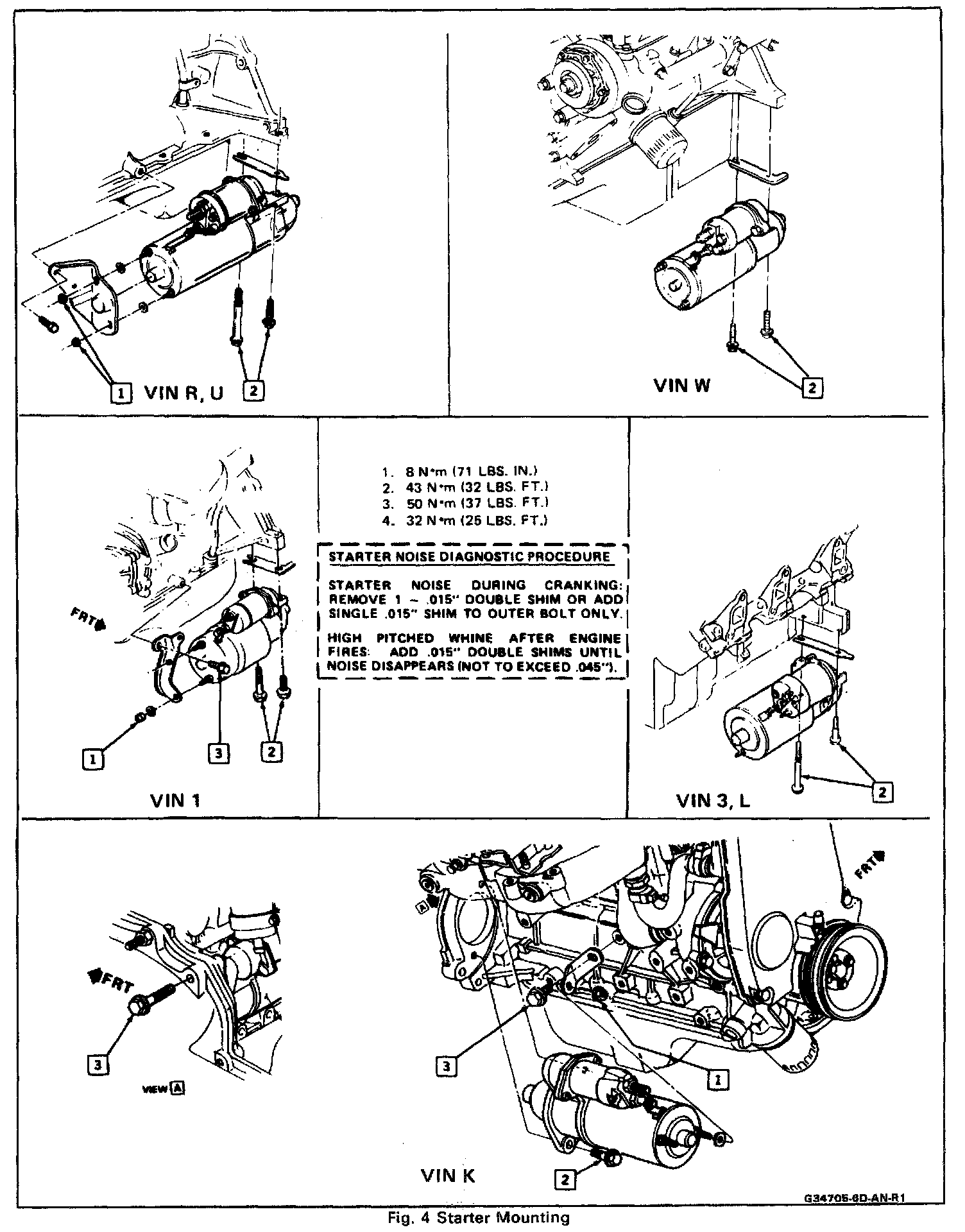

STARTER TORQUE SPECIFICATIONS
