Computer Controlled Coil Ignition Module

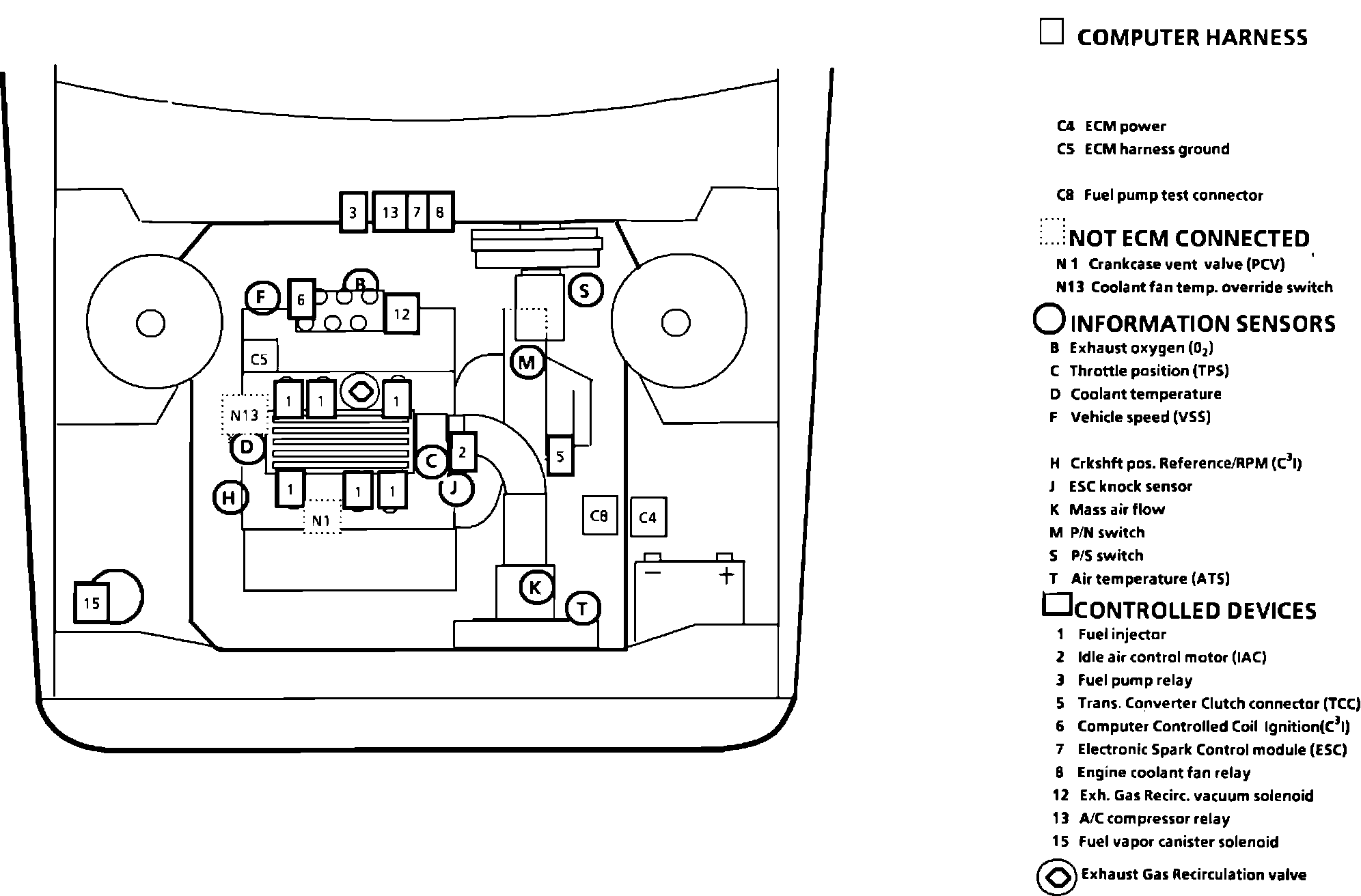

Underhood Component Locations.:

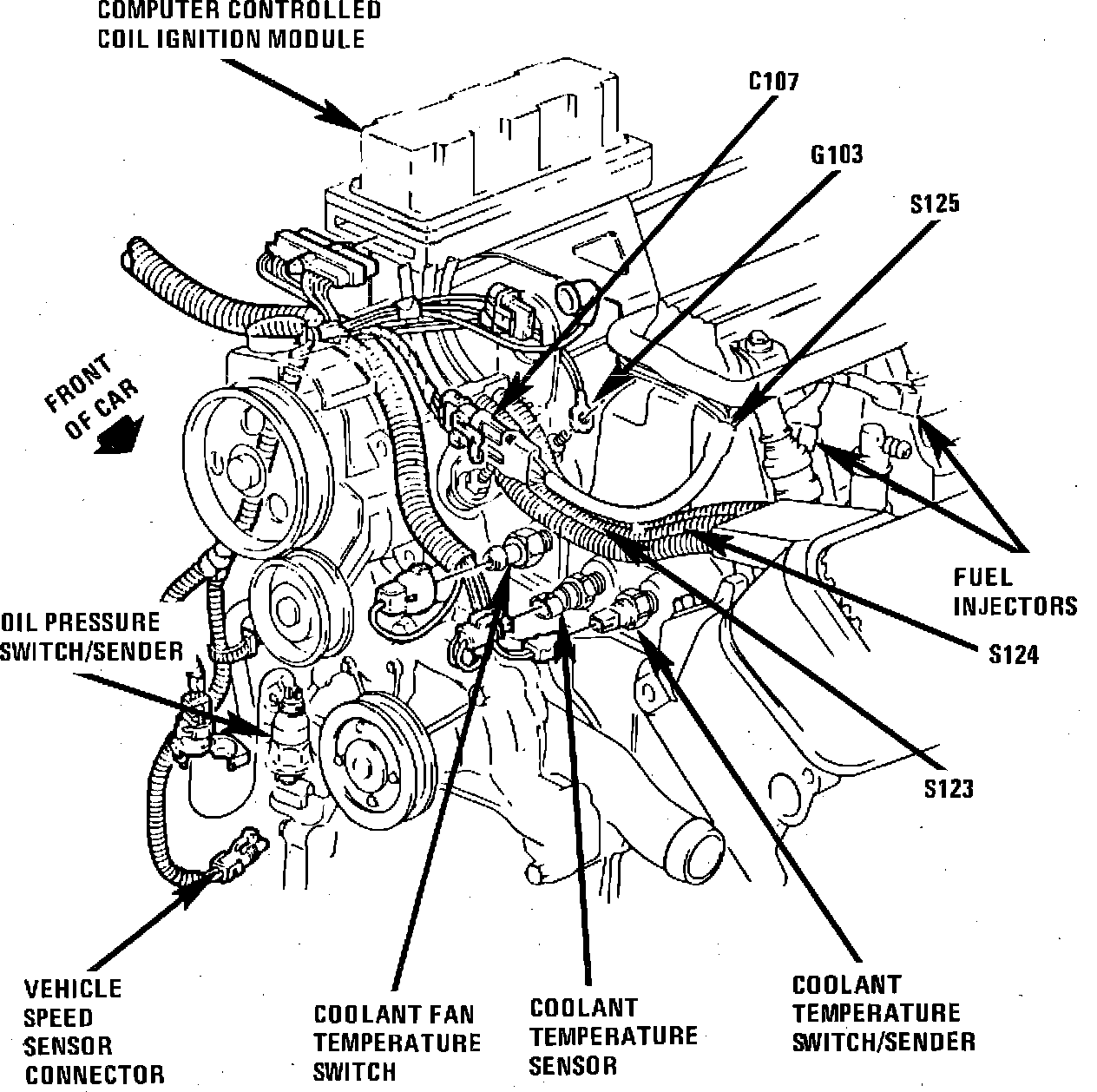

Top RH Side Of Engine.:

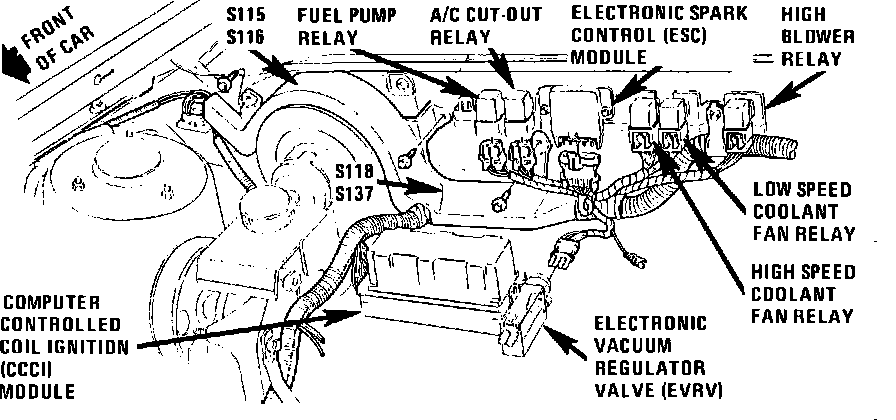

RH Front Of Dash.:
Top RH Rear Of Engine
Applicable to: 1987 (V6-181/3.0L)
