Note On Intermittents:

If an intermittent Code B115 is being set, manipulate the related wiring while observing BCM data BD32. If the failure is induced, the reading will jump from its normal value to a reading outside the range of -34° to 209°F.

If the value displayed by BD32 is not reasonably close to a corresponding thermometer reading, check for poor terminal contact or replace sensor.

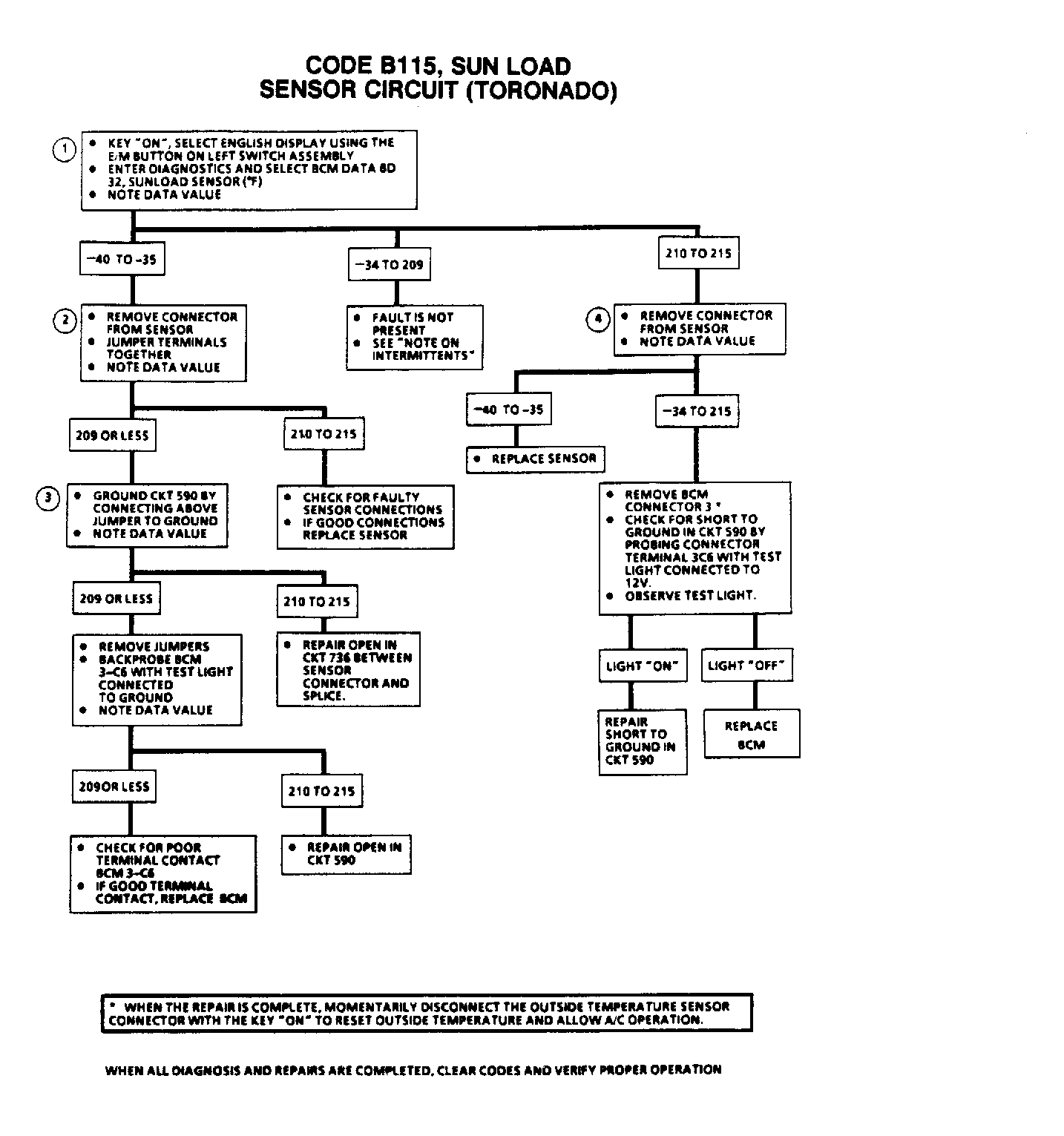

Fig 1: Code B115, Sun Load Sensor Circuit (Toronado)

Fig 2: Code B115, Schematic
